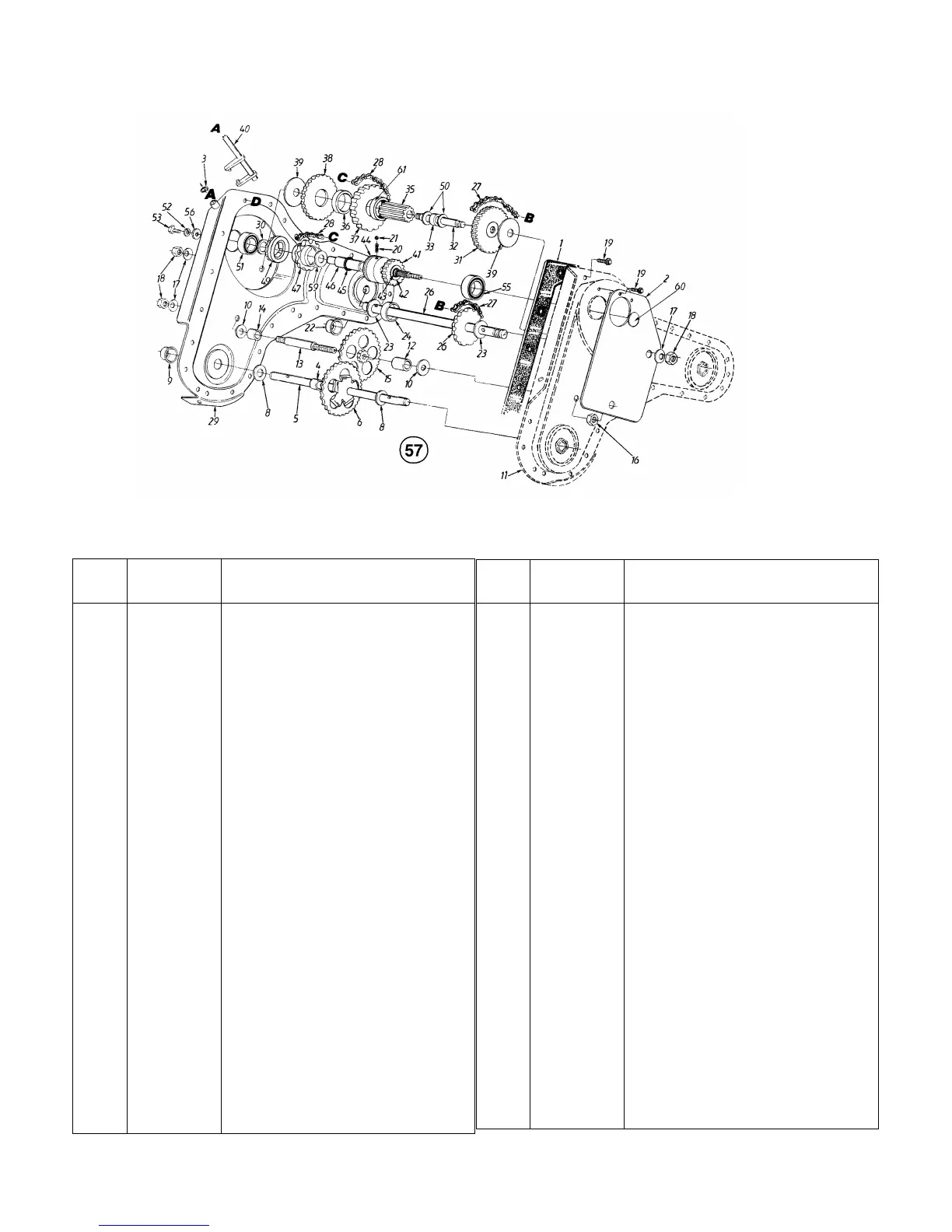

White 414 - Page 17

17
Models 414
REF.
NO. PART NO. DESCRIPTION
1 721-0295 Chain Case Gasket
2 786-0086 Reinforcement Plate
3 716-0865 Snap Ring
4 750-0938 Spacer .735" I.D. x .886" O.D.
5 611-0058 Wheel Shaft
6 717-1458 Spur Gear 46T
8 736-0351 Fl-Wash. .76" I.D. x 1.5" O.D.
9 721-0379 Shaft Seal
10 736-0518 Thr.Wash..445 I.D.x1.92 O.D.x .060
11 686-0039 Gear Case Ass’y. Half—L.H.
12 750-0935 Spacer .635" I.D. x 1" O.D. x .78
13 738-0885 Jack Shaft 2.06" Lg.
14 750-0936 Spacer .635" I.D. x 1" O.D. x .37"
15 617-0004 Gear Idler Ass’y.
16 712-3067 Hex Patch L-Nut 7/16-20 Thd.
17 736-0407 Bell-Wash. .45" I.D. x 1" O.D.
18 712-0378 Hex Nut 7/16-20 Thd.
19 710-0896 Hex Washer TT-Tap Scr. 1/4-20 x .5"
20 732-0863 Spring Detent
21 741-0862 Ball Detent
22 721-0378 Shaft Seal
23 736-0163 Thrust Wash. 1.03" I.D. x 1.62"
24 750-0570 Spacer 1" I.D. x 2" O.D. x .5" Thk.
26 611-0021 Tine Shaft Ass’y.
27 713-0226 Chain #50 5/8" Pitch x 52 Links
28 713-0233 Chain—#41 1/2" Pitch x 30 Links
29 686-0038 Gear Case Ass’y. Half—R.H.
30 736-0541 Fl-Wash. 7/16" I.D. x 1-3/8" O.D.
31 617-0002 Gear and Sprocket Ass’y.
32 738-0884 Jack Shaft 5" Lg.
33 750-0931 Spacer .636" I.D. x .86" O.D.
35 717-1411 Spur Gear 10T
36 750-0930 Spacer 1.5" I.D. x 1.76" O.D.
37 713-0436 Sprocket—#41 Chain
38 717-1405 Reverse Gear 46T
39 736-0518 Thrust Wash. .445" I.D. x 1.92"
40 618-0245B Shifter Ass’y.
41 717-1409 Spur Gear 17T
42 736-0442 Fl-Wash. .69" I.D. x 1.06" O.D.
43 732-0614 Wire Ring
44 718-0234 Clutch Collar
45 716-0235 Retaining Ring .875" Shaft
46 711-1087 Drive Shaft
47 713-0435 Sprocket 11T
49 717-1451A Spur Gear 16T
50 736-0336 Fl-Wash. 5/8" I.D. x 1" O.D.
51 741-0124 Ball Bearing .669" I.D.
52 736-0329 L-Wash. 1/4" I.D.
53 710-0258 Hex Bolt 1/4-20 x .62" Lg.
55 741-0563 Ball Bearing
56 736-0512 Fl-Wash. .281" I.D. x .875" O.D.
57 686-0094 Gear Case Ass’y. Comp.
58 718-0237 Key—Drive Shaft (Not Shown)
59 736-0265 Fl-Wash. .88" I.D. x 1.5" O.D.
60 726-0331 Button Plug
61 750-0987 Spacer 1.52" I.D.
— 737-0300 Grease (40 oz. Req’d.)
REF.
NO. PART NO. DESCRIPTION
