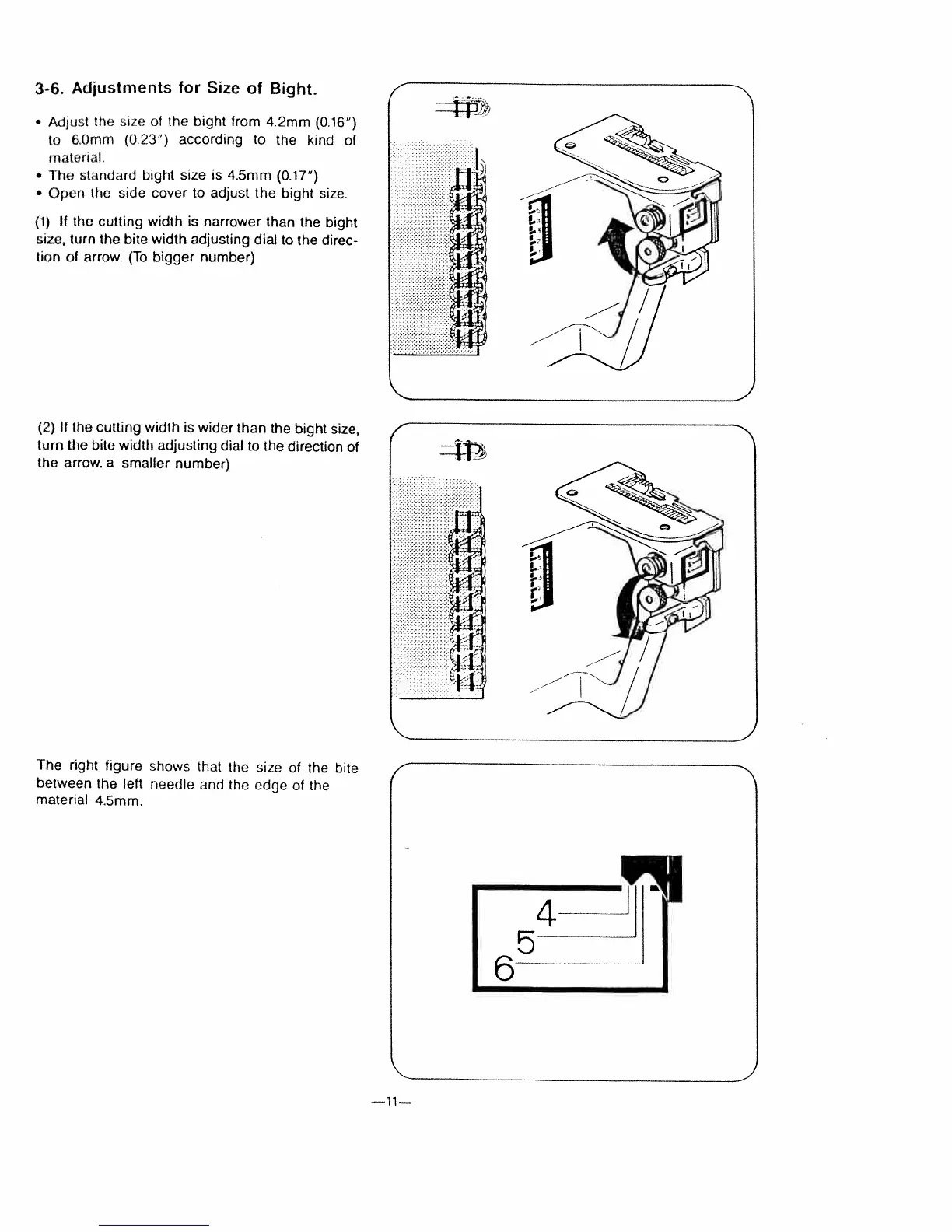

3-6.
Adjustments for
Size
of
Bight.
• AdjuM
the size of the
bight
from
4.2mm
(0.16”)
to
60mm
(023”) according
to
the kind
of
material.
I
• The
standard
bight size is
4.5mm
(0.17”)
IL: ..
• Open
the
side cover to adjust
the bight
size. -
(1) If the cutting width is narrower
than
the bight
size, turn
the
bite
width adjusting dial
to the direc-
.R
tion of
arrow. (To bigger
number) —
_-- //
4k
(2)
If the cutting
width is
wider
than
the bight
size,
turn the bite width
adjusting
dial
to the
direction
of
the arrow. a
smaller
number)
The right
figure
shows
that
the size
of the bite
7
between
the left
needle and
the edge
of the
material
4.5mm.
