White R-86 - Maintenance; Carburetor Adjustment

2. Lower the deck to its lowest position. Place the
blade engagement lever in the disengaged
position.

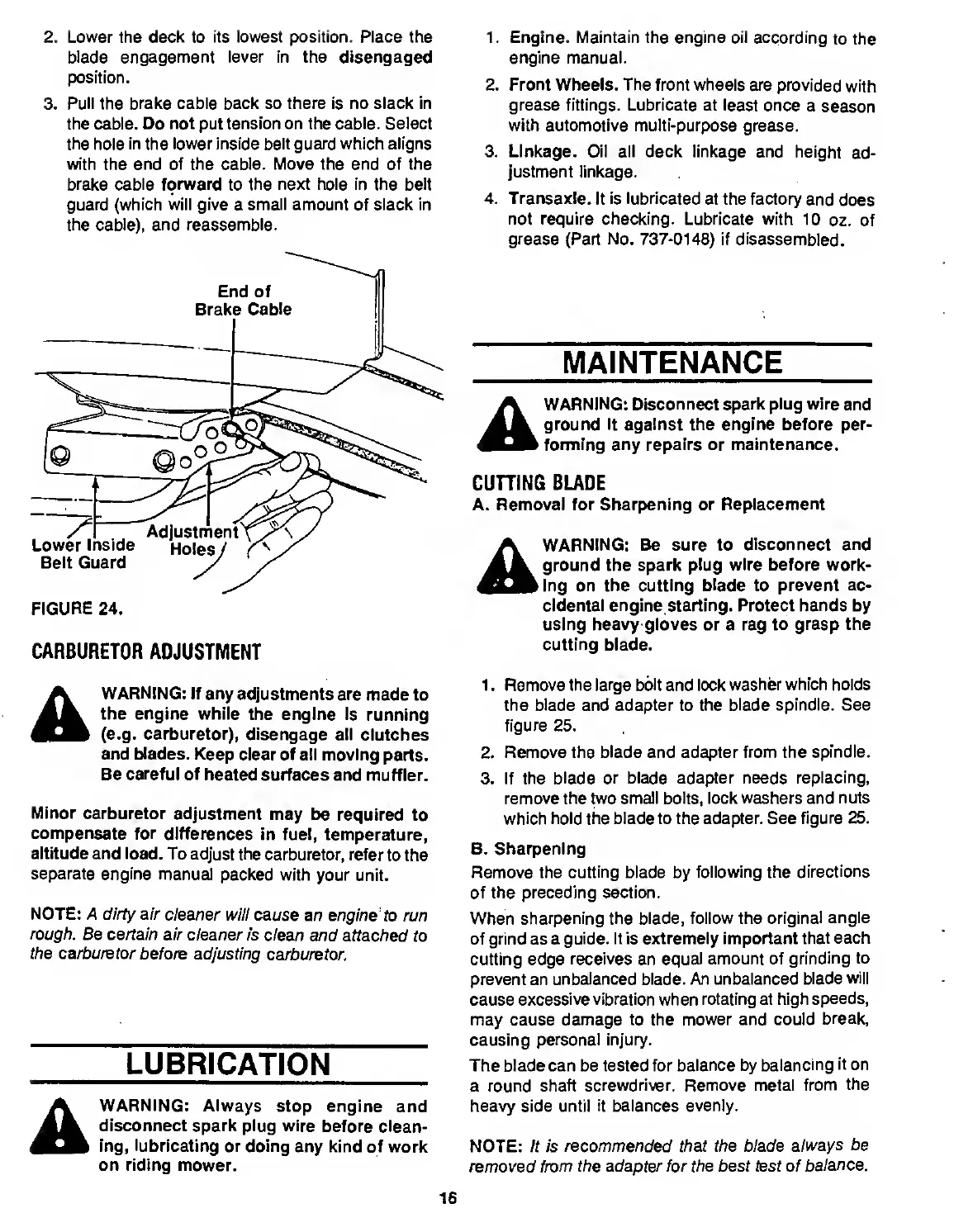

3. Pull the brake cable back so there is no slack in
the cable. Do not put tension on the cable. Select
the hole in the lower inside belt guard which aligns
with the end of the cable. Move the end of the
brake cable forward to the next hole in the belt
guard (which will give a small amount of slack in
the cable), and reassemble.
CARBURETOR ADJUSTMENT
A WARNING: If any adjustments are made to
the engine while the engine is running
(e.g. carburetor), disengage ali clutches
and blades. Keep clear of all moving parts.
Be careful of heated surfaces and muffler.
Minor carburetor adjustment may be required to
compensate for differences in fuel, temperature,
altitude and load. To adjust the carburetor, refer to the
separate engine manual packed with your unit.
NOTE: A dirty air cleaner will cause an engine to run
rough. Be certain air cleaner Is clean and attached to
the carburetor before adjusting carburetor.
LUBRICATION
WARNING: Always stop engine and
disconnect spark plug wire before clean¬
ing, lubricating or doing any kind of work
on riding mower.
1. Engine. Maintain the engine oil according to the
engine manual.
2. Front Wheels. The front wheels are provided with
grease fittings. Lubricate at least once a season
with automotive multi-purpose grease.
3. Linkage. Oil all deck linkage and height ad¬
justment linkage.
4. Transaxle. It is lubricated at the factory and does
not require checking. Lubricate with 10 oz. of
grease (Part No. 737-0148) if disassembled.
MAINTENANCE
A WARNING: Disconnect spark plug wire and
ground it against the engine before per¬
forming any repairs or maintenance.
CUniNG BLADE
A. Removal for Sharpening or Replacement
WARNING: Be sure to disconnect and
ground the spark plug wire before work¬
ing on the cutting blade to prevent ac¬
cidental engine starting. Protect hands by
using heavy gloves or a rag to grasp the
cutting blade.
1. R emove the large bolt and lock washer which holds
the blade and adapter to the blade spindle. See
figure 25.
2. R emove the blade and adapter from the spindle.
3. I f the blade or blade adapter needs replacing,
remove the two small bolts, lock washers and nuts
which hold the blade to the adapter. See figure 25.
B. Sharpening
Remove the cutting blade by following the directions
of the preceding section.
When sharpening the blade, follow the original angle
of grind as a guide. It is extremely important that each
cutting edge receives an equal amount of grinding to
prevent an unbalanced blade. An unbalanced blade will
cause excessive vibration when rotating at high speeds,
may cause damage to the mower and could break,
causing personal injury.
The blade can be tested for balance by balancing it on
a round shaft screwdriver. Remove metal from the
heavy side until It balances evenly.
NOTE: It is recommended that the blade always be
removed from the adapter for the best test of balance.
16
