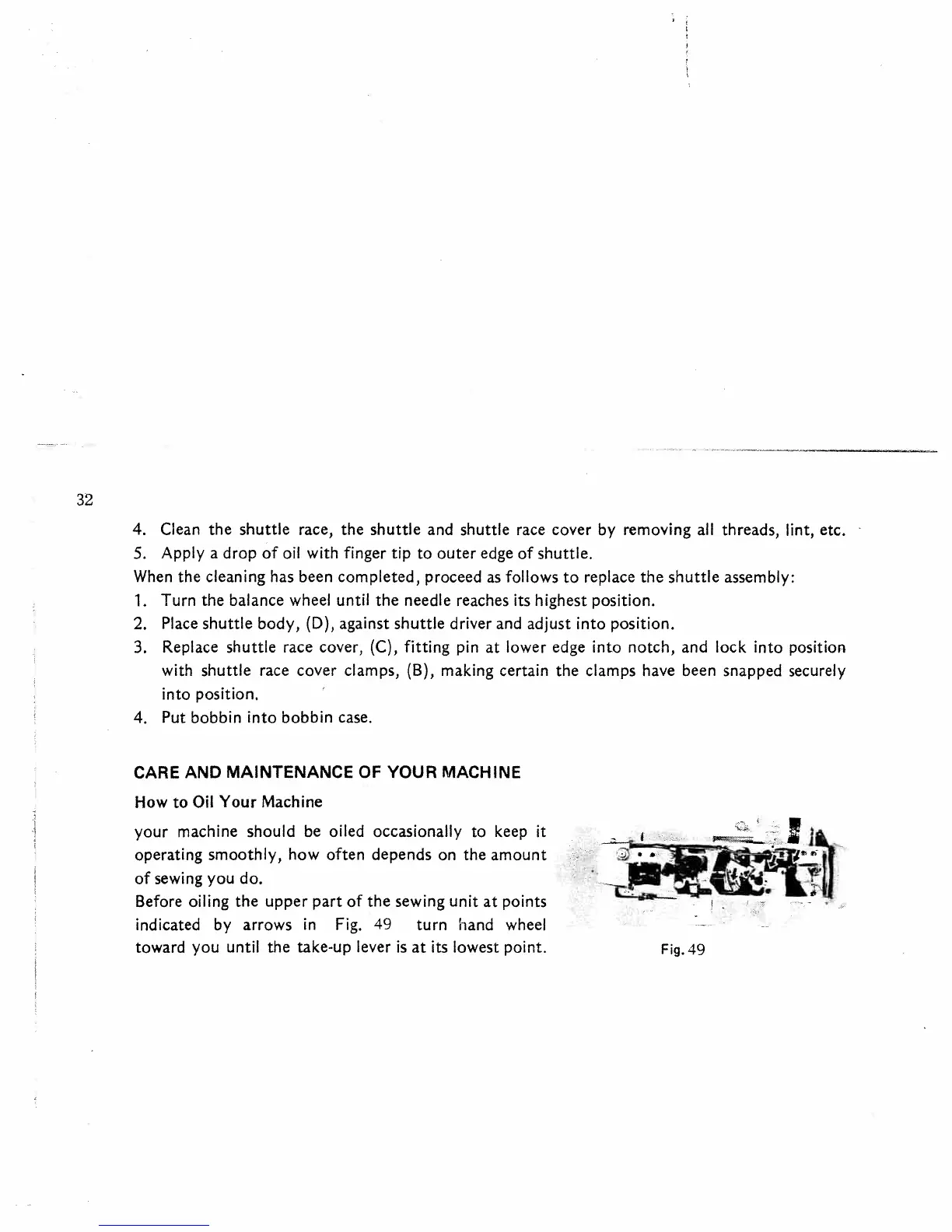

White S-9000AAB - CARE AND MAINTENANCE OF YOUR MACHINE; How to Oil Your Machine

32
4. Clean the shuttle race,
the shuttle and shuttle race cover
by
removing all
threads, lint, etc.
5.
Apply
a drop of oil with finger
tip to
outer edge of
shuttle.
When the cleaning has been completed,
proceed
as
follows
to
replace the shuttle assembly:
1.
Turn the balance wheel until the needle
reaches its highest position.
2.
Place shuttle
body,
(D), against
shuttle driver and adjust into position.
3.
Replace shuttle race cover, (C), fitting pin
at
lower edge into notch, and lock
into position
with shuttle race
cover
clamps, (B), making certain
the
clamps have been snapped
securely
into position.
4. Put bobbin into bobbin
case.
CARE
AND MAINTENANCE
OF
YOUR MACHINE
How
to
Oil
Your Machine
your
machine should be oiled occasionally
to
keep
it -. .
operating
smoothly, how often depends
on the amount
of sewing you do. . . .
Before oiling
the
upper part of
the sewing
unit
at
points
indicated
by
arrows
in Fig.
49
turn hand wheel -
toward
you until the take-up
lever
is
at
its lowest point.
Fig.
49
