making micro-adjustments • wickededgeusa.com • 13
MAKING MICRO-
ADJUSTMENTS TO
YOUR ANGLE
SETTINGS

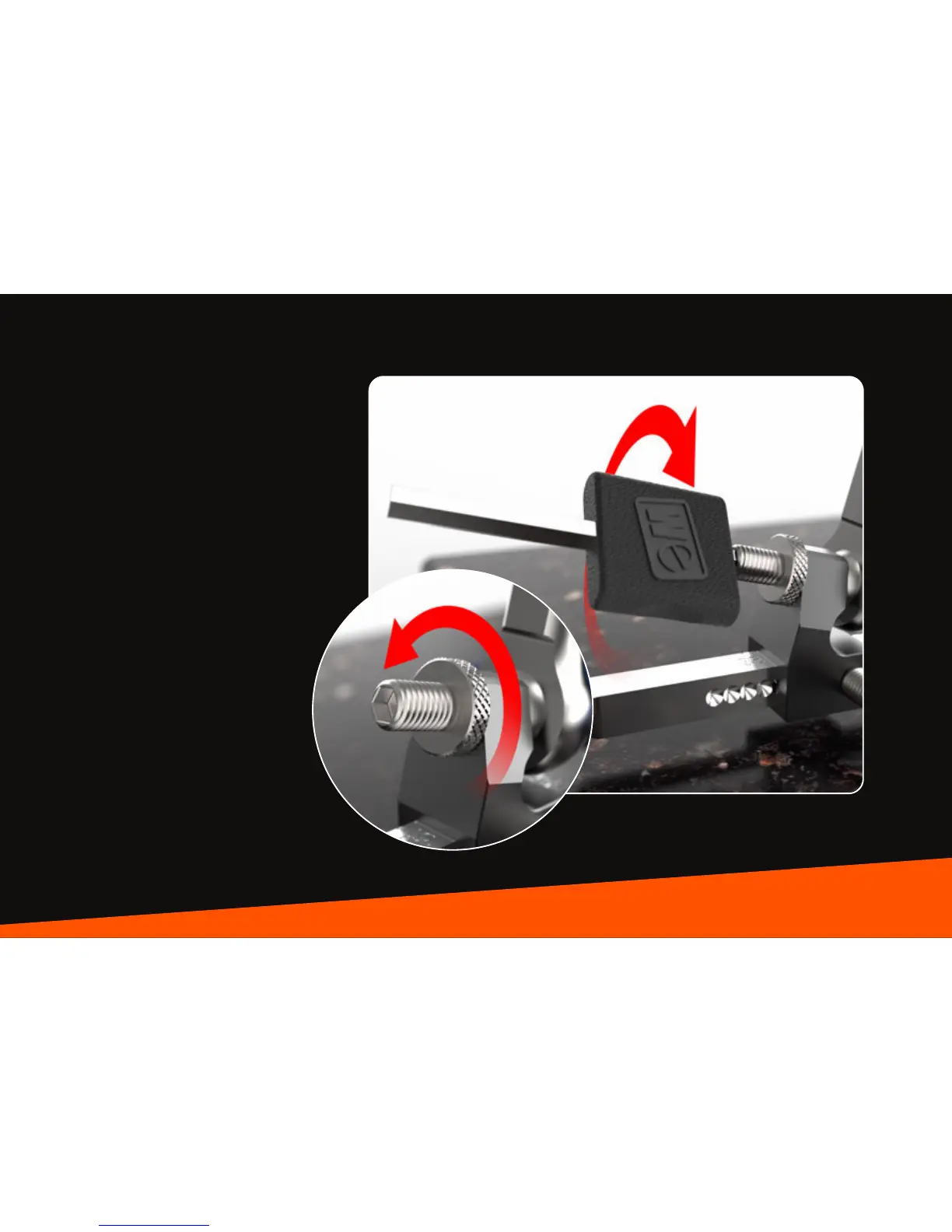

Step 1: Loosen the knurled nut on the back
side of the L-bracket, opposite the Ball-Joint.
See Figure 7-1
Step 2: Use the 1/8" side of your Vise Key to
thread the Ball Joint closer to or farther from
the Vise, until you reach your desired angle.
Figure 7
Step 3: Re-righted the Knurled Nut until it
is tight against the L-bracket to lock your
angle in place.
Note: You will need to use a Digital
Angle Gauge to make micro-angle
adjustments, available online at
www.wickededgeusa.com.
