WICKEDedge WE120 - Assembling Your Wicked Edge Sharpener; Step 1: Position the Degree Bar; Step 2: Fasten the Degree Bar; Step 3: Place the Riser Block

ASSEMBLE YOUR
WICKED EDGE®
Step 1: Position the Degree Bar in the bottom
channel of the Base with the numbers facing
up and the detents facing the same direction
as the logo on the Base as shown in Figure 13.
Step 2: Note that only one hole in the Base is
threaded. Insert the 1/2 inch Socket-Head Cap
Screw into the hole in the Degree Bar that is
lined up with the threaded hole in the Base.
Then fasten the Degree Bar to the Base. Do
not over tighten.
Step 3: Place the Riser Block in the top
channel of the Base, above the non-threaded
hole in the channel.
Step 4: Place the Vise in the channel on the
top of the Riser Block. The threaded hole in
the bottom of the vise, the through hole in
the Riser Block, and the through hole in the
Base should all be aligned.
Step 5: Insert the 2 inch Socket-Head Cap
Screw through the Degree Bar, Base, and Riser
Block and screw it into the Fixed Vise Jaw
using the long end of the Vise Key.
Do not over tighten.

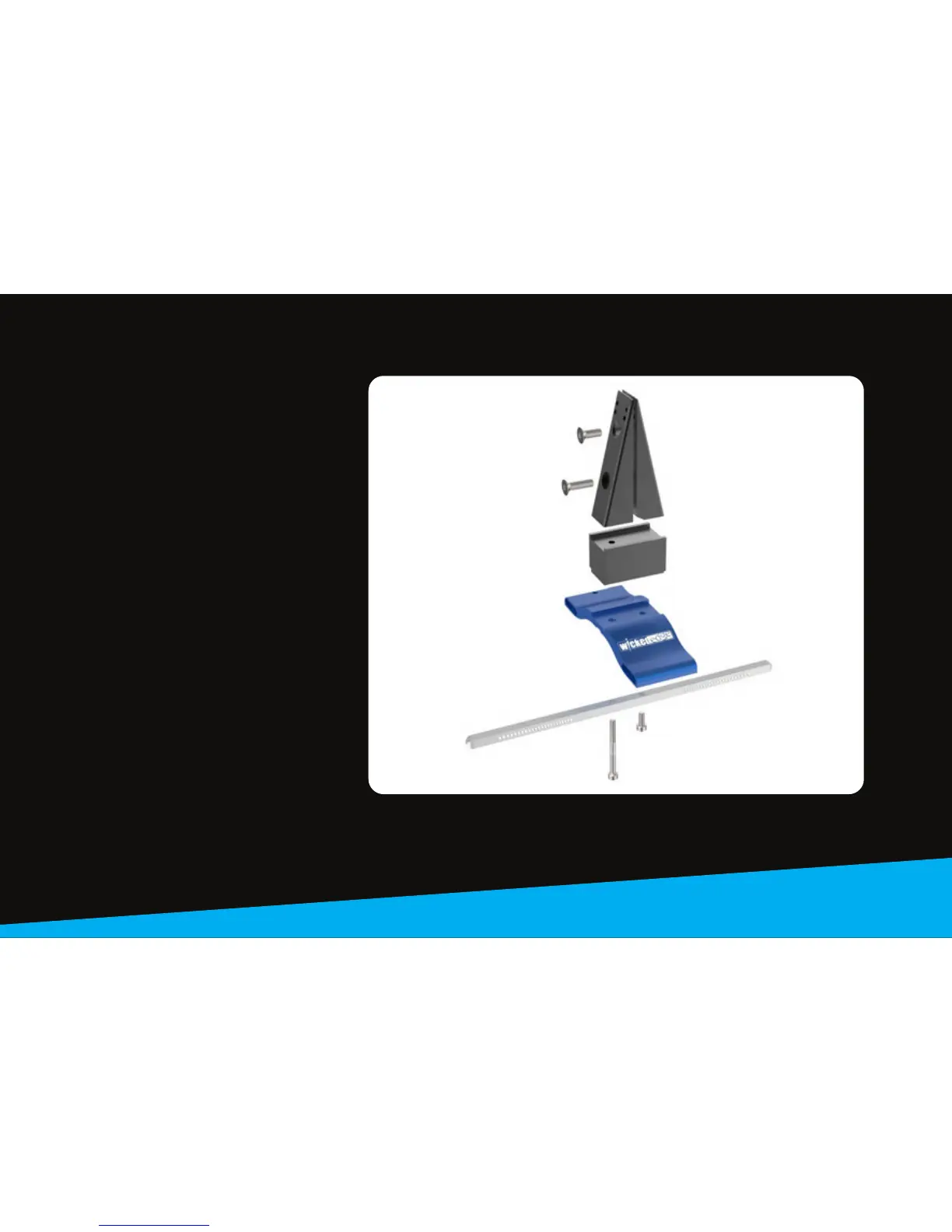

Fig. 13
wickededgeusa.com • assembly guide • 21
