WB W I D E B A N D D 2 A F R C O N T R O L L E R
G A U G E
WB WIDEBAND 2020 – www.WIDE-BAND.com -

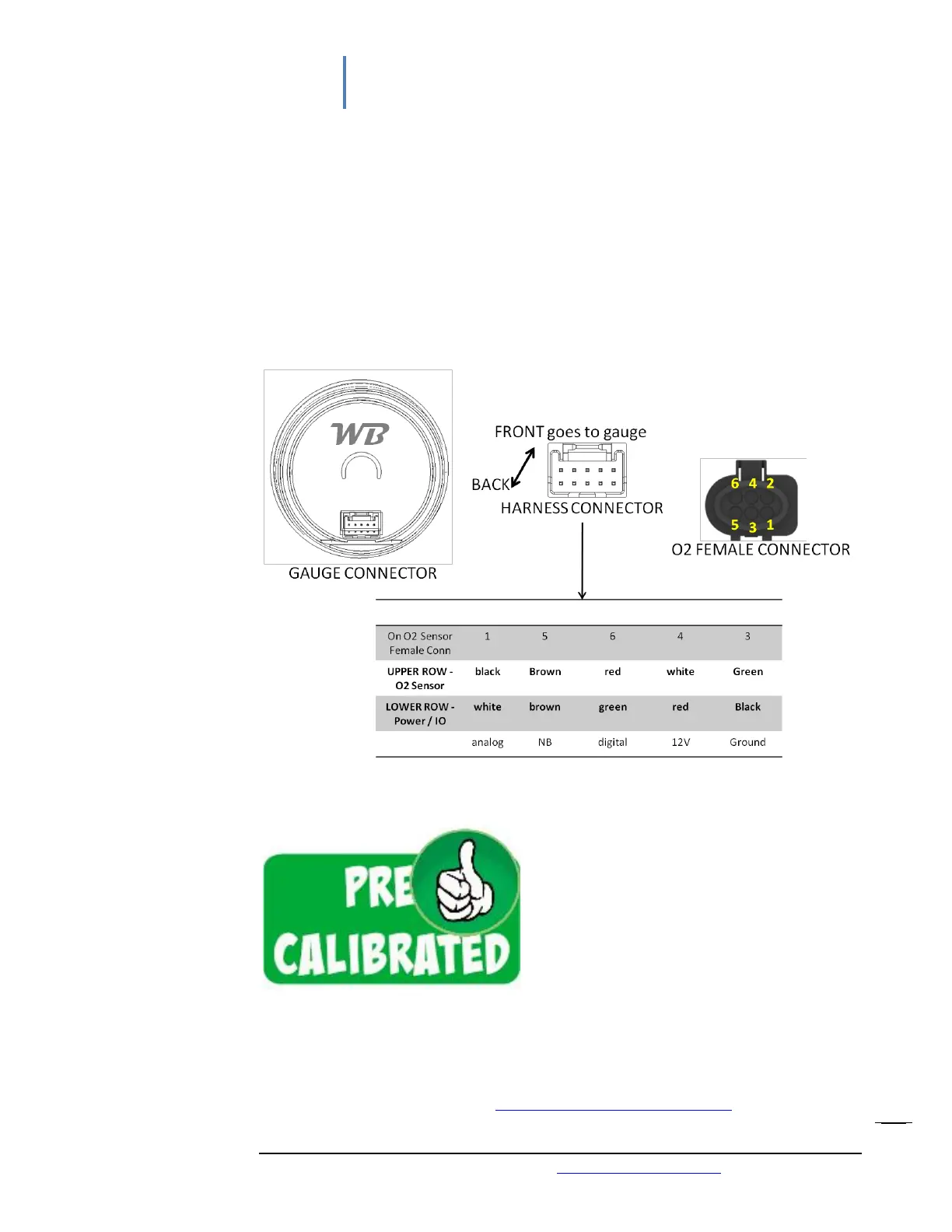

Connectors
WB WIDEBAND D2 comes with a harness that is connected to the gauge, as
shown below. Wideband connector goes and clicks to Bosch (#17014) LSU4.2 O2
sensor connector. The other branch of the harness has the power/IO features. At
a minimum, switched 12V RED (5A fuse) and ground BLACK wires need to be
connected, as explained above.
Calibration
Please note that all WB WIDEBAND products are tested and calibrated just before
they are shipped from Cincinnati, OH, validating that they are working properly. No
need for any calibration when first use. However, if there is any change in setups and
environment being used (altitude, temperature, etc.), it should be open air calibrated.
WATCH: YOUTUBE VIDEO: https://youtu.be/p-gKXABfD9E
