WIKA PS-20 User Manual

2301300.07 EN/DE/FR 12/2017
9 WIKA Operating instructions / Betriebsanleitung / Mode d'emploi PS-20, PS-21

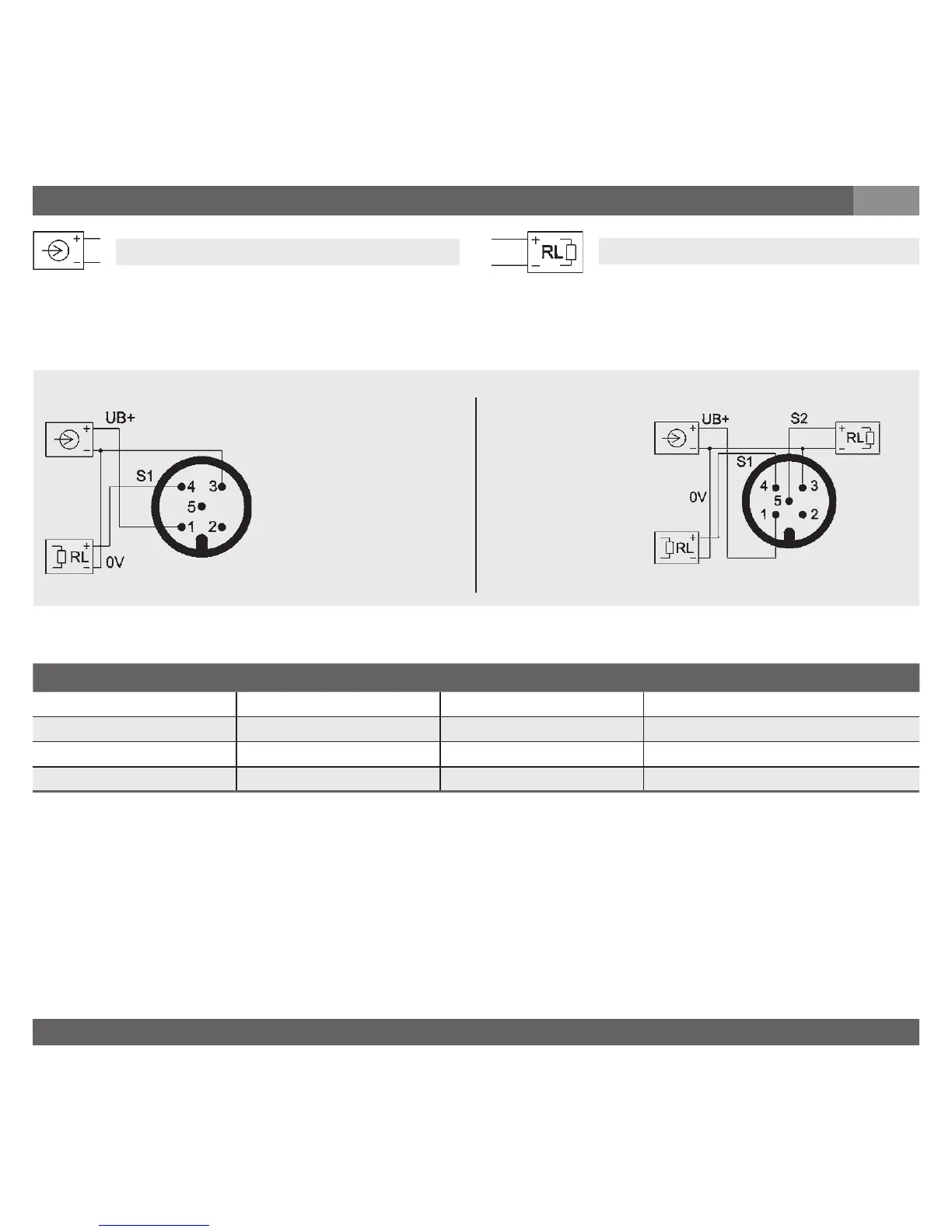

configuration flying leads L-connector circular connector M12x1
Power supply (UB+) brown 1 1
0 V green 2 3
Switch 1 (S1) white 3 4
Switch 2 (S2) yellow - 5
7. Starting, operation
GB
Power supply
UB+ Positive supply / measurement connection S1 Switching output 1
OV Negative supply / measurement connection S2 Switching output 2
US+ Positive switching voltage supply connection
Load
A (PNP)
C (PNP/PNP)
Circular connector M12x1, 5-pin
