Wilcox G24 - NVG Shoe Attachment and Detachment; Attach NVG Shoe to Mount; Detach NVG Shoe from Mount

5 February, 2024 4 Rev. A-14
ATTACH/DETACH SHOE - ATTACHMENT OF AN NVG
ATTACH SHOE

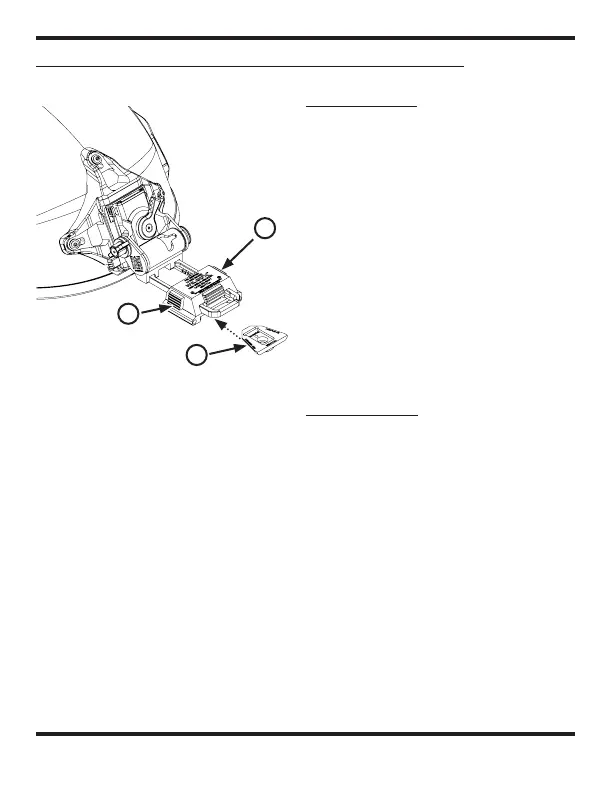

Insert the dovetail shoe (1)
into the receiver (2) of the
G24 Mount and push in until
you hear a click.
Gently pull on the NVG to make
sure it is securely mounted.
DETACH SHOE
Hold the NVG, push the NVG
Release Button (3), then pull
the NVG out.
1
3
2
