Wilcox G24 - NVG Operation: Stowing and Vertical Adjustment; Stowing and Deploying NVG; Vertical NVG Adjustment

5 February, 2024 5 Rev. A-14
OPERATION

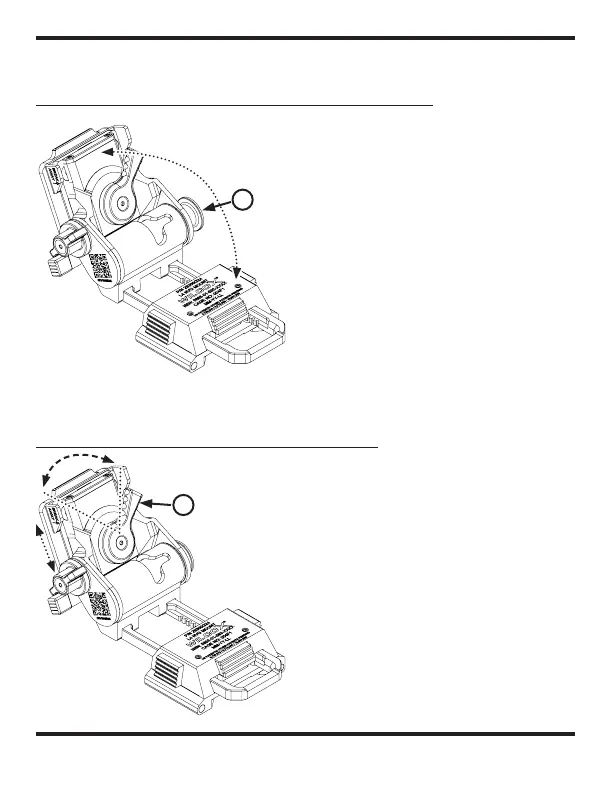

UP/DOWN - ADJUSTMENT OF THE NVG
Placing the Lock Lever (1) in
the unlocked position allows
for vertical adjustment up and
down. Turn the lever CW to
lock.
1
PIVOT - STOWING AND DEPLOYING THE NVG
Push the flip release button
(1) and position the Carriage
in the stowed or operational
position. Release the button to
lock in place.
130° OF
ROTATIONAL
TRAVEL
ILLUSTRATED
LOCKED
0.90 IN.
VERTICAL
TRAVEL
1
