Wilcox G24 - NVG Operation: Fore;Aft and Tilt Adjustment; Fore;Aft NVG Adjustment; NVG Tilt Adjustment

5 February, 2024 6 Rev. A-14

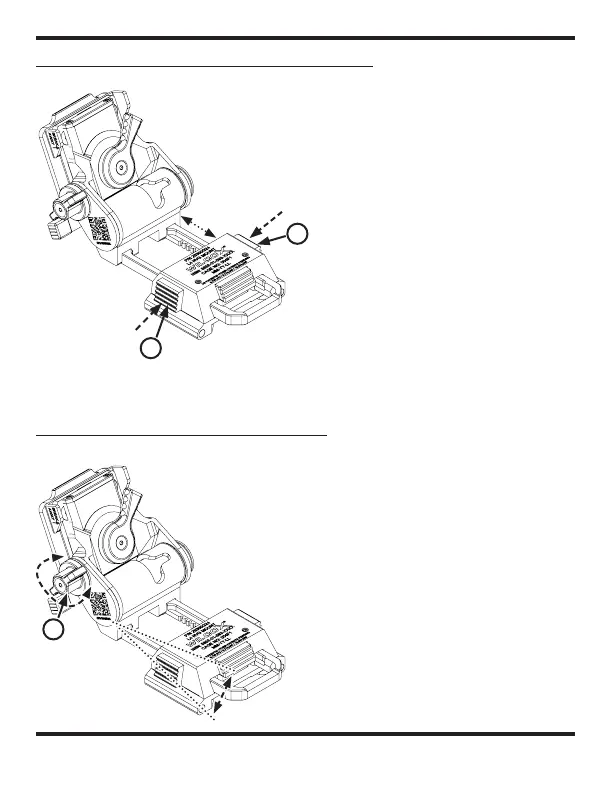

TILT - ADJUSTMENT OF THE NVG
Turn the tilt angle adjustment
knob (1) CW to raise the angle
or CCW to lower the angle.
1
FORE/AFT - ADJUSTMENT OF THE NVG
Simultaneously push both
buttons (1) in to move the
Carriage forward or backward.
Release the buttons to lock.
1
1
1.3 IN.
FORE/AFT
TRAVEL
15° OF
ROTATIONAL
TRAVEL
