Step 12:
Remove the double stick tape cover
and pass the Bridge Stiffener between the
Side Boards and up behind the Front Bridge
Support. The double stick tape should stick
to the bottom of the Bridge Board. Anchor
the Stiffener to the Front Bridge support and
the Bridge board using 3/4” screws through
holes in the Stiffener.
DO NOT use the lower holes on either end of
the Stiffener as illustrated.

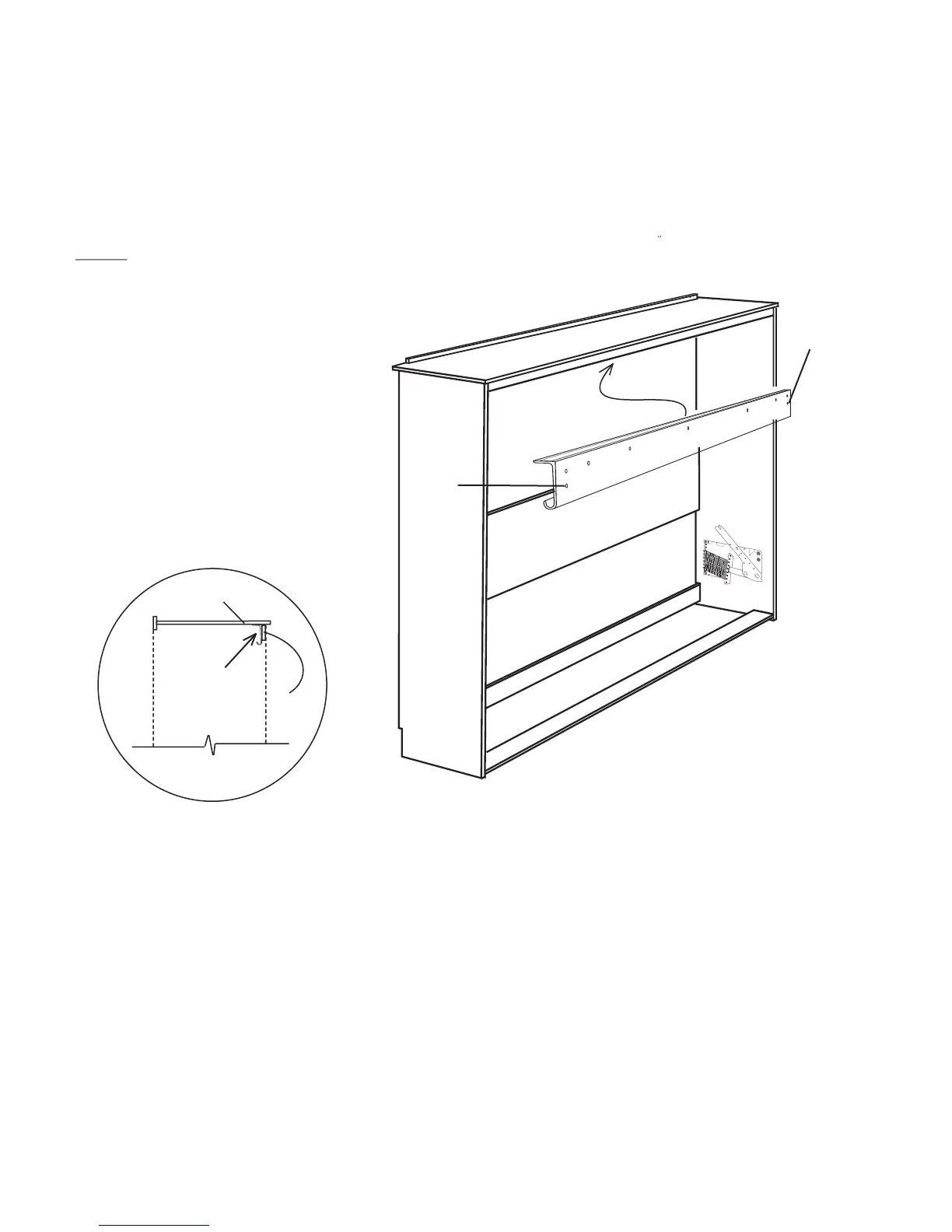

Cut away side view
Bridge Board
Front Bridge support
Bridge Stiffener placement
DO NOT USE
THIS HOLE
DO NOT USE
THIS HOLE
Page 8
To Next Page
