Williams 3501922A - Blower Operation and Parts

Blower Accessory 2102
28
Operation
This accessory is operated using the factory equipped, three-prong (grounding) plug and cord. When using the plug and cord, for your
protection against shock hazard, it must be plugged directly into a properly grounded three-prong receptacle. DO NOT CUT OR
REMOVE THE PRONG.
You must select “HI” or “LO” on the speed switch (item 8) for automatic blower operation. When the heater heats up, the fan switch is
activated and the blower will operate. When the heater cools down, the blower will turn off. The blower will not operate if the speed
switch is set in the “OFF” (center) position.

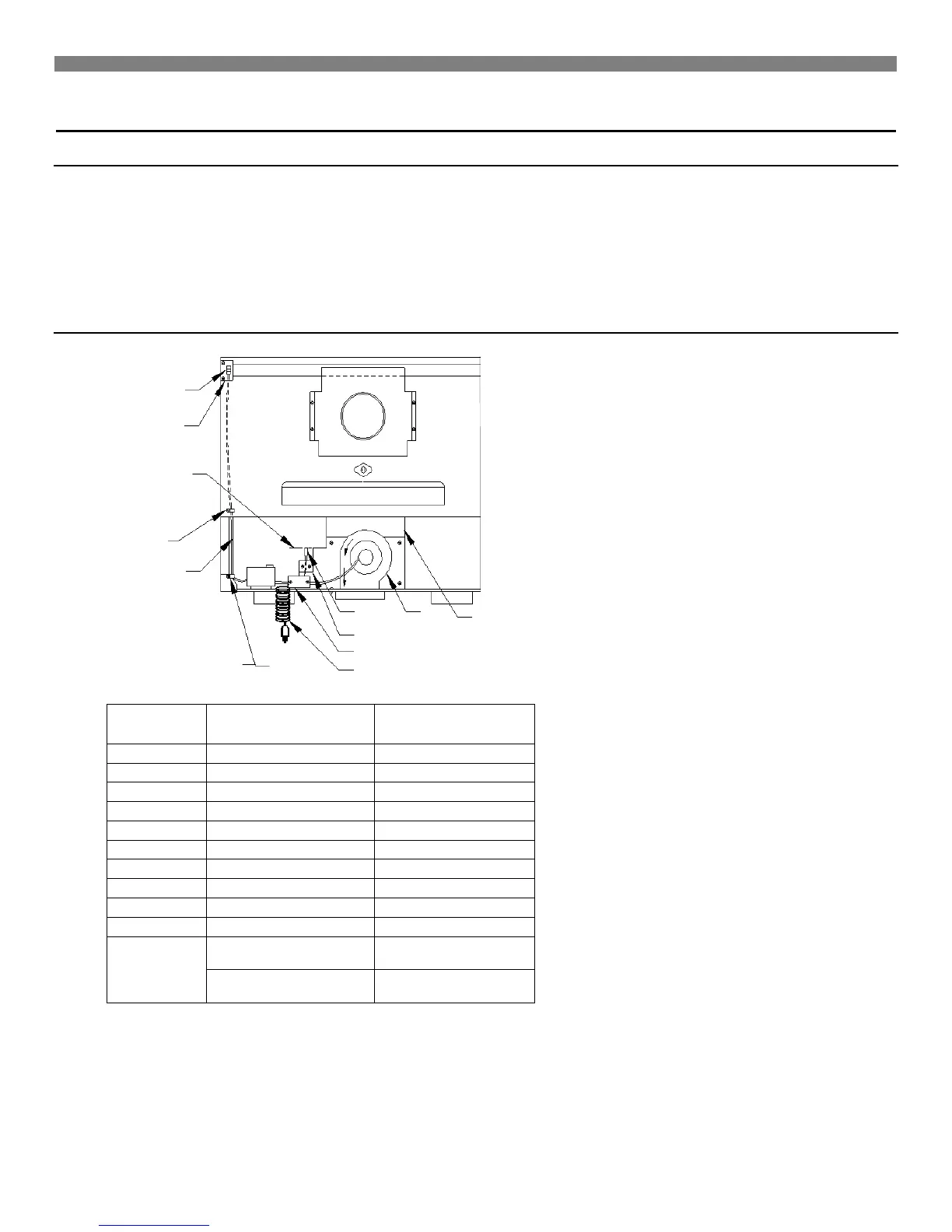

Replacement Parts
Reference
Number
Part Number
Description
1
P501779
Motor
2
P323096
Fan Switch
3
K000862
Fan Switch Plate
4
90-01005-000-02
Junction Box
5
P501778
Cord and Plug
6
P202900
Wire (Red)
6
P202800
Wire (Black)
6
P202700
Wire (Blue)
7
K000862
Speed Switch Plate
8
P320911A
Speed Switch
Not shown
K000868
Switch Mounting
Bracket – 500 Series
K000870
Switch Mounting
Bracket – 650 Series
7
2
5
Air Inlet
Duct
Correct
position of
fan switch
Run switch
wire through
attached clamp
4
6
3
8
1
Attach clamp
to secure
wires
