5

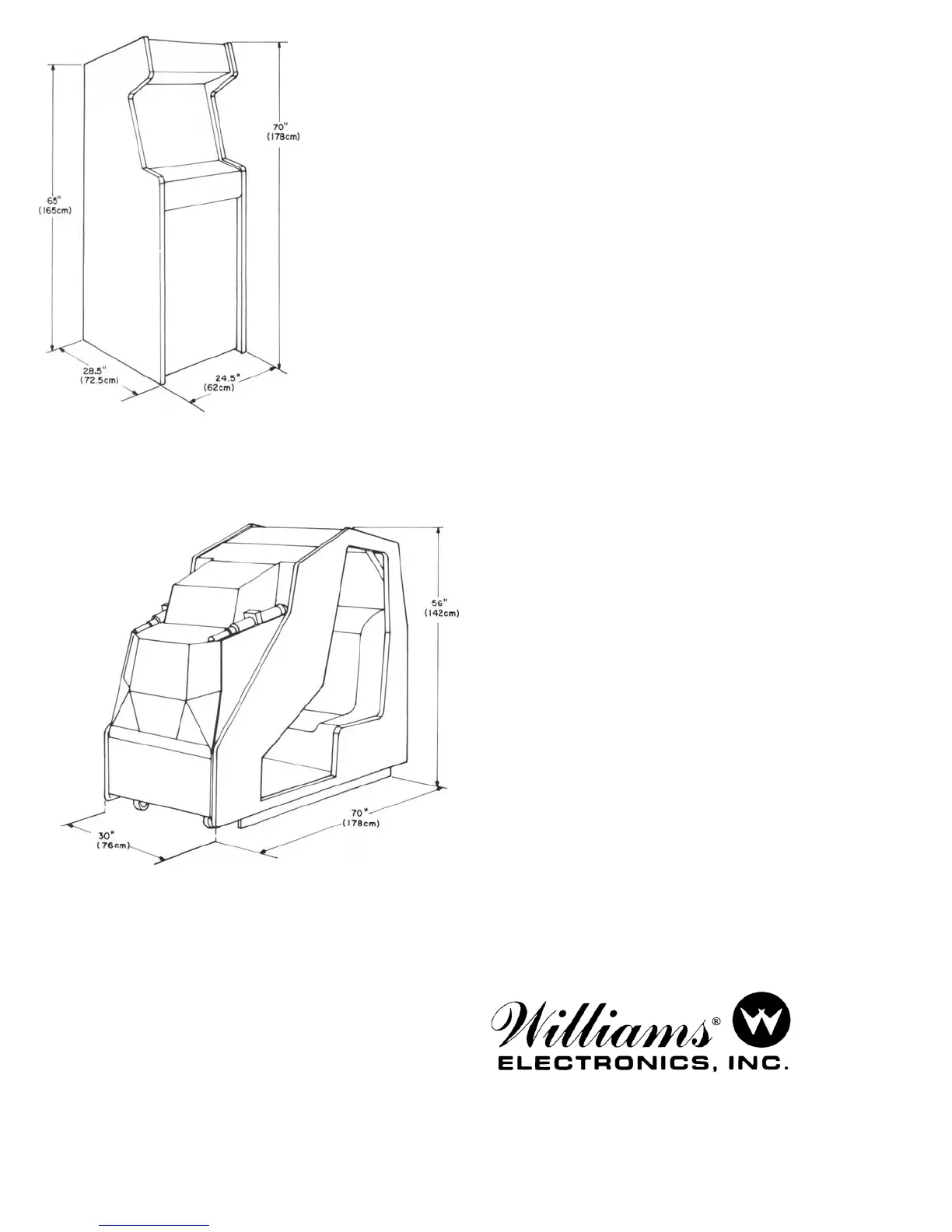

UPRIGHT:
Weight
270lbs (122.5 Kg.) uncrated
290lbs (131.5 Kg.) crated
COCKPIT:
Weight
342lbs (155 Kg.) uncrated
402lbs (182.5 Kg.) crated
**Patent Pending
Specifications subject to change without notice.
Warning - This equipment generates, uses, and can radiate radio
frequency energy and if not installed and used in accordance with
the instructions manual, may cause interference to radio
communications. As temporarily permitted by regulation it has not
been tested for compliance pursuant to Subpart J of Part 15 of FCC
Rules, which are designed to provide reasonable protection against
such interference. Operation of this equipment in a residential area
is likely to cause interference in which case the user at his own
expense will be required to take whatever measures may be required
to correct the interference.
POWER REQUIREMENTS
115/230v AC Nominal, 50/60 Hz
@1.7/0.85A 192W
(20A surge for one cycle at power turn on)
Normal Line = 98-126v AC
196-252v AC
High Line* = 98-126v AC
196-252v AC
Low Line* = 98-126v AC
196-252v AC
*Transformer Jumpers Required.
See Service Manual.
ENVIRONMENT
Operating Temperature
0
0
to +45
0
C ambient
(+32
0
to +113
0
F)
Storage Temperature
-40
0
to +65
0
C ambient
(-40
0
to +149
0
F)
90% RH at 40
0
(104
0
F), non-condensing
MONITOR
19" Colour Raster
non-interlaced
UL, CSA & DHHS Approved
VIDEO SYSYTEM**
256 Colours, 340 x 240 PIXEL Resolution
6809E Microprocessor
ROM: 44K BYTES
Video and Scratch RAM: 50 K BYTES
CMOS RAM: 1Kx4
SPECIAL RAM 2K BYTES
SOUND SYSTEM**
6808 Microprocessor
ROM: 24K BYTES (cockpit)
U.S. Patent No. 4272649
SPEECH SYSTEM**
Digital to Analogue
CVSD System
JOYSTICK**
Optical Sensing
49 discrete directions and degrees of movement
(6 separate speeds in 8 directions plus
centre off position)
SERVICE
For the back-up that keeps you out-front,
Call Williams toll-free at 800/621-1253.
In Illinos, call toll-free at 800/572-
1324
3401 N. California Av., Chicago, IL 60618
(312) 267-2240, Telex 253095
NOTICE: "SINISTAR" is a trademark of Williams Electronics, Inc.
© 1983, WILLIAMS ELECTRONICS , INC
