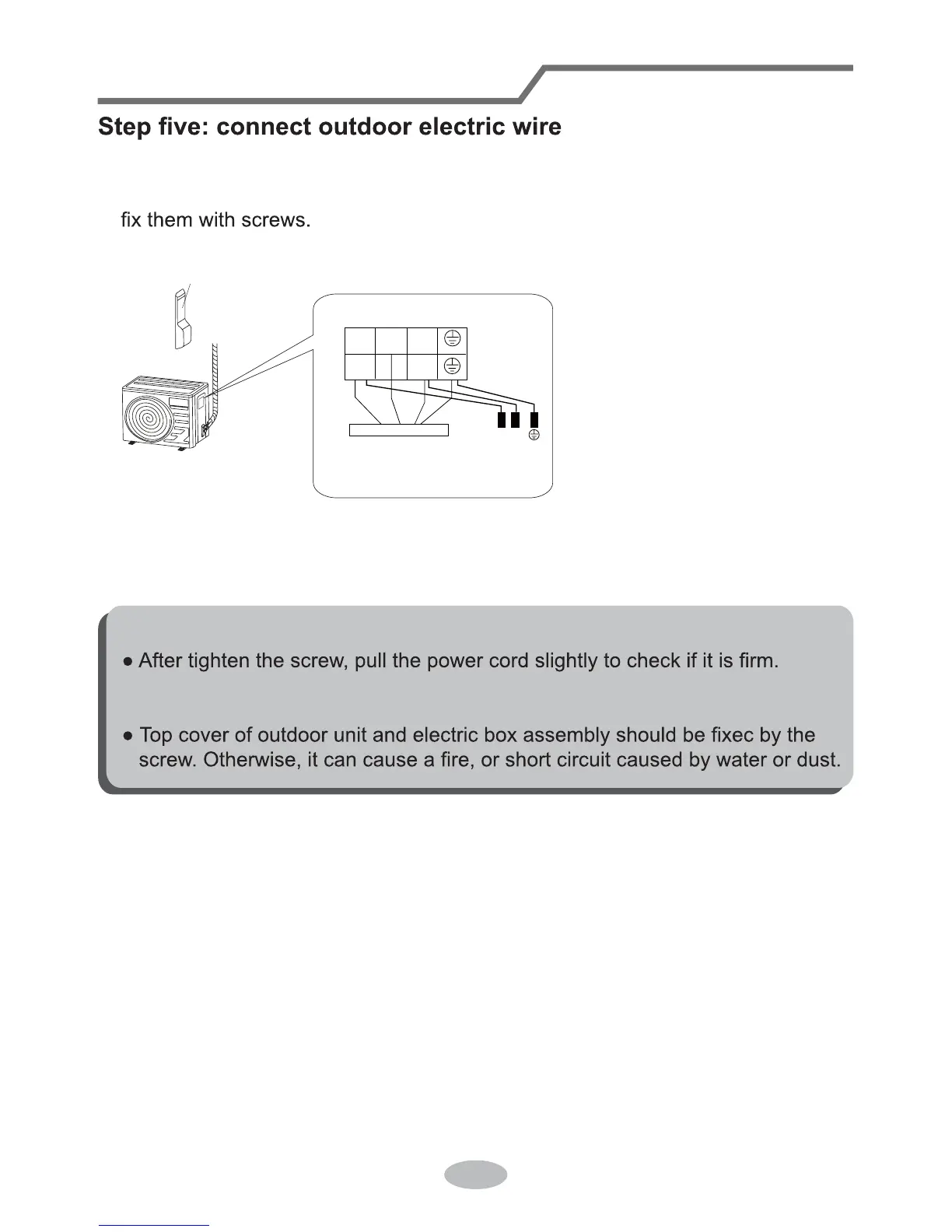

Installation of outdoor unit
1. Remove the wire clip; connect the power connection wire and signal control wire
(only for cooling and heating unit) to the wiring terminal according to the color;
2. Fix the power connection wire and signal control wire with wire clip (only for
cooling and heating unit).
Note:
Ɣ1HYHUFXWWKHSRZHUFRQQHFWLRQZLUH to prolong or shorten the distance.
Ɣ The connecting wire and connection pipe cannnot touch each other.
Handle
Indoor unit connection
1
L1
L1
L2
L2
32
blue black brown
yellow-green
To Next Page
