28

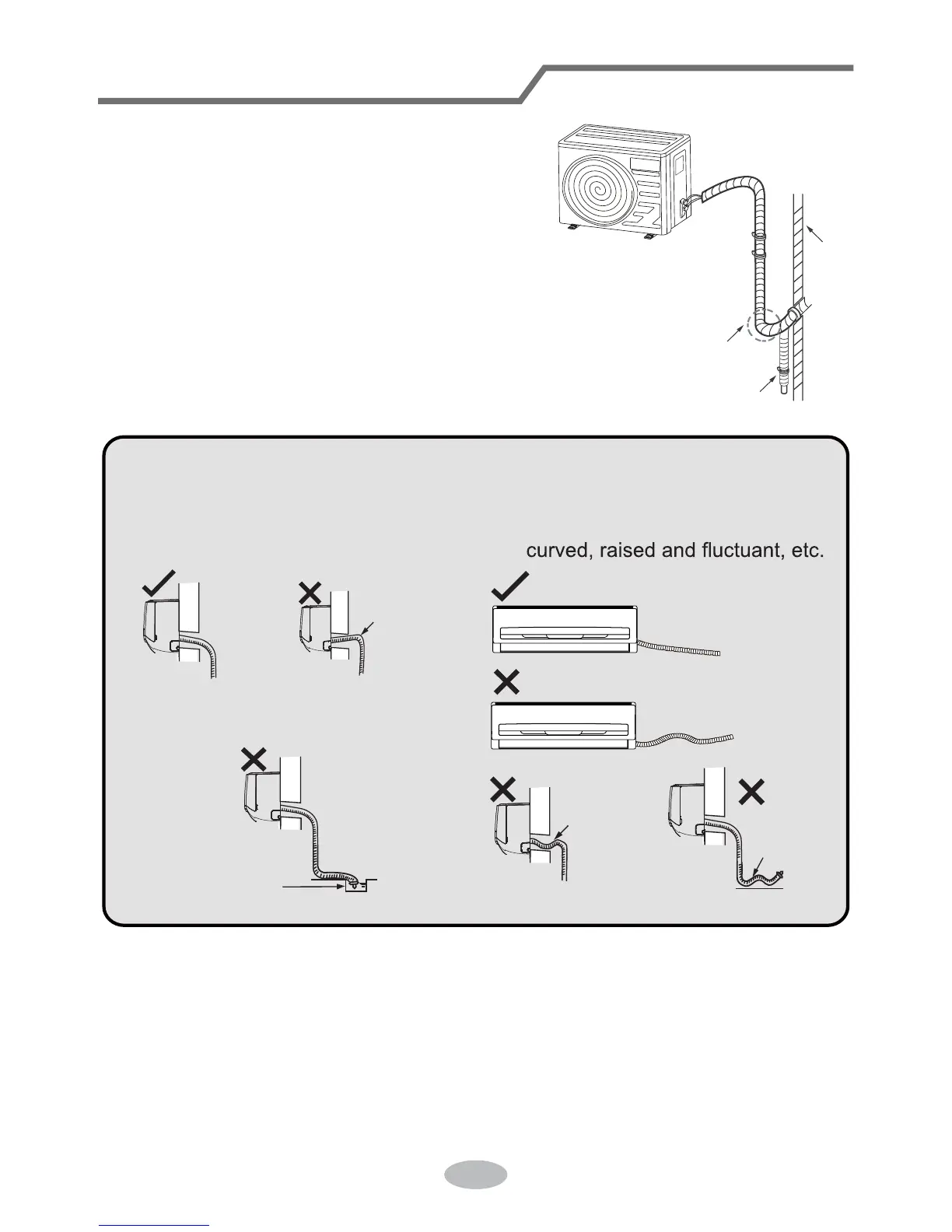

Ɣ The through-wal height of drain hose
shouldn't be higher than the outlet
pipe hole of indoor unit.
Ɣ6ODQWWKHGUDLQKRVHVOLJKWO\GRZ
nwards. The drain hose can't be
Ɣ The water outlet can't be placed
in water in order to drain smoothl\.
Installation of outdoor unit
the drain hose
can't raise
upwards.
The drain hose can't be fluctuant
The drain hose
can't be fluctuant
The water
outlet can't be
fluctuant
The water outlet
can't be placed
in water
Note:
Step six: neaten the pipes
1. The pipes should be placed along the wall,
EHQWUHDVRQDEO\DQGKLGGHQSRVVLEO\. Min.
semidiameter of bending the pipe is 10cm.
2. If the outdoor unit is higher than the wall
KROH\RXPXVWVHWD8VKDSHGFXUYHLQWKH
pipe before pipe goes into the room, in
RUGHUWRSUHYHQWUDLQIURPJHWWLQJLQWRWKH
room.
8VKDSHGFXUYe
wall
drain hose
