CALIBRATION
WEIGHT AND BALANCE

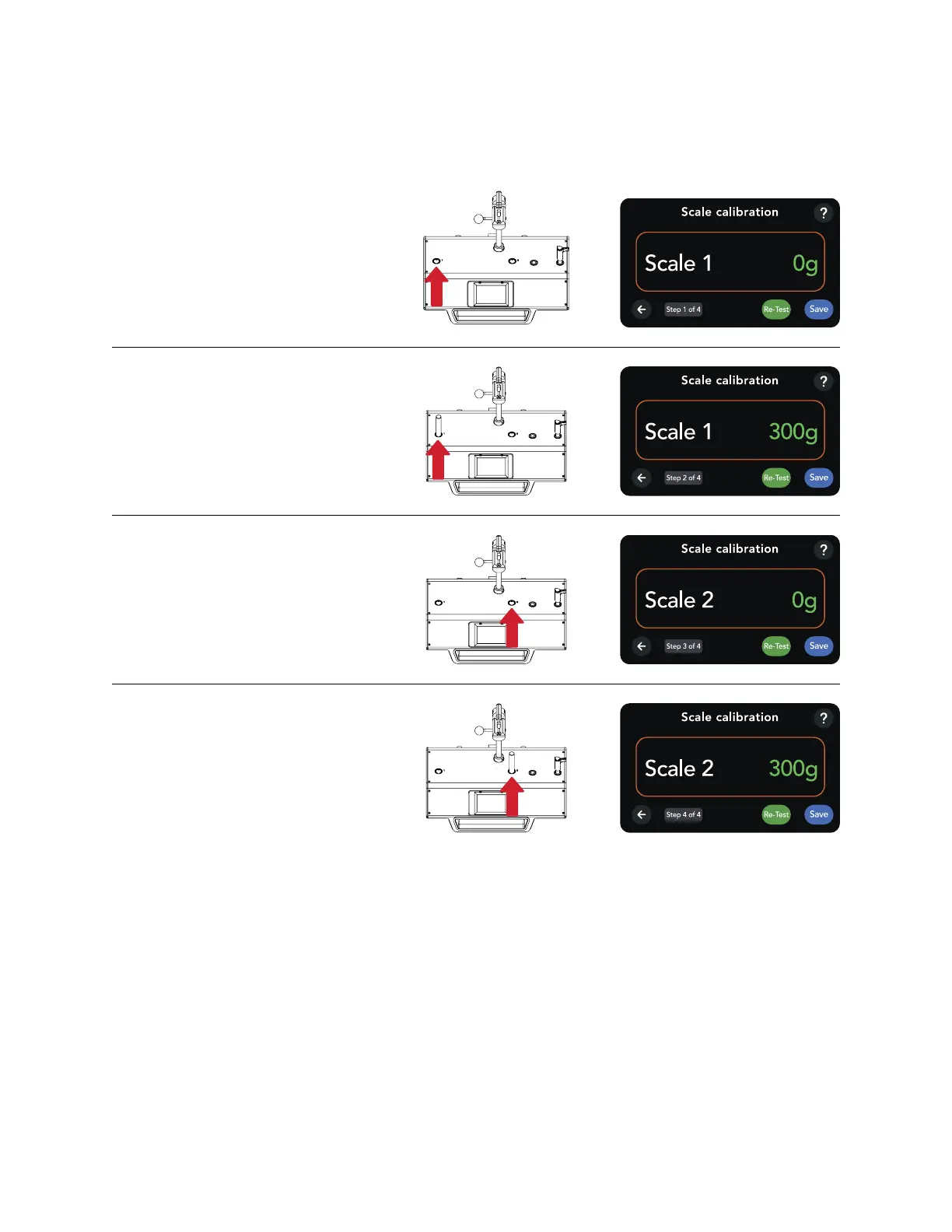

1. Enter Scale Loadcell Calibration
through the Settings menu.
2. Remove the Handle and
Hoop Load cell fixtures.
3. Measure Scale 1 with no weight.
Hit SAVE.
4. Measure Scale 1 with 300 gram
bar inserted. Hit SAVE.
5. Measure Scale 2 with no weight.
Hit SAVE.
6. Measure Scale 2 with 300 gram bar
inserted. Hit SAVE.
7. Weight and Balance loadcells are
now calibrated.
BAIARDO TUNE MANUAL
18
