CLEAN,MAINTAIN AND CHANGE
Important: In order to guarantee the best filtering performance, replace the uv lamp after work-
ing 8000 hours.

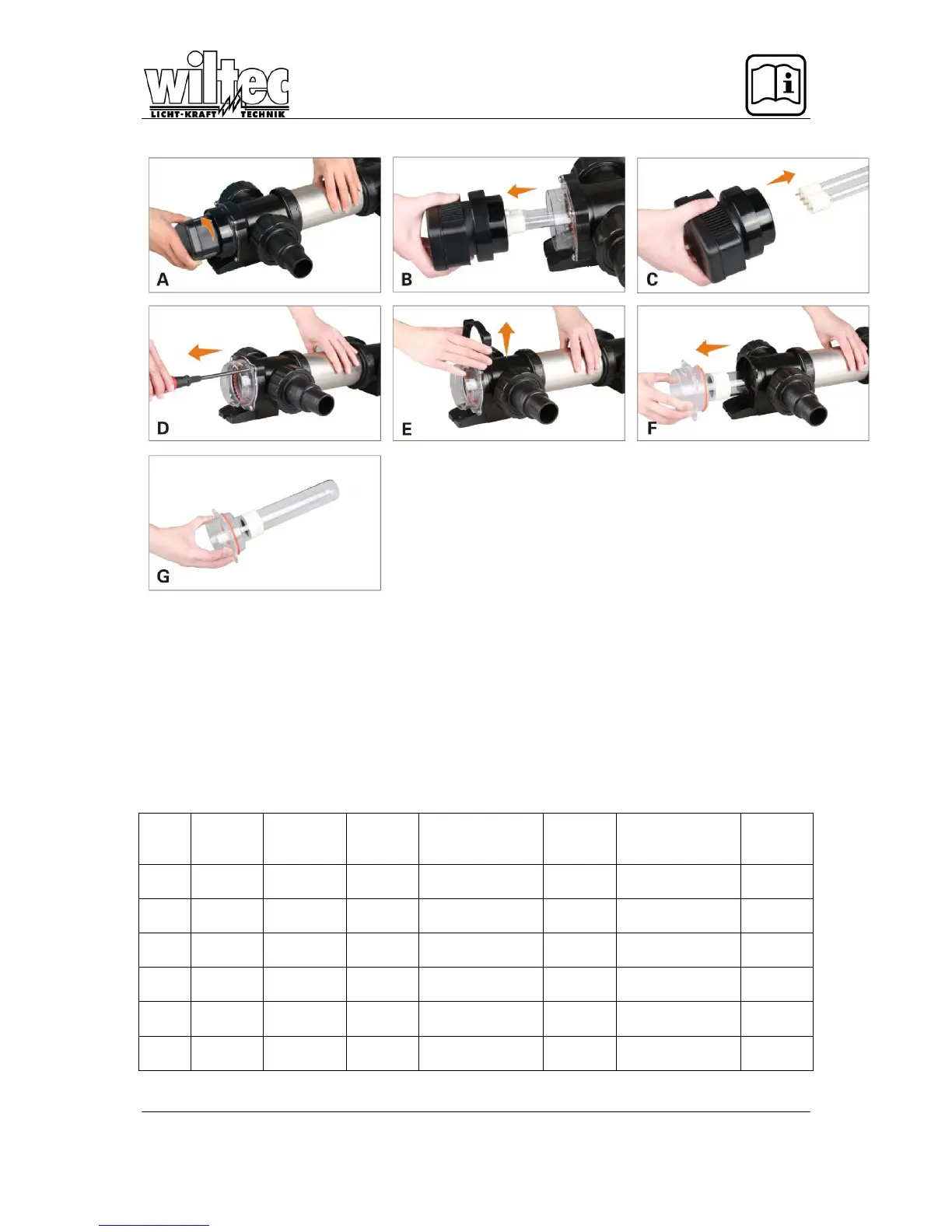

-Turn the head according to the direction of arrow. (Pic A )
-Take out the head according to the direction of arrow. (Pic B)
-Take out the UV lamp according to the direction of arrow, then replace it.(Only allowed to use the
same tube) thoroughly clean the casing's inside and outside. (Pic C)
-Use the screwdriver unscrew 4 screws. (Pic D)
-Take out the upper bracket according to the direction of arrow. (Pic E)
-Take out the quartz glass tube according to the direction of arrow.(Pic F)
-Using a wet cloth clean the quartz glass tube from the outside, and inspect for damage.(Suggest us-
ing vinegar to clean the quartz glass tube if there is much incrustation) (Pic G)
PRODUCT SPEC.
Item Code
UV-C
(W)
Capa-
city
(L)
Max Pressure
(bar)
Flow
(l/h)
Inlet&outlet
Length
(mm)
CUV-
718
51603 18 25000 1.0 3000 1 1/2’’2’’ G2’’ 458
CUV-
724
51604 24 40000 1.0 5000 1 1/2’’2’’ G2’’ 458
CUV-
736
51605 36 55000 1.0 7000 1 1/2’’2’’ G2’’ 545
CUV-
755
51606 55 65000 1.0 8000 1 1/2’’2’’ G2’’ 684
CUV-
772
51607 2*36 90000 1.0 8000 1 1/2’’2’’ G2’’ 1030
CUV-
7110
51608 2*55 120000 1.0 8000 1 1/2’’2’’ G2’’ 1306
