WilTec SKD-5 User Manual

© by WilTec Wildanger Technik GmbH Item 50612, 51249 Page 4
http://www.WilTec.de
http://www.aoyue.eu 09 2021-1
http://www.teichtip.de
The wiring diagram is located on the inside of the opposite side of the cover.
The cables used should have an outer diameter between 6 and 12 mm. In order to protect the housing
against water entering, the six screws of the housing must be tightened firmly. Further information can
be found in the chapter “Wiring diagram”.

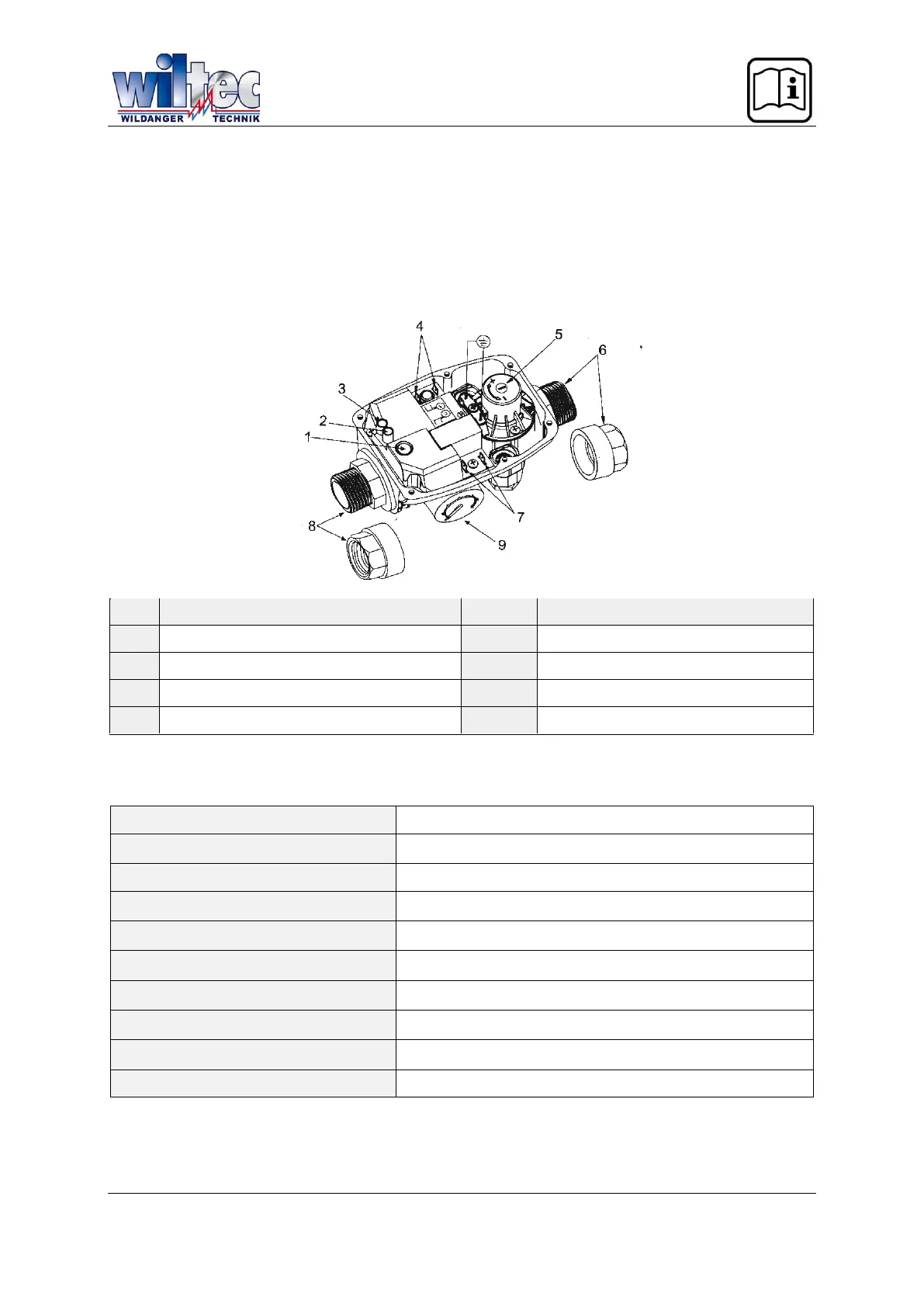

Mains parts
№
Functions
№
Functions
1
Restart box
5
Pressure adjusting screw
2
State LED
6 and 8
25,4 mm (1″) screw connection
3
Mains voltage display
7
Power supply
4
Pump motor connection
9
Pressure indication
Technical data
Input voltage (V)
220–240
Input frequency (㎐)
50
Max. input amperage (A)
10
Max. operating pressure (㍴)
10
Start pressure (㍴)
1–3
Pressure gauge pressure range (㍴)
1–12
Max. temperature (℃)
60
Connections (㎜)
32.89–33.25 (1″) (external thread)
Max. power of connected pump (㎾)
1.1
Protection type
IP 65
