Wilton 4103 - Page 22

22

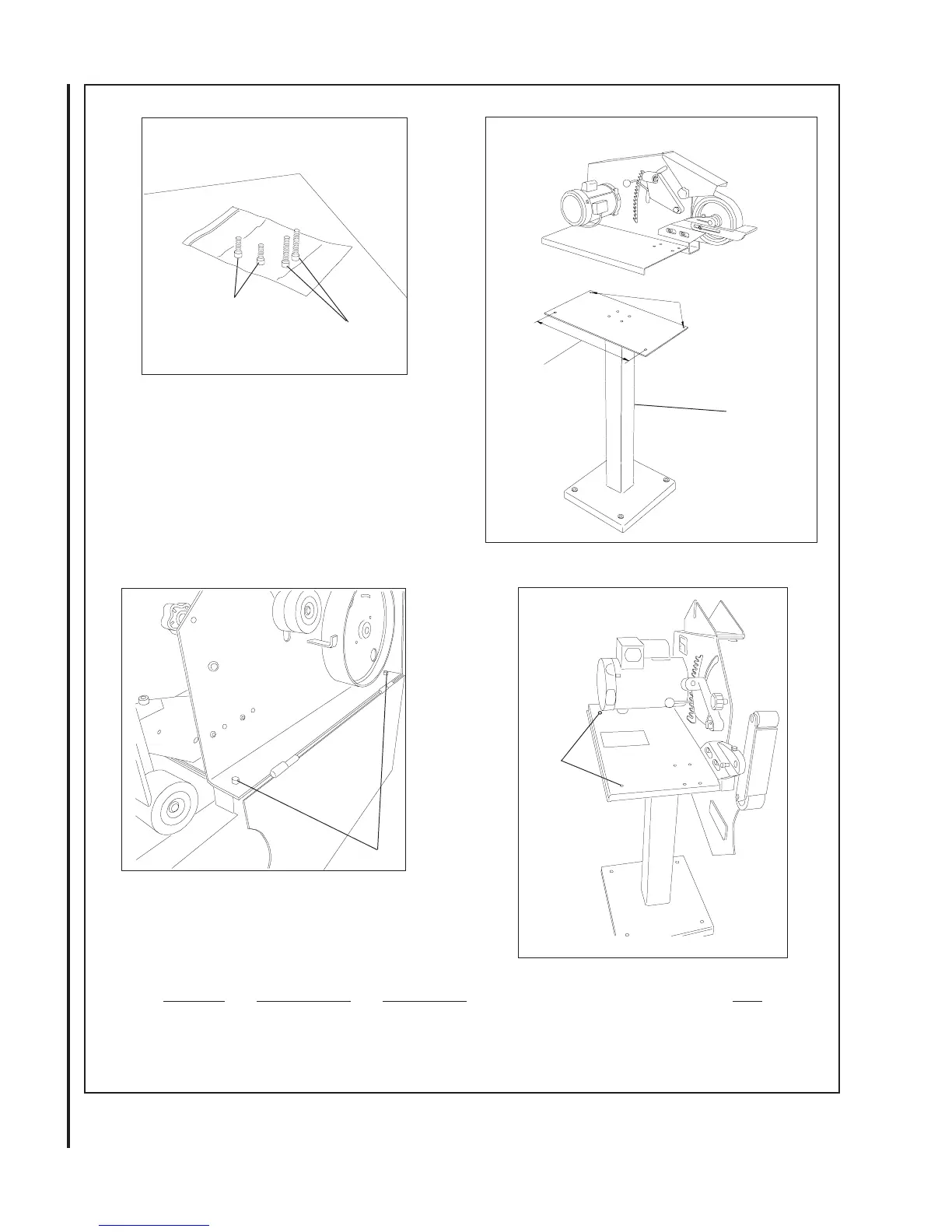

Figure 16: Assembly of Grinding Machine and Pedestal
A
B
C
D
Motor Side
Holes
20 inches
apart
Belt Guard Holes
Approximately
1/2-inch from
corners
Install two 1-
inch long
screws
1
2
3
2
Install two
1 3/4-inch
screws
3
Ref. No. Part Number Description Qty.
1 5248081 Pedestal 1
2 9062121 Socket Head Cap Screw (5/16-18 x 1) 2
3 5511051 Socket Head Cap Screw (5/16-18 x 1 3/4) 2
