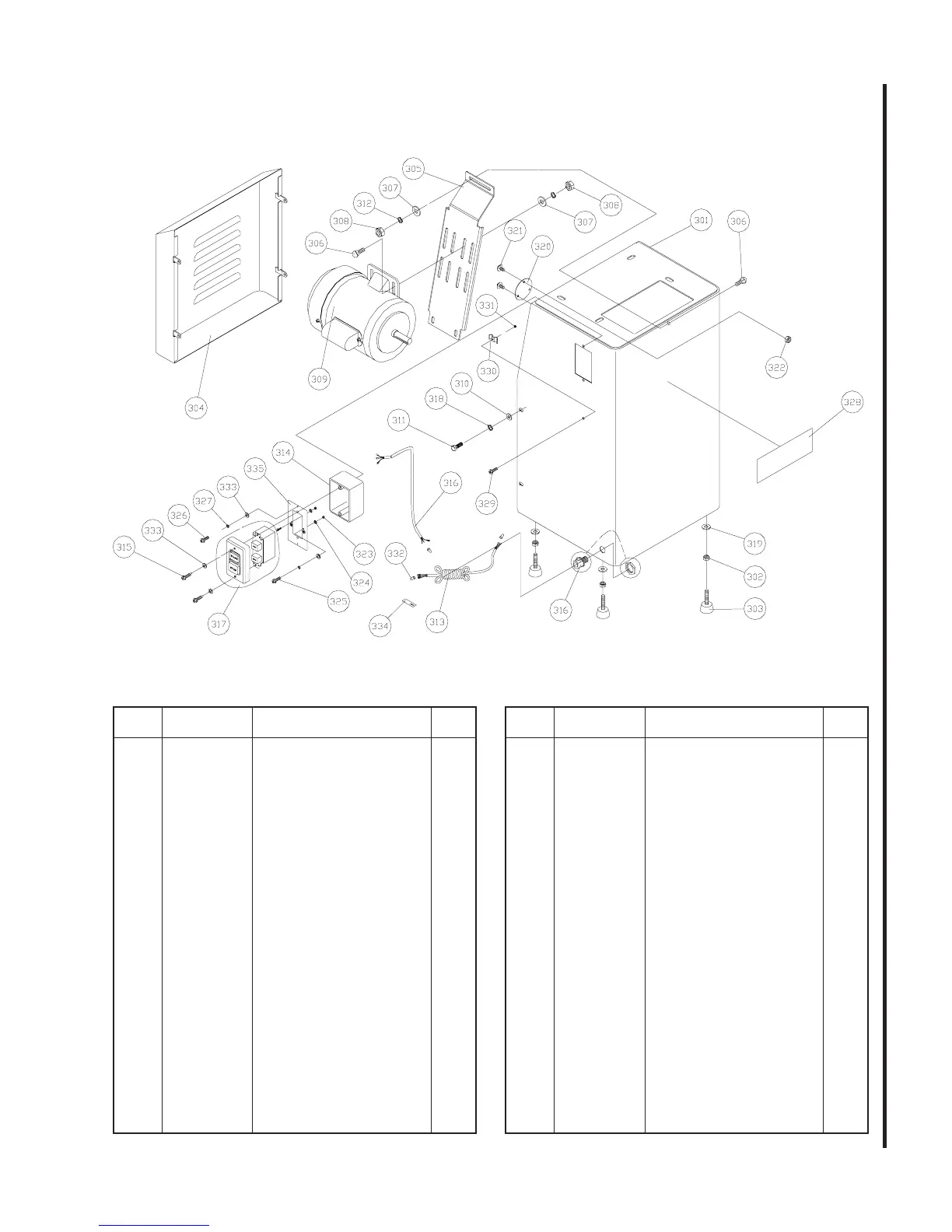

Exploded View - Base Assembly (All Models)
Ref # Part No. Description Qty.
301 5511743 Enclosure 1
302 TS-1540081 Hex Nut, M12 4
303 5511745 Adjustable Mount 4
304 5511729 Large Cover 1
305 5052431 Motor Mounting Plate 1
306 TS-1490031 HHCS, M8 x 20 7
307 TS-1550061 Flat Washer, M8 7
308 TS-1540061 Hex Nut, M8 7
309 5514650 1.5 HP 115/230V 1 Ph. 1
309 5514651 1.5 HP 115/230V 1 Ph. 1
310 TS-1550061 Flat Washer, M8 4
311 TS-1490011 HHCS, M8 x 12 4
312 TS-2361081 Lock Washer, M8 7
313 9133081 Power Cord 1
314 5514703 Switch Box 1
315 5511753 Tapping Bolt w/ Washer 2
316 5511754 Bushing 1
317 9139391 Switch 1
318 TS-2361081 Lock Washer, M8 4
319 TS-2360121 Flat Washer, M12 4
Ref # Part No. Description Qty.
320 4200A-B320 Cover 1
321 4200A-B321 Pan Head Bolt w/ Flange 3
322 TS-1540041 Hex Nut, M6 3
323 TS-1540031 Hex Nut, M5 2
324 TS-0733203 Lock Washer, Ext., #10 2
325 4200A-B325 Pan Head Screw, M5 x 8 2
326 TS-2284082 Pan Head Screw, M4 x 8 2
327 TS-2361041 Lock Washer, M4 4
328 4200A-B328 Label, Name 1
329 TS-1533052 Pan Head Screw, M5 x 16 1
330 4200A-B330 Cord Clamp 1
331 TS-1540031 Hex Nut, M5 1
332 4200A-B332 Wiring Nut 3
333 TS-1550021 Flat Washer, M4 6
334 4200A-B334 Label, Voltage 1
335 4200A-B335 Switch Cover 1
To Next Page
