WIMAXIT M1560CTV2 - Button Description

Customer support:support@wimaxit.com Website:www.wimaxit.com
3
#
Function Description
#
Function Description
1
Micro USB OTG Port
(Connect with wire/wireless
keyboard/Mouse)
6
Standard HDMI Port
(Video/ Audio input port)
2
7
Wheel Button
Push up: + volume;
Push down: - volume;
Short Press: menu
3
USB-C Power Port
(Support USB PD Power)
8
Input Button
( Input source,Menu Exist)
4
Power Indicator Light
Red Color: Standby status/No valid
source;
Blue Color: ON/Input source
detected
Dark: OFF
9
Auxillary 3.5mm
(Connect with Speaker &
Head Phone/Ear Phone)
5
Full-Featured USB-C Port
(Power&Video&Audio input port)
Support DP ALT MODE
10
Speakers 1W*2
(Audio)

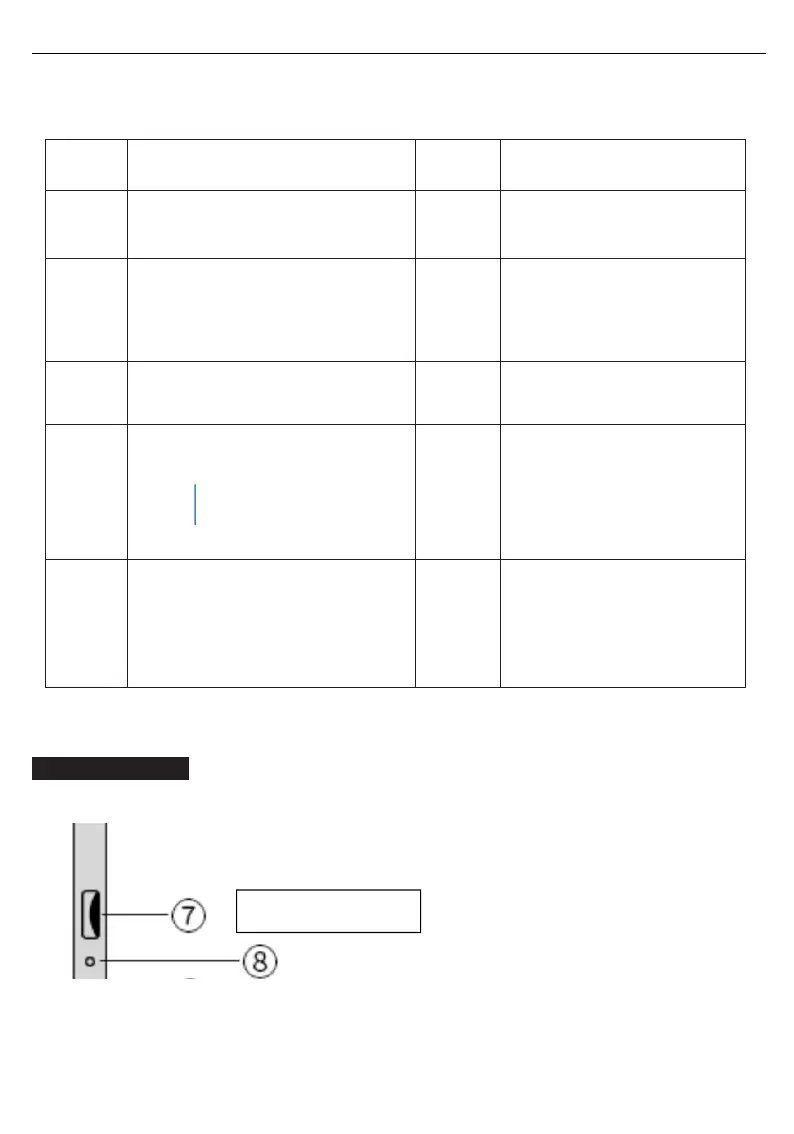

Button Description
Power/ Input
Wheel Button
