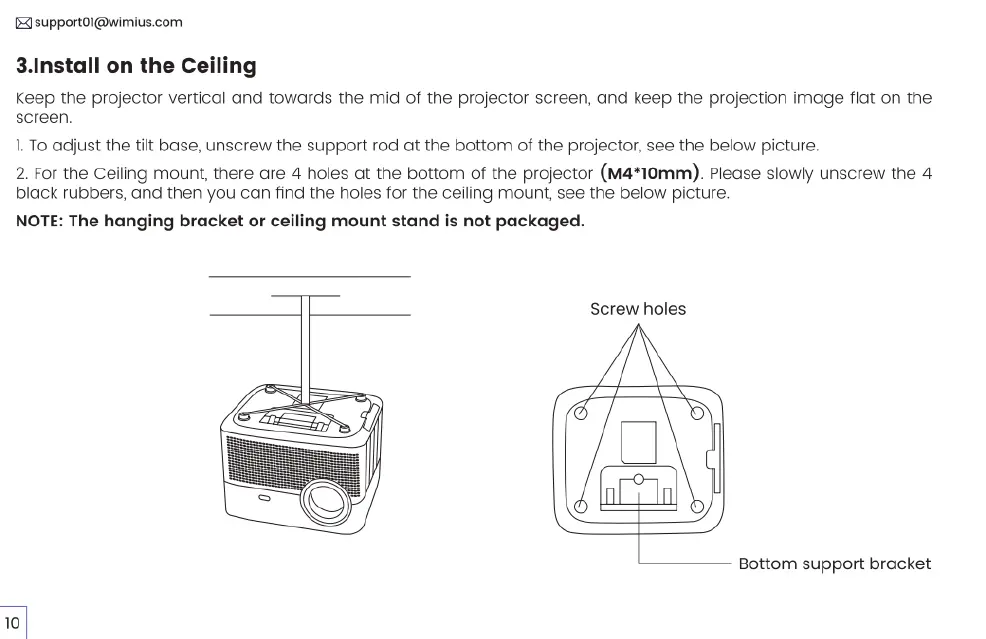

3.Install on the Ceiling
Keep the projector vertical and towards the mid of the projector screen, and keep the projection image fiat on the
screen.
1. To adjust the tilt base, unscrew the support rod at the bottom of the projector, see the below picture
2. For the Ceiling mount, there are 4 holes at the bottom of the projector (M4*10mm). Please slowly unscrew the 4
black rubbers, and then you can find the holes for the ceiling mount, see the below picture.
NOTE: The hanging bracket or ceiling mount stand is not packaged.
Screw holes
LI
fll—o—lfl
Bottom support bracket
