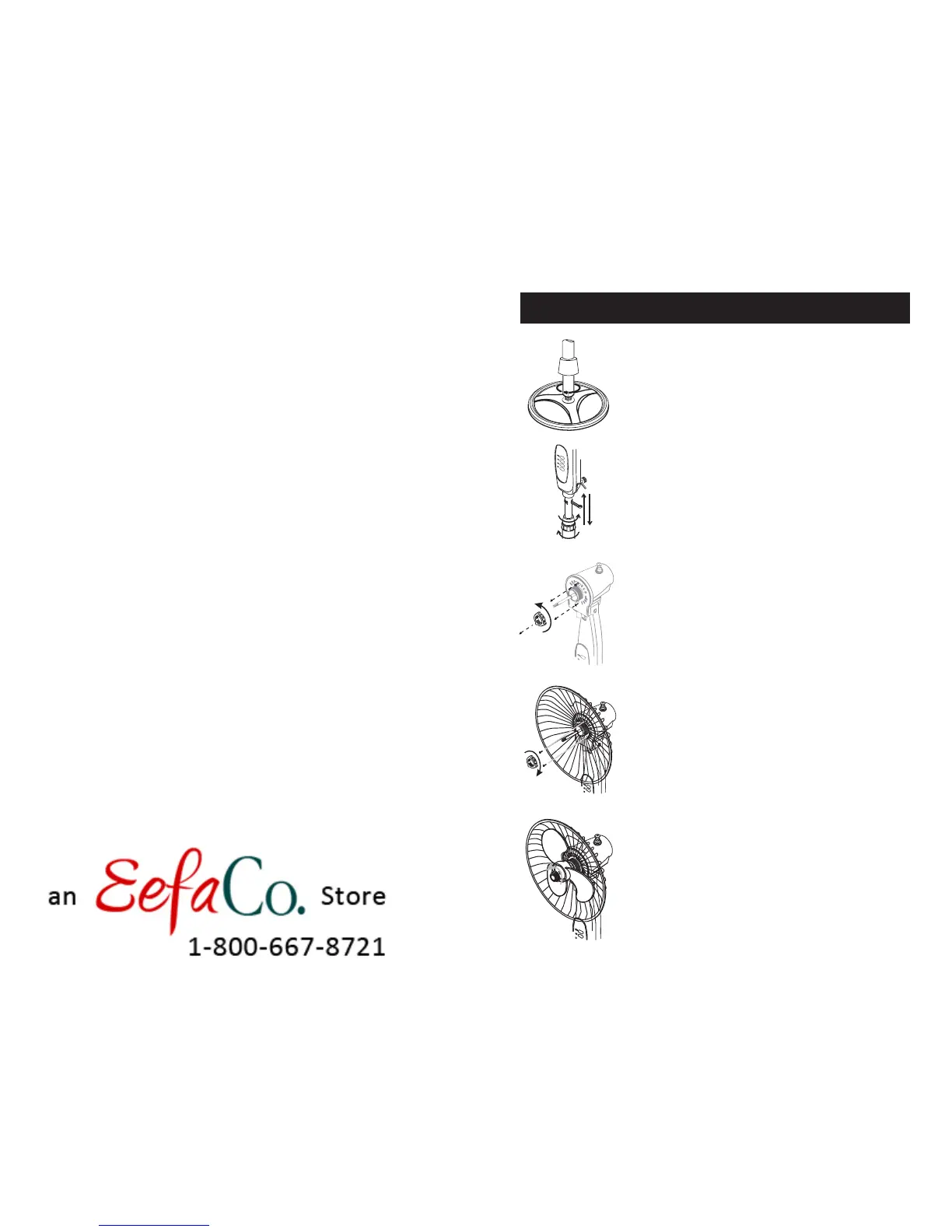

ASSEMBLY INSTRUCTIONS
Important: Assemble the fan before plugging it in.
1. Screw threaded outer pole into threaded base;
Hand tighten until firmly secured; use no tools.
HEIGHT ADJUSTMENT: Loosen the height adjustment
knob (counter-clockwise), adjust the height to the
desired position and tighten the knob (clockwise).
2. Loosen the set screw on the back of the control box
and set the control box onto the inner pole. Then
tighten the set screw to secure the control box and
motor head to the inner pole. When adjusting the
inner pole, always keep the water proof cover
matched with the height adjustment knob.
3. Unscrew the grill lock nut by turning it counter-clock
wise. Unscrew the rear grill set screws (the two
screws at the 12 o‘clock and 6 o‘clock positions above
and below the motor shaft). Mount the rear grill (with
the handle in the upright position) to the motor housing
by matching its 3 holes to the 3 round pins on the front
motor housing. Then secure the rear grill set screws to
lock the rear grill to the front motor housing. Reinstall
and tighten the grill lock nut.
4. Insert the fan blade onto the motor shaft by matching
the slot of the blade with the D-shaped cut out on the
motor shaft. Secure the blade by screwing the blade
cap onto the shaft counter-clockwise.
