windirect TOTAL CRUNCH EVOLUTION - Step 1 Assembly; Main Frame Assembly; Step 2 Assembly; Seat and Pipe Assembly


2A
x1

2B
x1


2C
x1
x1


x2

x1

x2


1C
1B
1A
1
3
2
4
20
19
25

2A
2B
2C
9
13
12
25
25
22
23

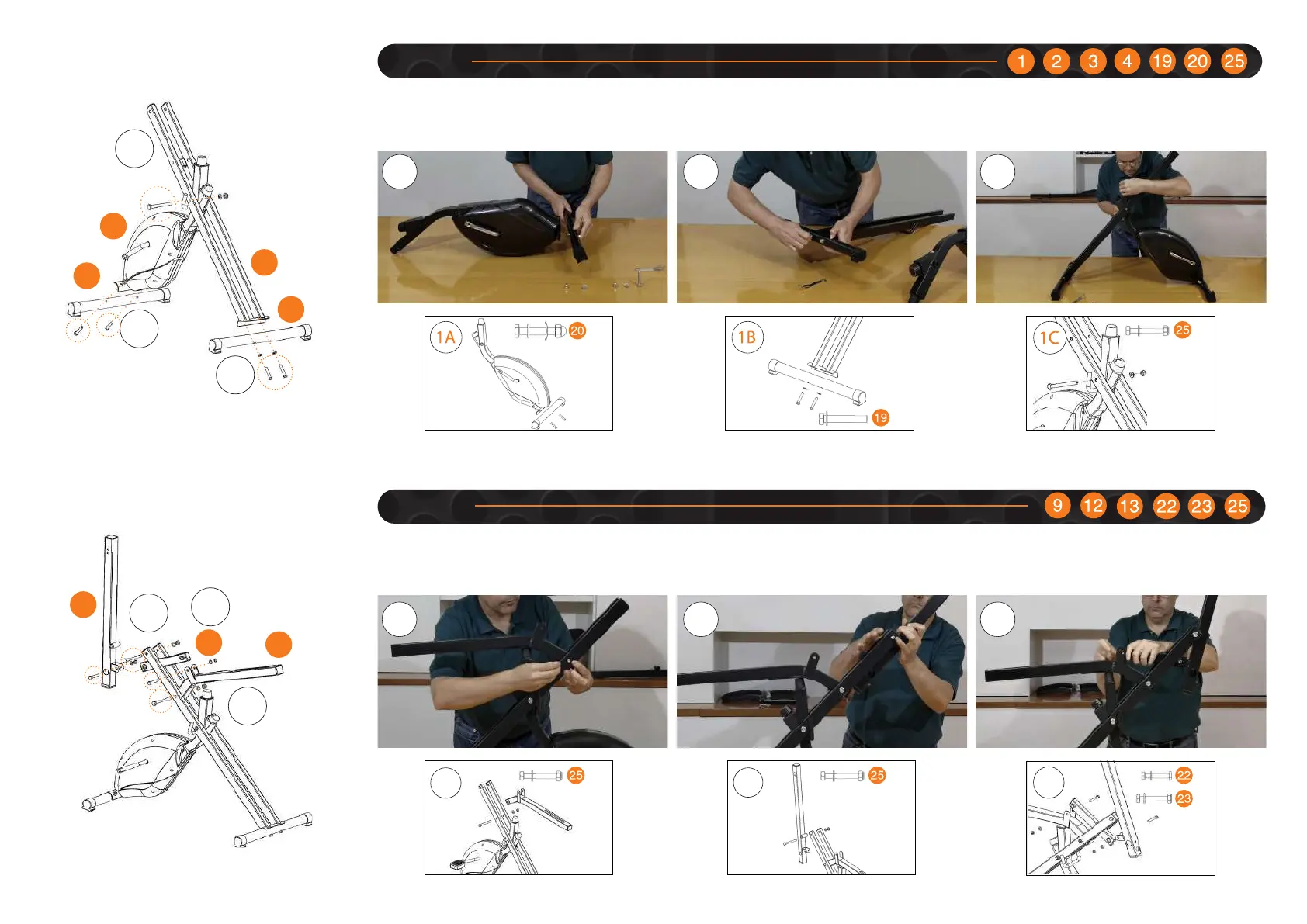

STEP 1
- Fix the rear stabilizer (4) to the main frame tube (1) (1A), using the screw 20 (2 pcs.).
- Fix the front stabilizer (3) to the rear frame pipe (2) (1B), using the screw 19 (2 pcs.).
- Assemble the main frame tube with the rear frame pipe (1C), using the screw 25 (1 pc.).
1A 1B 1C
STEP 2
- Assemble the seat tube (12) to the rear frame pipe (2A), using the screw 25 (1 pc.).
- Assemble the vertical pipe (9) to the rear frame pipe (2B), using the screw 25 (1 pc.).
- Assemble the large piece (13) to the seat tube and the vertical pipe (2C), using the screw 22 (1 pc.) and 23 (1 pc.).
2A 2B 2C
