1
n
11 12
3
24
4
17
16
21
2

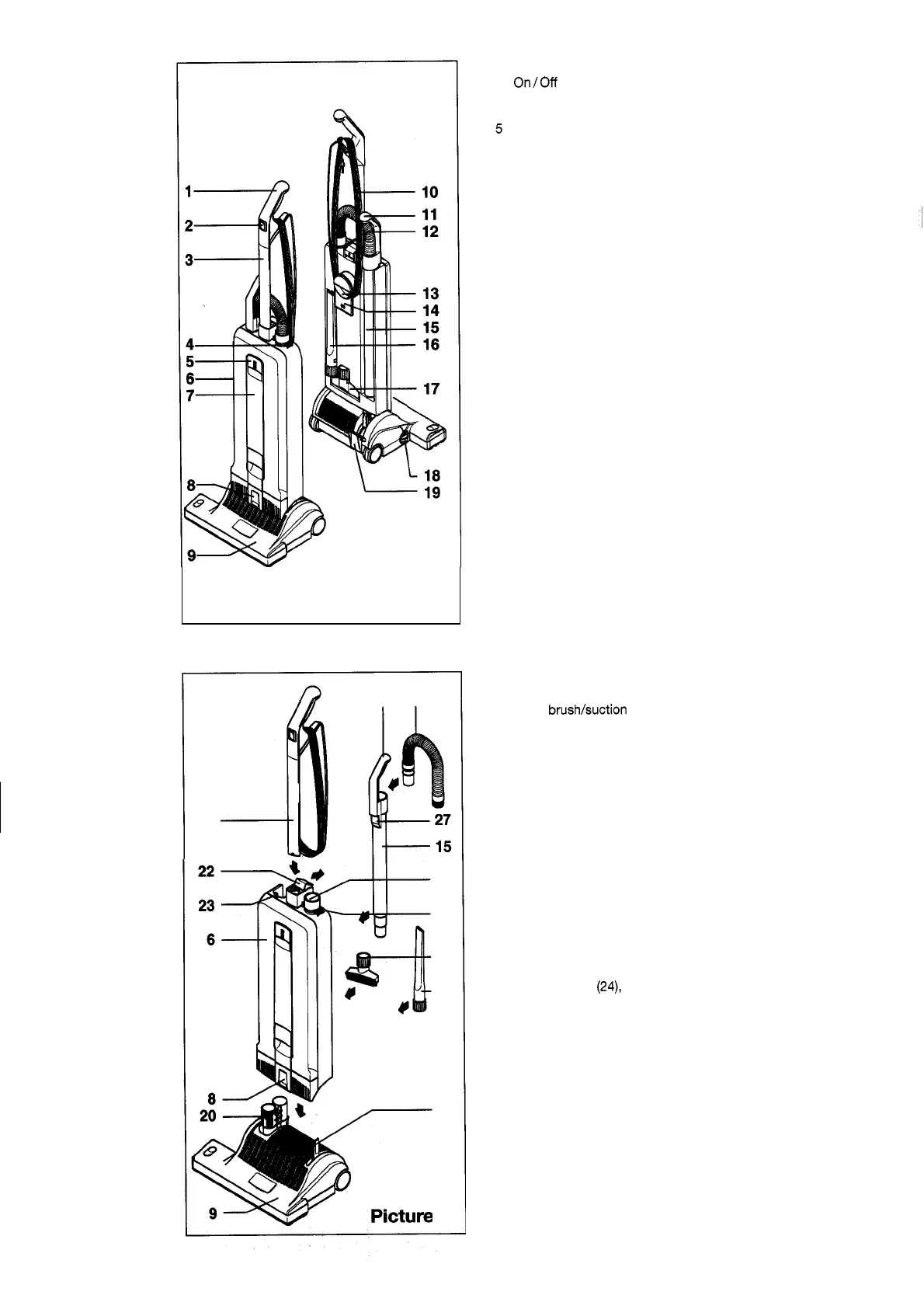

1
Handle grip
2
On/Off switch
3 Handle assembly
4 Retaining ring
5 Cover release flap
6
Dust bag housing
7
Front cover
8 Housing release button
9
Base with brush
10 Cable
11 Attachment tube handle
12 Hose
13 Carrying handle
14 Cable hook
15 Attachment tube
16 Crevice nozzle
17
Upholstery nozzle
18 Pile adjustment knob
19 Foot pedal
Preparation
Place the brush/suction head on a flat surface
with the neck (20) and the support lever (21)
upright. Hold the dust bag housing vertically
and place over neck and support lever. Push
firmly down
so
that the housing release (8)
snaps closed.
Lift the catch (22) then slot the handle
assembly into the top of the dust bag housing
(6) and push firmly down.
When the handle has been pushed down as
far as
it
will go press catch (22) down. If the
handle is not pushed fully down the machine
will not work.
Insert attachment tube (15) into the channel at
the back of the machine. Locate the handle
grip (1 1) on the holder (23).
Push the black end of the hose into the
connecting tube
(24),
so
that it clicks into
place.
Insert crevice nozzle and upholstery nozzle
into the recesses in the back of the machine.
