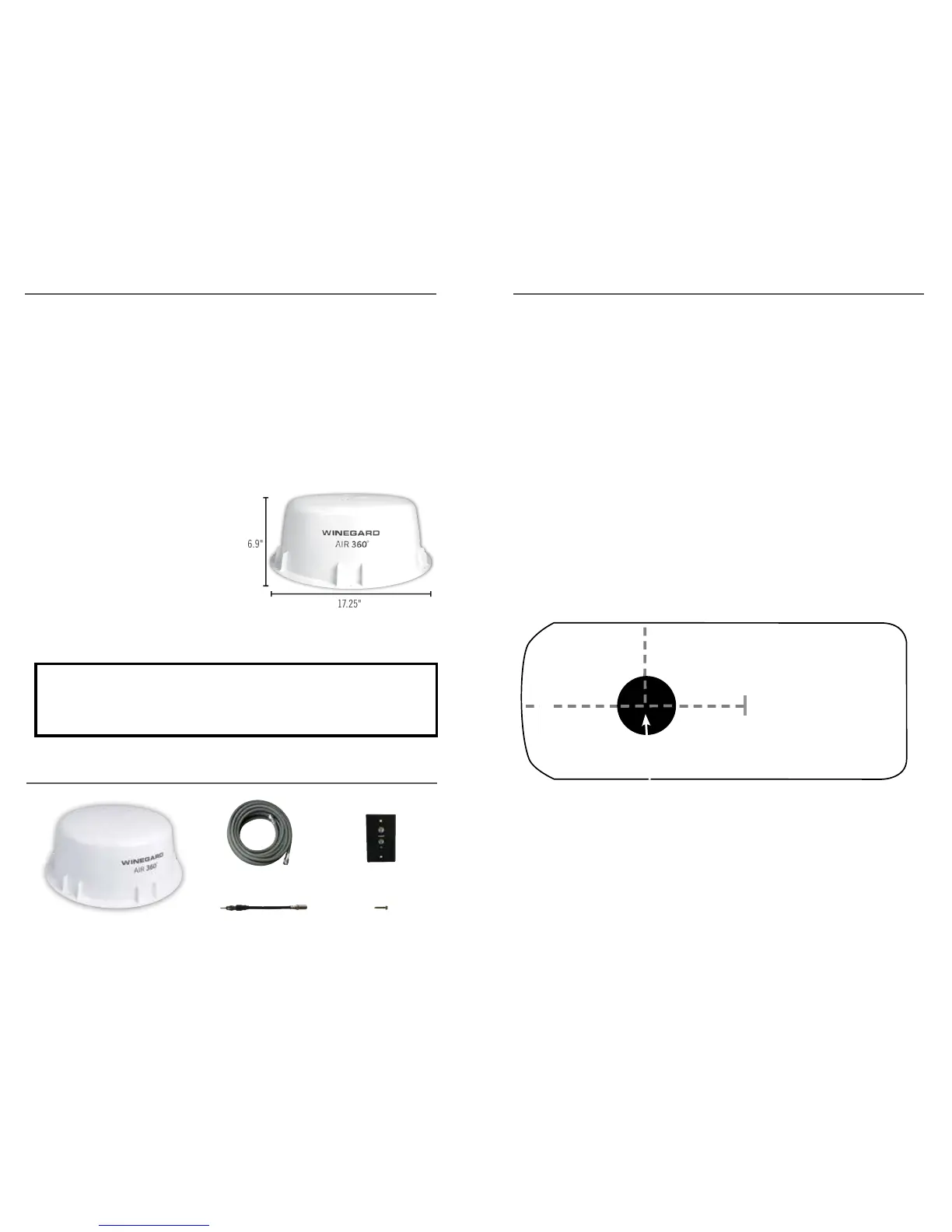

Specs / Features
*Antenna reception may vary based on transmitting antenna tower height, lobe pattern of the
transmitter, height of the receiving antenna, weather conditions, and terrain on receiving path,
including trees, buildings and hills.
Power Supply/Wall Plate
w/Hardware
Antenna with AM/FM antenna
20' Coax Cable
Parts
Safety Recommendations
– Do not attempt to install this system in the rain or under any wet conditions.
– Do not paint this antenna. Painting the antenna will void the warranty.
24"
18"
Obstruction
Front of Vehicle
18"
Top of Antenna
Before mounting the antenna, determine
a location for the wall plate/power
supply. Keep in mind the following:
• A coaxial cable will have to run from
the power supply to the antenna
and from the power supply to each
television.
• An additional coax cable will have to
run from the AM/FM antenna to the
radio (coax not provided).
• Coax cables will have to be routed
through the roof directly into the
perimeter of the antenna. It will not
seal correctly for the cables to exit
under the flange. Failure to install
correctly could cause damage to the
antenna and possibly the RV.
• A 12 V connection must be made to
the back of the power supply.
Then, choose a location for the antenna
that meets the following requirements:
• Offers enough support for a secure
installation
• Maintains adequate clearance from the
edge of the roof and any obstructions
– clearance distance of 24 in. needed
from center of antenna to front of the
vehicle
– clearance distance of 18 in. needed
from center of antenna to nearest
obstruction and to the edge of the roof
Choosing a Location for the Antenna & Power Supply
• Designed for RV use
• Durable UV and weather
resistant
• 360° Signal Reception
• High Definition VHF/UHF
Digital Signals
• ATSC 3.0 Ready
• Amplified
• State of the art pHEMT
technology with 4G LTE
Filter
• Range – Up to 50 miles*
• AM/FM
• Height – 6.9"
• Diameter of dome –
17. 25"
• Frequency Range:
– VHF 54 to 216 MHz
– UHF 470 to 700 MHz
– AM 520-1710K
– FM 87.5-108 MHz
• Gain – 18 dB
• Noise – 1 dB
• Impedance – 75 ohms
• Power Supply – DC 12V
Mounting Screw (10)
Coax to Audio Cable
