Specifications / Features
• Designed for RV use
• Durable UV and weather resistant
• 360° Signal Reception
• High Definition VHF/UHF Digital Signals
• ATSC 3.0 Ready
• Amplified
• State of the art pHEMT technology with
4G LTE Filter
• Range – Up to 55 miles*

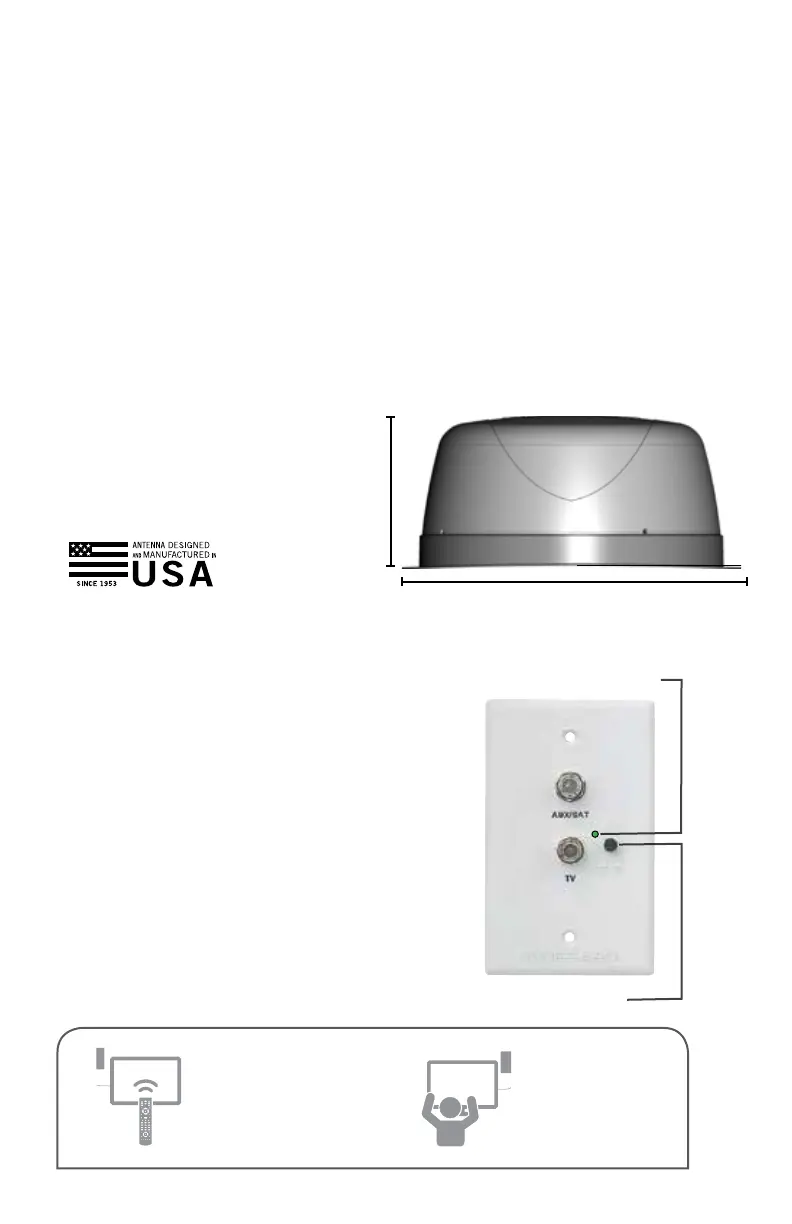

• Height – 8.05"
• Diameter of dome – 18.2"
*Antenna mileage figures based on average
terrain. Actual receiving distance will vary
based on transmitting power, transmitting
antenna tower height, global pattern of
transmitter, height of receiving antenna,
weather conditions, & terrain between receiving
path including trees, buildings, hills,
mountains, etc.
Scan monthly
for programming
updates.
Perform Channel Scan:
Select Menu, then
Channel Search
Scan. Watch.
• Frequency Range:
–
VHF 54 to 216 MHz
–
UHF 470 to 700 MHz
–
FM 87.5-108 MHz
–
AM 520-1710 KHz (Model AR-360J only)
• Gain – 18 dB
• Noise – 1 dB
• Impedance – 75 ohms
• Power Supply – DC 12V
• (1) WiFi antenna**
• (2) LTE antennas**
** For use with the Winegard Gateway
WINEGARD COMPANY
Tolerances
unless noted:
18.20
8.05
AIR 360 PLUS DIMENSIONS
TRADE SECRET
The information and data contained herein is secret and shall not be disclosed,used or duplicated
for any purpose whatsoever without written permission of WINEGARD COMPANY, 3000 Kirkwood ST.,
Burlington, Iowa 52601. This legend shall be marked on any reproduction hereof in whole or in part.
Reciept of this document shall be deemed acceptance of the conditions specified herein.
.XX
.XXX
HOLE
ANGLE
ECN NO. DATE REV DESCRIPTION BY
P/N:
CONNECT_2_PREWIRE_BASE_DOME_2
DRAWN BY: D. NEUWEG
SCALE: 0.200 DATE: Mar-28-19
SHEET
1
of
1
DWG:
AIR_360_PLUS_DIMENSIONS
8.05” Ht.
18.2” Dia.
First time users must run a channel
scan to receive maximum programming.
Ensure the antenna power supply (wall plate)
is in the “ON” position and the green indicator
light is illuminated.
A new scan will find any new channels that
have been added in your area as well as finding
any channels that have changed or moved
since the last scan.
While the steps to perform a channel scan may
vary between televisions or compatible devices,
on the following page are some general
guidelines to follow.
Power indicator light is
green when power is on.
Power button
To Next Page
