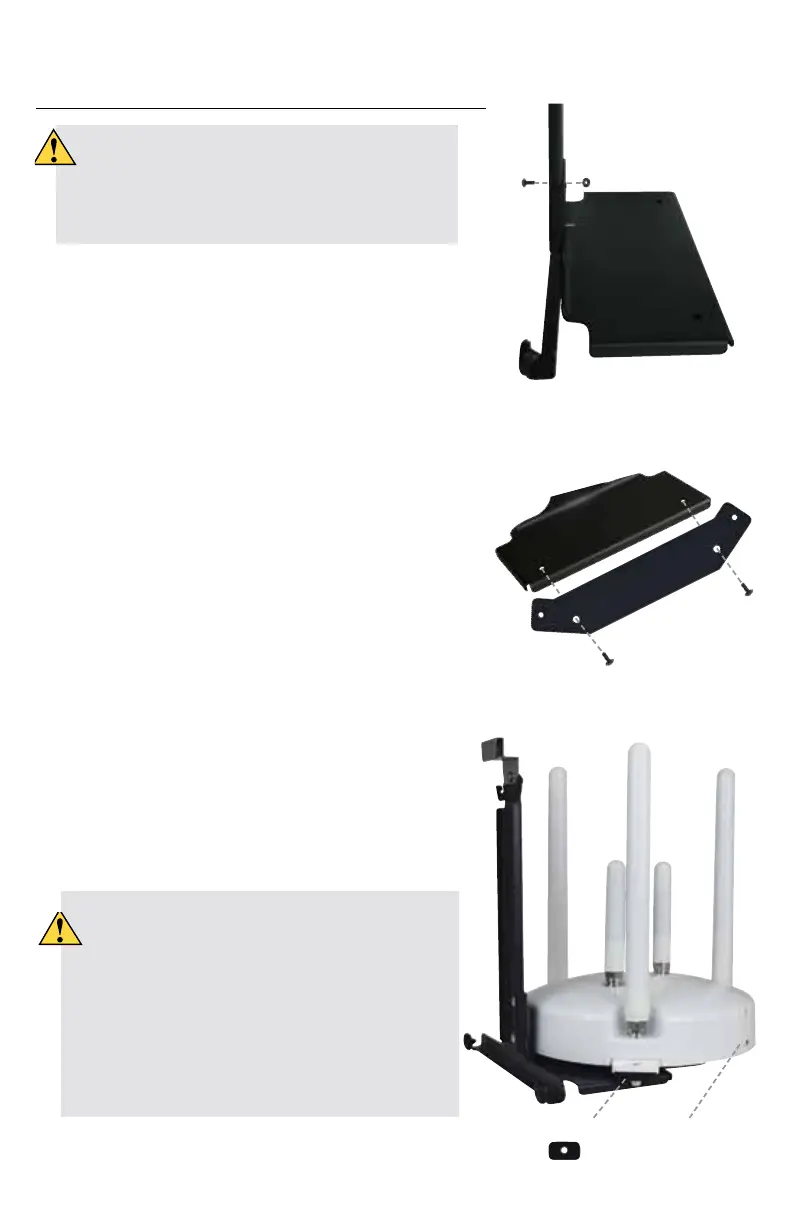

Securing the ConnecT Extender
to the Mount
Insert the other provided 10-32 x 1/2” screw
into the top hole of the base and back support.
Tighten to the matching 10-32 nylock nut.
Align the holes on the ConnecT adapter plate
with the holes on the window mount base,
making sure the other 2 holes on the adapter
point back towards the back support.
Insert the 1/4 – 20 x .5 screws (2) through the
adapter plate and into the window mount base.
Tighten each screw with the matching 1/4 – 20
nylock nut.
Next, you will need the ConnecT extender,
(2) spacers, (2) 10-32 X 3/4” screws, and (2)
matching 10-32 nylock nuts. With the cable
entry plate of the ConnecT pointing away from
the back support, either on the left or the
right side, place a spacer between each of the
ConnecT’s feet and the ConnecT adapter plate.
Insert a 10-32 X 3/4” screw through each
foot/spacer/adapter (2) and tighten with the
matching 10-32 nylock nuts (2).
Failure to install in accordance with product
manufacturer’s installation and assembly
instructions could result in property
damage, personal injury, and/or death.
1.
Only hang the window mount assembly on
the window when the vehicle is parked and
the antenna is in use; store the window
mount assembly when not in use.
Model MT-SM30 window mount should only
be deployed when the vehicle is stationary.
DO NOT use while the vehicle
is moving. Remove prior to traveling.
2.
4.
3.
Back
Step 1
Steps 2-3
Step 4
Spacer
Cable entry
plate
To Next Page
