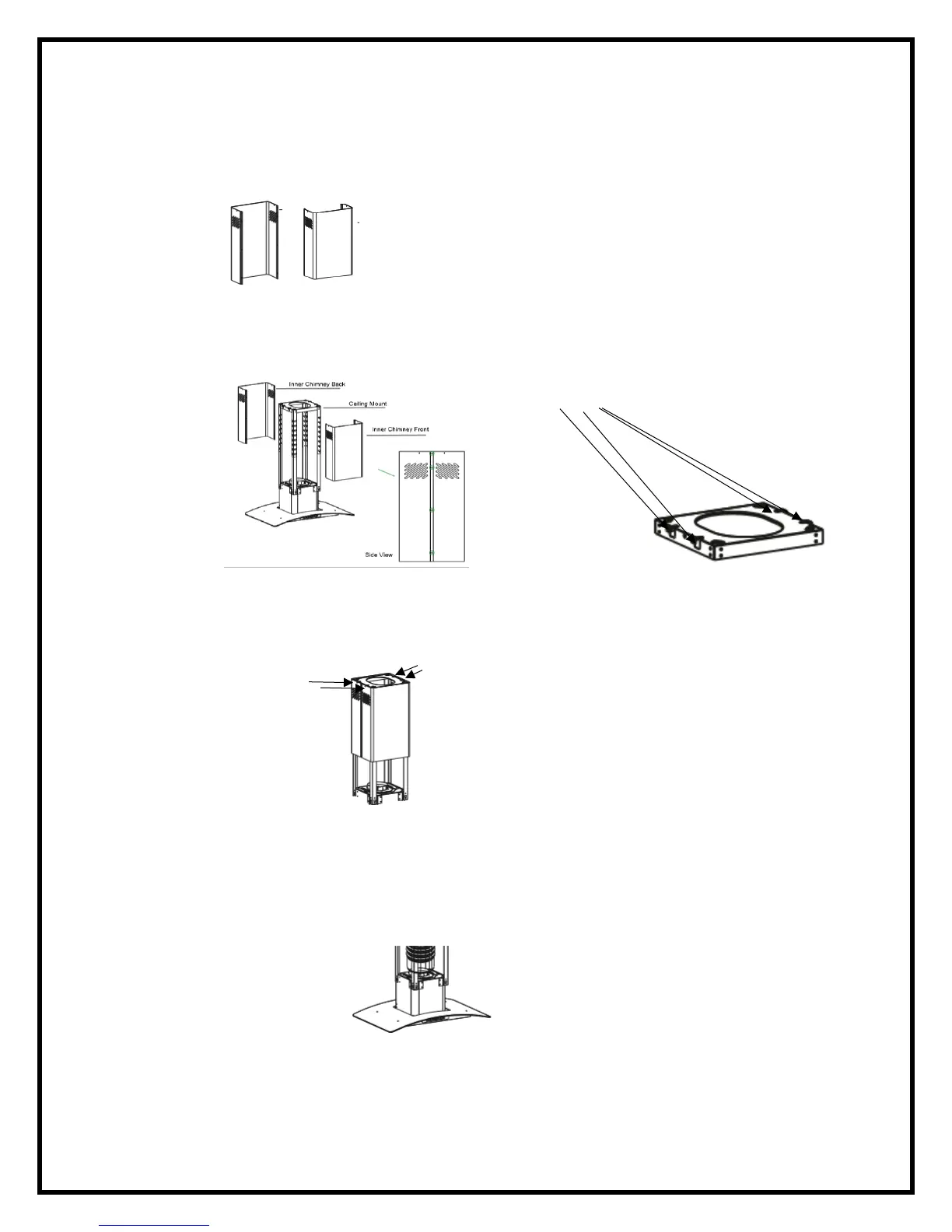

19. Detach the inner duct cover (H) by removing the (2) set screws near the upper middle of the attached duct.
Inside the duct, there are tongue and groove clips for stability. Lift on side of the duct to detach.
20. Bring the two duct pieces together over the support frame brackets and reattach the (2) set screws. Make
sure the tongue and groove clips are realigned. Slide attached duct over the ceiling mount. Be sure the duct
slides over the (2) mounting brackets on each side.
21. The duct should cover the (2) mounting brackets on the sides of the ceiling bracket. Screw in (4) #6 X 3/8 SM
screws through the predrilled holes in the duct work into the 4 mounting brackets.
22. Install (1) round flexible duct exhaust hose (F) to round vent air flap (C) (attached to range hood on top of
unit) and secure with duct tape. Note: If you are choosing the ductless/recirculating mode do not install
the duct exhaust hose (F).
