Winkhaus blueMatic EAV4 - Page 61

blueMatic EAV4 / EAV4+ 509555319
3
EN
Quick installation guide
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
Motor housing EAV4/EAV4+

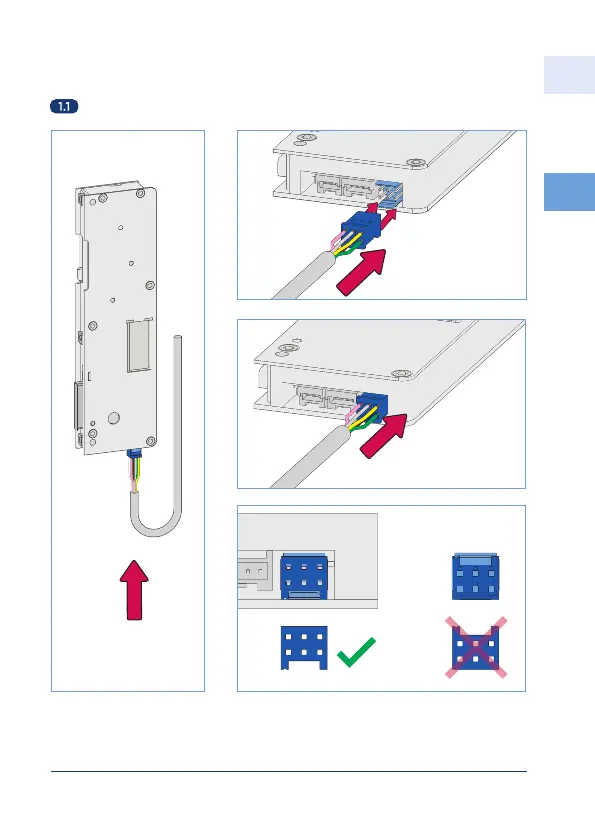

Figure 3.1-8: Assembly of blue motor housing plug (observe cable reserve)
