Winkhaus blueMatic EAV4 - Assembly of blue motor housing plug

blueMatic EAV4 / EAV4+ 509555318
3
EN
Quick installation guide
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

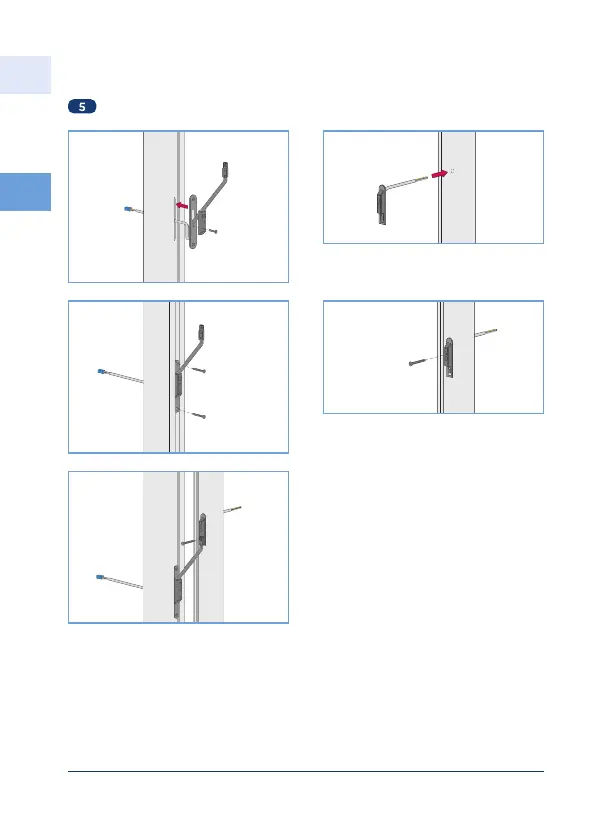

Figure 3.1-7: Mounting the cable transition
1. Insert the sash part with cover plate into the milling, observe cable reserve!
2. Screw on sash part
3. Frame part through the Ø 8 mm through-hole through the door frame (incl.
cable reserve in frame!)
4. Fasten frame part with Ø 3 x 20 mm screw
5. Secure frame part with Ø 3 x 20 mm screw
Cable transition
1
2
3
5
4
