6-11
SECTION 6 –
ELECTRICAL
A label on the panel states the amperage rating
and circuit protected for each breaker.
NOTE: Breakers are labeled on panel.
Arrangement may vary according to
appliance and equipment options.
Battery Charge Meter
See related item under “Systems Monitor
Panel” in Section 4 - Appliances and Systems.
Battery Boost Switch
See Section 3 - Driving Your Motorhome for
information on the Battery Boost switch.
Automotive Chassis and House
12-Volt Circuit Breakers
A label on the Automotive Chassis and House
12-Volt Circuit Breaker panel states the
amperage rating and circuit protected for each
breaker.
NOTE: Breakers are labeled on panel.
Arrangement may vary according to
appliance and equipment options.

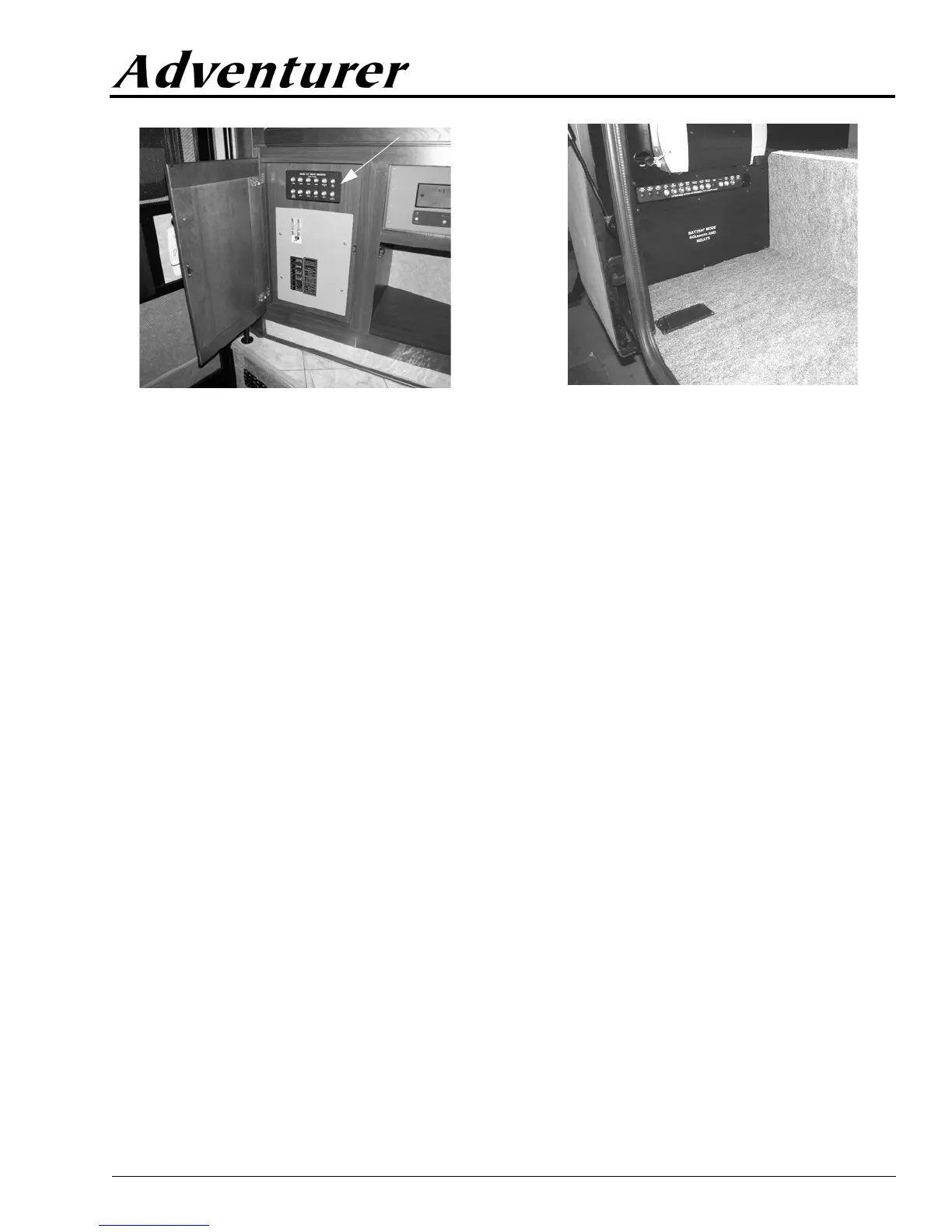

House 12-Volt Circuit Breaker Panel
-Typical View
Automotive Chassis and House
12-Volt Circuit Breaker Panel
(Located inside passenger compartment)
-Typical View
To Next Page
