SECTION 2 –
SAFETY AND PRECAUTIONS
2-8
Escape Window (Optional)
–If Equipped
The bedroom escape window is secured by
four safety latches at the sides and bottoms of
each window.
To open, release all four latches and push
window out.
1. Side Latches (2) - Pull down toward bottom of
window frame.
2. Bottom Latches (2) - Pull toward the left-hand
side of the window frame.
3. Push window open.
Using Slider Windows As
Emergency Exits
Some motorhomes are required to have a
slider window as an alternate exit. This window
will be marked EXIT and have a red-handled
latch.

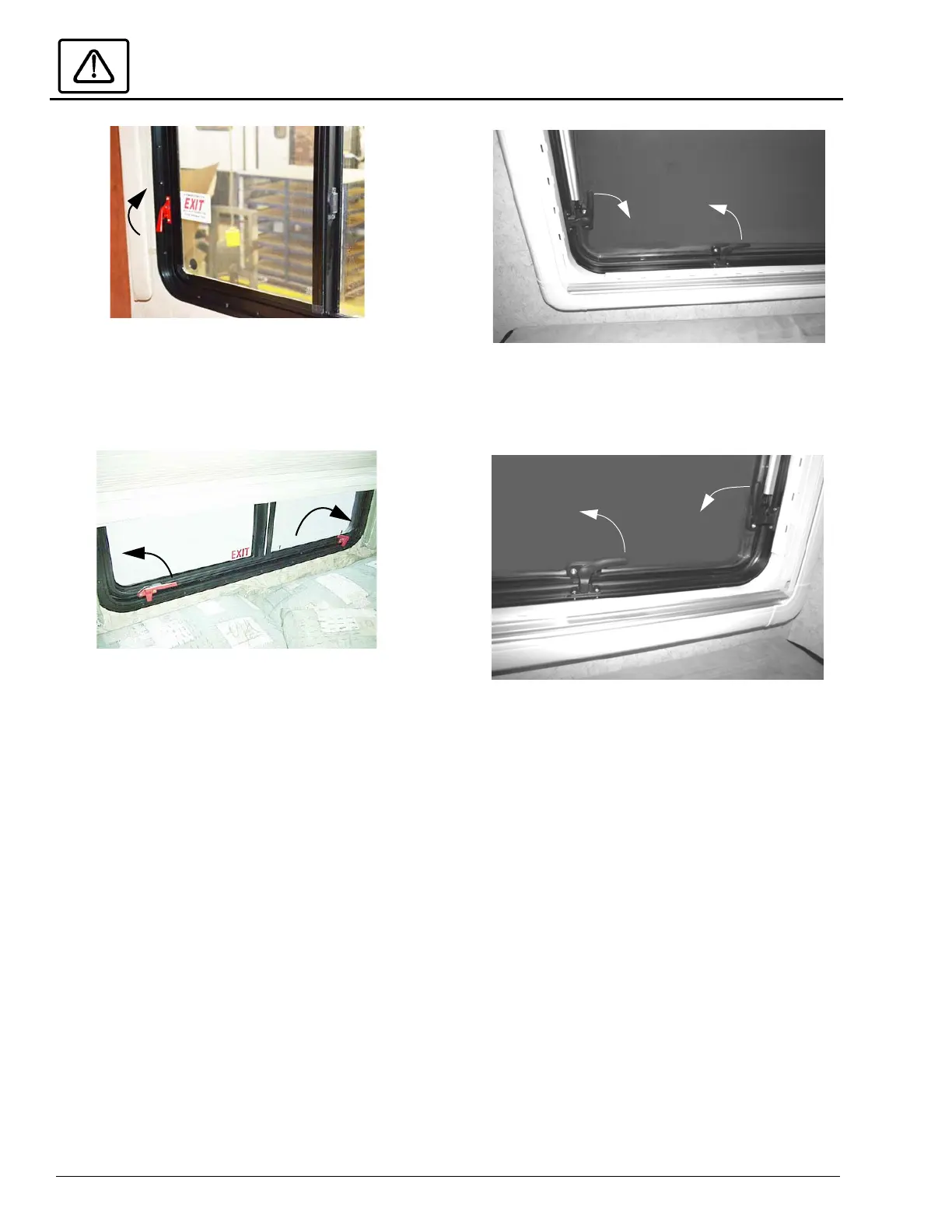

Escape Window
(Lift both red safety latch handles UP and
push window OUT)
-Typical View
Escape Window
(Lift both red safety latch handles UP and
push window OUT)
-Typical View
Escape Window
(View of interior left-hand side of window)
-Typical View
Side
Latch
Bottom
Latch
Escape Window
(View of interior right-hand side of window)
-Typical View
Side
Latch
Bottom
Latch
