SECTION 9 –
FURNITURE AND SOFTGOODS
9-2

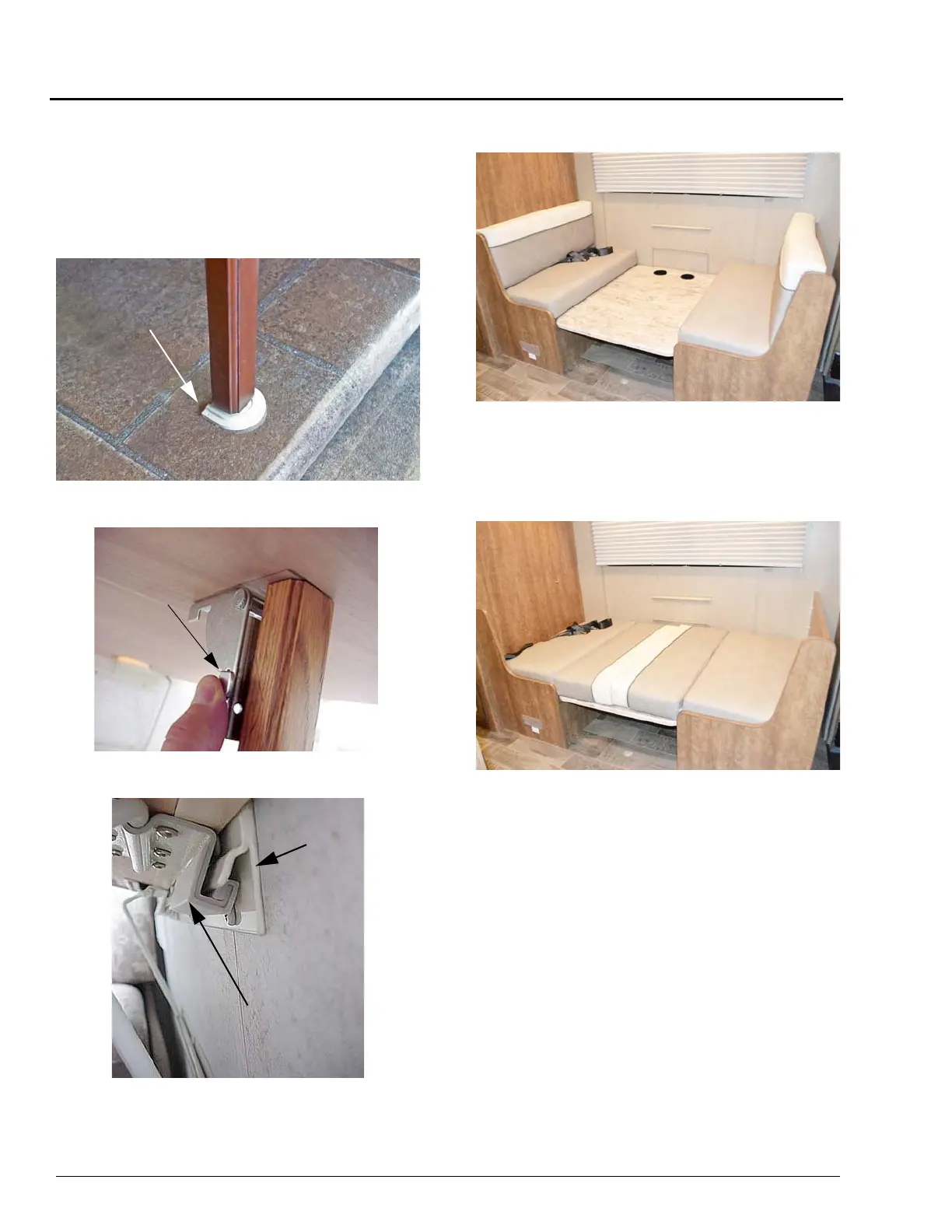

Dinette to Bed
1. Remove both dinette back cushions and set
aside.
2. Lift both dinette seat cushions upward.
3. Release the table leg from the floor support
bracket.
4. Release the catch on the table leg brace and
fold the leg up against the bottom of the table.
5. Remove the table from the wall support
bracket by lifting the end of the table.
6. Then lower the table to rest on the cleats
attached to each dinette bench.
7. Arrange dinette back cushions over table to
complete the bed conversion.
NOTE: Bolster cushions may be used in place of
dinette back cushions on some models.
Bed to Dinette
Reverse steps to convert back into dinette
seating.
Table
Bracket
Wall
Support
To Next Page
