SECTION 6 –
ELECTRICAL
6-10
CIRCUIT BREAKERS AND
FUSES – HOUSE 12-VOLT DC
All 12-volt circuits and equipment in the
coach area of the motorhome are protected by
either a fuse panel or breaker panel. When a
circuit is overloaded or a short develops in any
part of the system, a fuse or breaker will shut
down that circuit. If this happens, turn off all
affected lights or appliances and reset the breaker
or replace the fuse with a new one of equal
amperage rating.
House 12-Volt Fuses
A label on the panel states the amperage rating
and circuit protected for each fuse.
The fuse panel is located on the right-hand
side of the Power Converter.
The fuse panel accepts only blade type plug-in
fuses. Always replace fuses with those of the
same amperage rating.
Battery Charge Meter
See related item under “Systems Monitor
Panel” in Section 4 - Appliances.
Battery Boost Switch
See Section 3 - Driving Your Motorhome for
information on the Battery Boost switch.

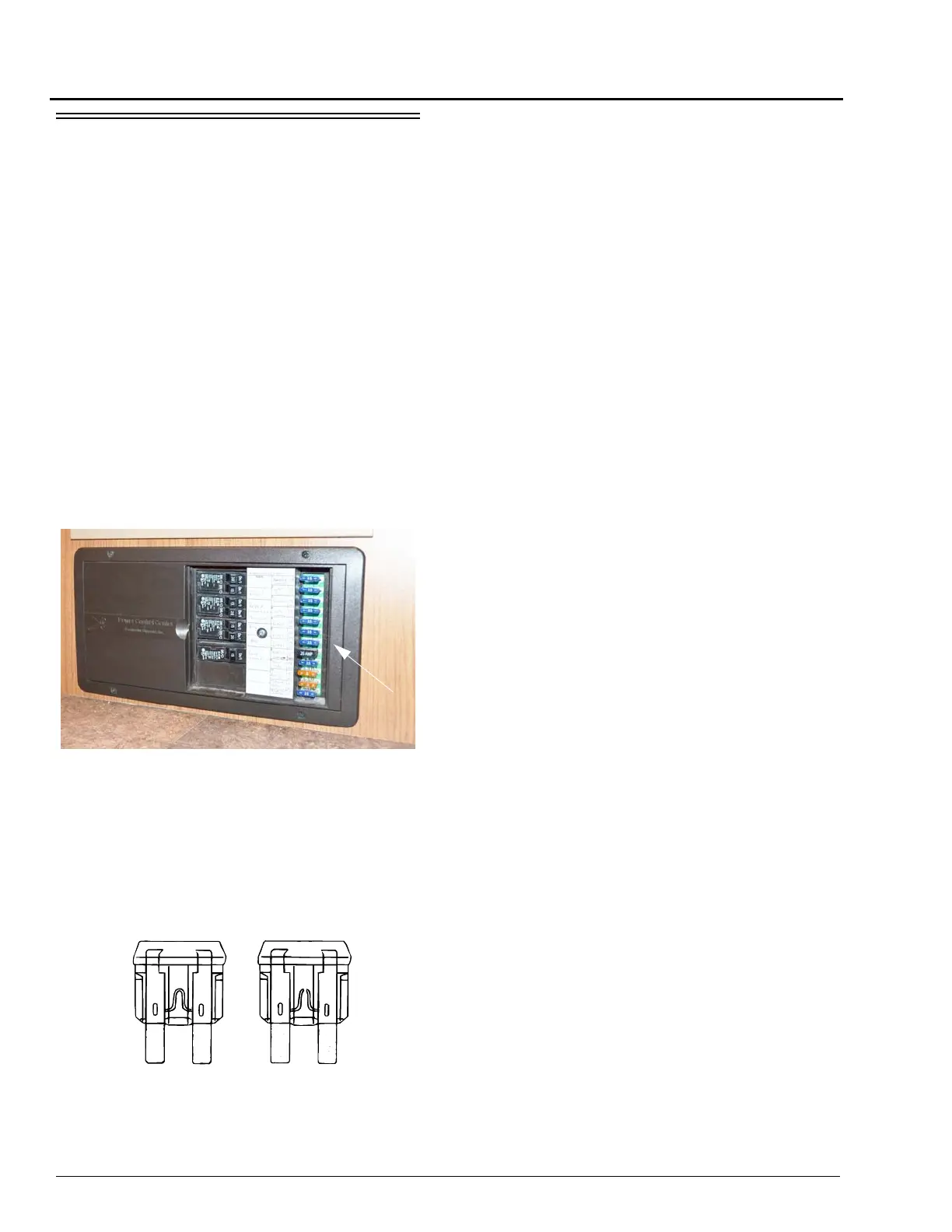

House 12-Volt Fuses
(Located on right-hand
side of Power Converter)
-Typical View
Functional Non-Functional
