SECTION 8 –
ENTERTAINMENT
8-6
The digital antenna is equipped with a built-in
amplifier for maximum VHF and UHF
programming.
Operating the Digital Antenna
1. Turn the Video Selection box ON (if equipped
with an on/off switch).
2. Turn ON the Signal Meter Power switch
(located on the side of the Signal Meter).
3. Rotate the Attenuator Dial fully
CLOCKWISE.
4. Press Release Button on the Rotational Knob
and rotate antenna (until maximum number of
LED lights illuminate on the Signal Meter).
NOTE: LED lights will illuminate from left to
right. All LED lights may not illuminate,
depending on signal strength.
5. Rotate Attenuator Dial COUNTER-
CLOCKWISE until the last illuminated LED
light flickers.
6. Rotate antenna to illuminate the last flickering
LED light.
7. Repeat Steps 5 and 6 to pinpoint signal
reception.
NOTE: Refer to television manufacturer’s
instructions to scan for available
channels.
Further Information
See the antenna manufacturer’s user guide
provided in your InfoCase for complete operating
and maintenance information.
CABLE TV AND SATELLITE
DISH CONNECTIONS
The cable TV and satellite dish connections
are located in the water service center.
TV DIGITAL SATELLITE
SYSTEM WIRING
Your coach is pre-wired for installation of a
digital satellite TV system. Coaxial cable and
high definition component cable connections are
available to hook up your satellite receiver and
are located in a cabinet near the TV.
Never allow the antenna to touch
electrical power lines or any other
electrical wires.

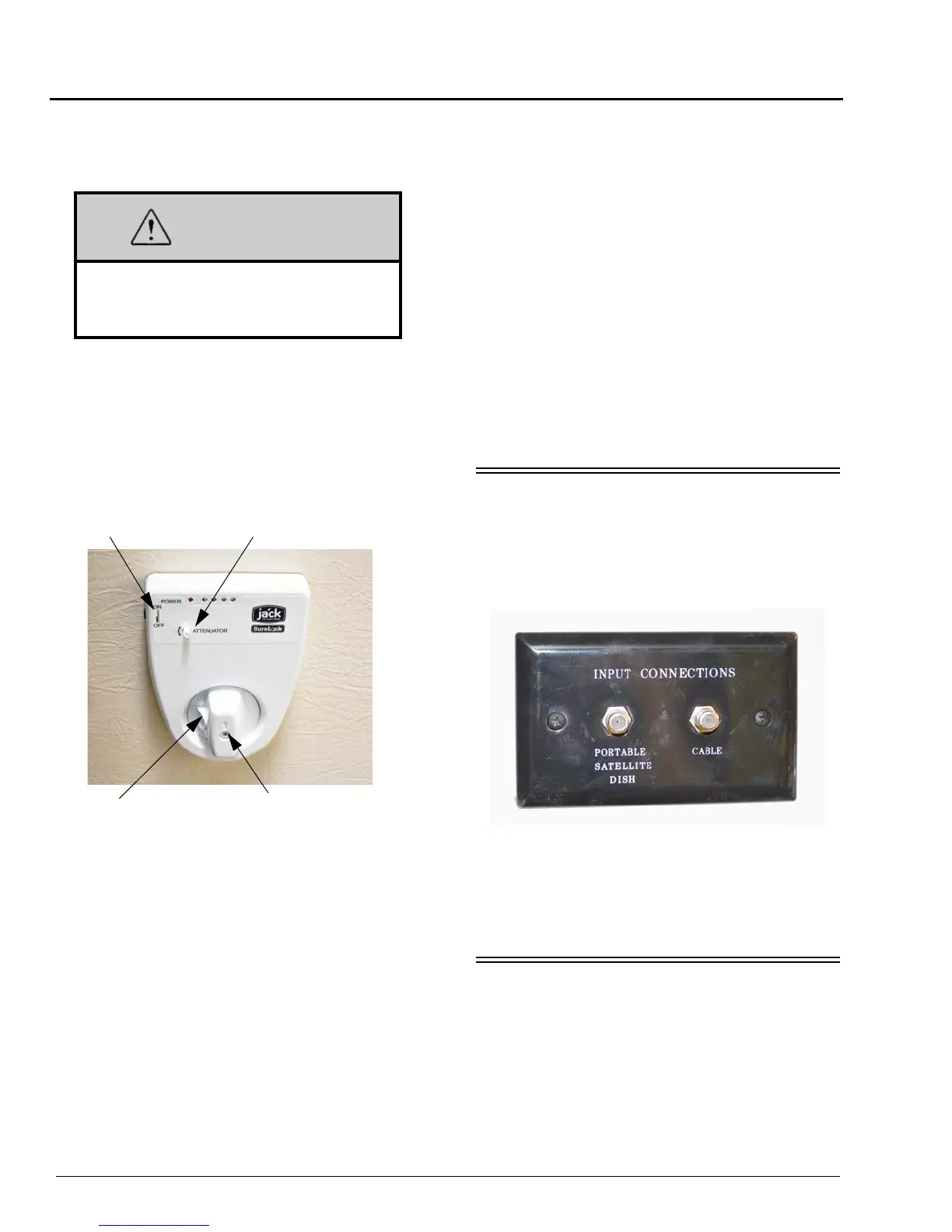

Digital Antenna Signal Meter
(Located on ceiling)
• Signal Meter
Power Switch
• Attenuator Dial
• Release
Button
• Rotational Knob (arrow
indicates which direction
antenna is pointing)
Exterior Connections for
Cable TV and Satellite Dish
(Located in water service center)
-Typical View
