If an error is detected on your slide system, the
LED light on the control panel will blink an error
code. If an error code appears, see the
manufacturer’s user guide in your InfoCase to
determine the problem. The error code must be
cleared prior to operating the room. To clear the
error, perform the following steps (one at a time)
to reset the system:
• If none of the “Battery Voltage or Circuit
Breaker Problems” troubleshooting
recommendations reset the system, remove
the touchpad from the monitor panel (a
screwdriver will be needed) and press and
hold the RESET button (“Set Stops/Clear
Fault”) located on the back of the touchpad for
5 seconds. The slideout is now ready to be
extended. Press OUT on the touchpad to
extend the room.
• If touchpad was removed, reinstall to the wall.
• Take your vehicle to an authorized service
center for repair.
Further Information
See the slideout room operating guide
included in your InfoCase for further instructions
and troubleshooting information.
SLIDEOUT ROOM
TROUBLESHOOTING
(LIPPERT)
–If Equipped
Battery Voltage or Circuit Breaker
Problems
If the slideout room will not work:
• Turn the Chassis Battery Disconnect switch
OFF and then ON again. This will, in many
cases, reset power to the slideout system.
• he chassis battery may be low on charge.
Press and Hold the Battery Boost switch
(located on the dash) while pressing the
interior slideout control switch. This
momentarily connects the house batteries to
assist in slideout room operation.
• The circuit breaker may be tripped. The
circuit breaker, labeled “Slideout Power” is
located on a panel on an interior wall of the
passenger side storage compartment just
behind or ahead of the entrance door.

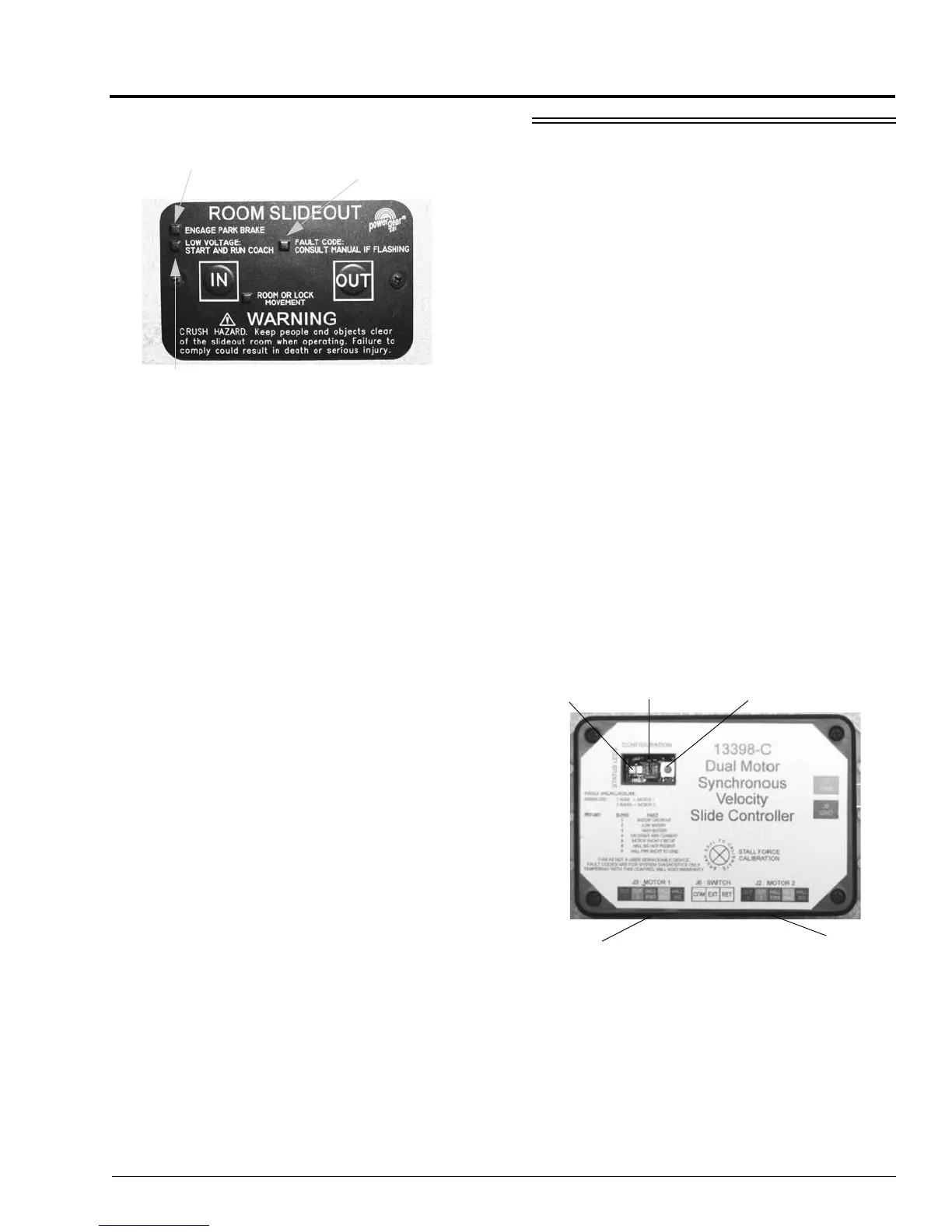

• Light will flash fault
code if system
malfunctions
• Light will flash if
park brake not set
• Low Voltage
Indicator
Slideout Touchpad
(Located near monitor panel)
-Typical View
Slideout Room Controller
(Located in a driver or passenger side
compartment, depending on model)
- Remove panel to access
•Status
LED’s
• Motor
Direction
• Mode
Button
• Motor 1
Connection
• Motor 2
Connection
