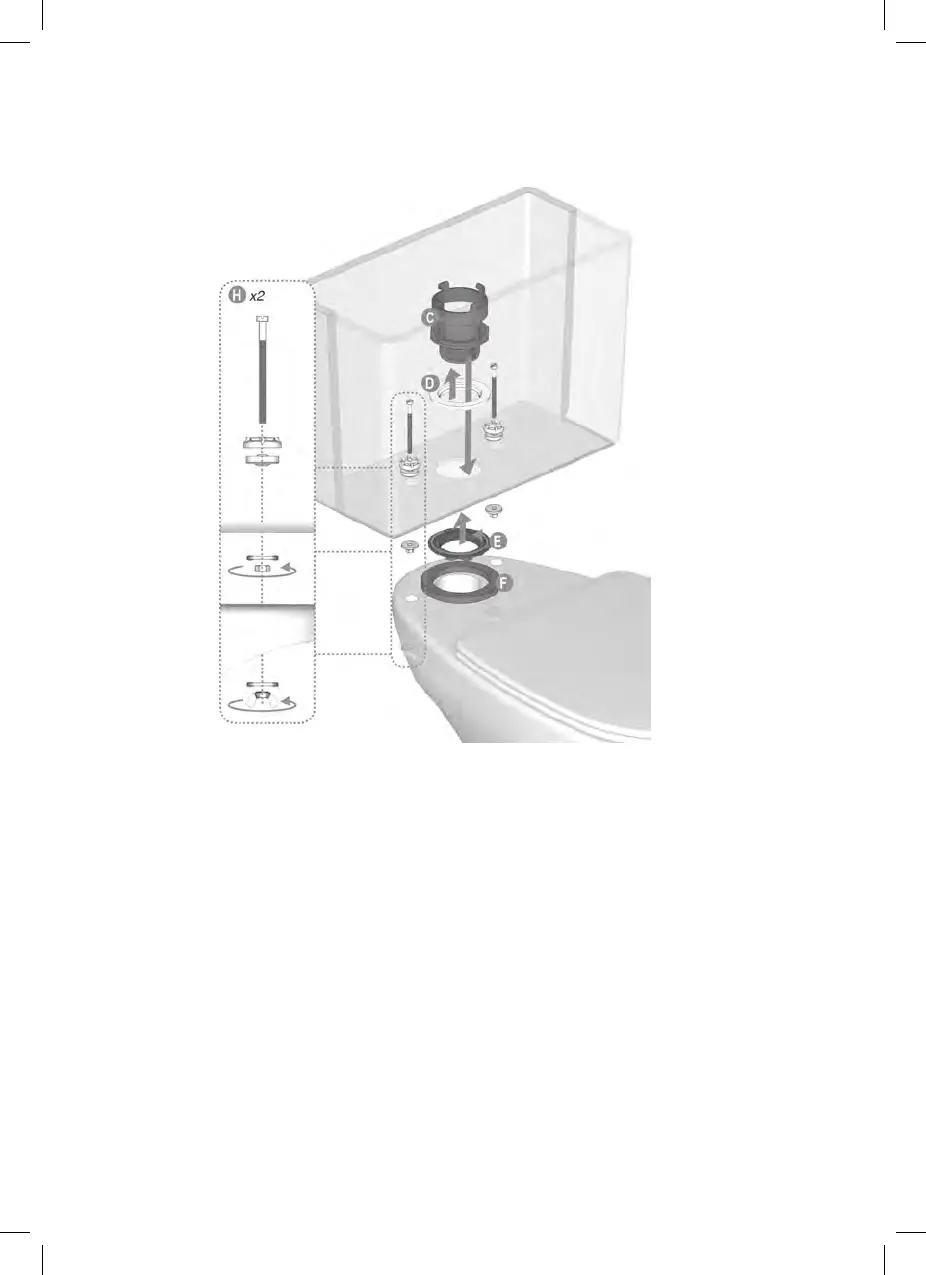

Fitting base and bolted close coupled kit
4 - Remove cistern from wall and pan.
5 - Replace the bolted close coupling kit (item H).
6 - Fit sealing washer (item D) onto base (item C) - sealing washer
to be fitted on inside of cistern.
7 - Fit the backnut (item E) handtight and 1/4 turn with suitable
spanner.
8 - Fit close coupling washer (item F) to threaded tail of base.
9 - Fit cistern.
Please Note: make sure that the cistern is drained of water before
removing and water supply is turned off.
3
