7
 9 DC48V power supply, which offers power to the drivers of the stepper motors
 10 DC24V power supply，supply power for MPC6535 / 6565
 11 Driver of the Z-axis stepper motor(optional part)
 12 Driver of the Y-axis stepper motor
 13 Connecting wire of the laser tube
 14 Signal cable of the laser power supply.

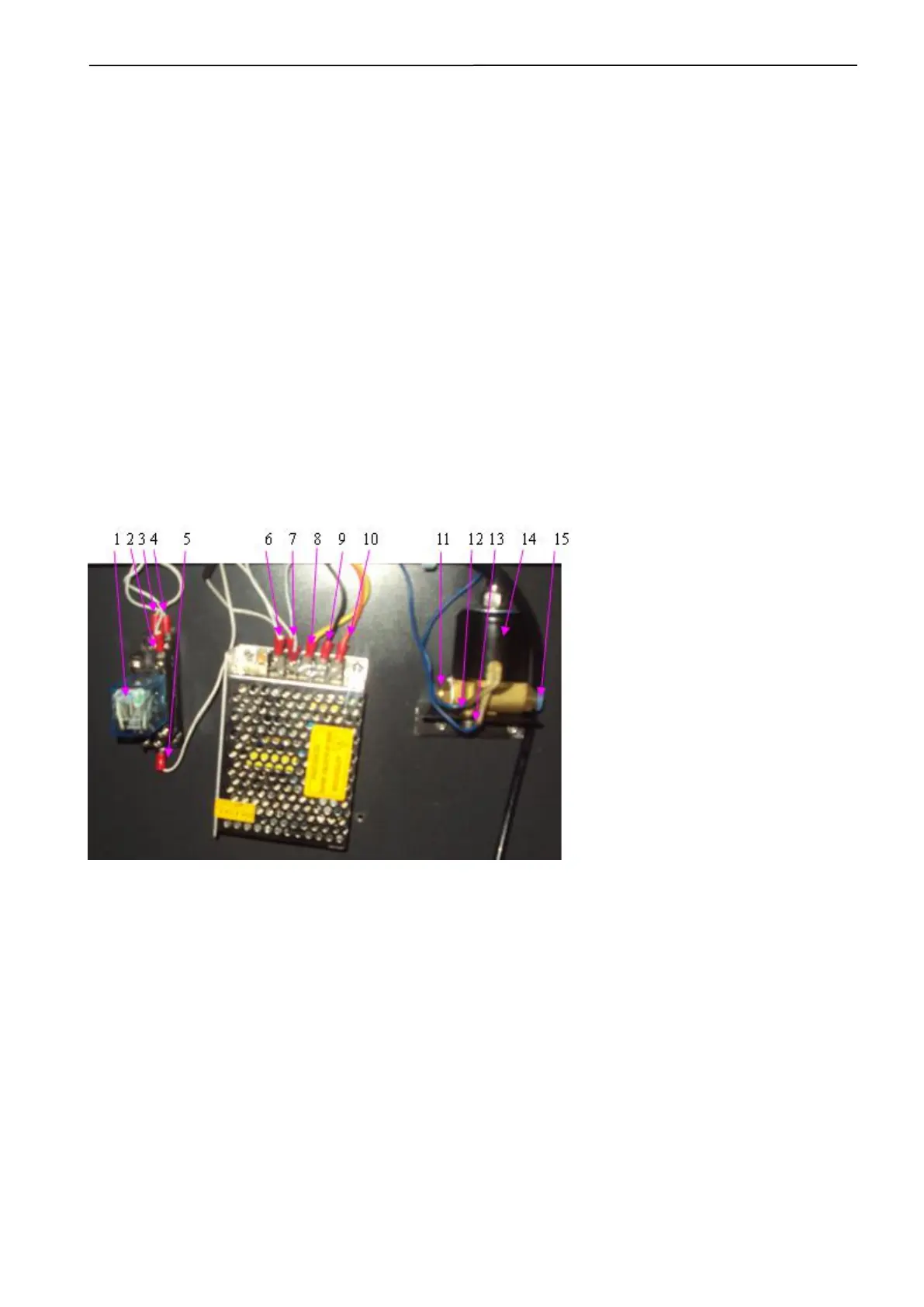

Sketch map of the solenoid valve（Optional device）
 1 DC24V relay
 2 Pin 13 of the relay, connected with the control box 6535
 3 Pin 12 of the reply, connected with the ground wire of the DC24V power supply;
 4 Pin 14 of the reply, connect with the +24V of power supply DC24V;
 5 Pin 8 of the reply, connect with the solenoid valve;
 6 Ground wire of the power supply DC24V;
 7 +V of the DC24V power supply;
 8 The power supply of the DC24V;
 9 Negative electrode of the DC24V power supply;
