WISYCOM s.r.l. - Via Spin, 156 - I-36060 Romano d’Ezzelino (VI) - Italy - MTP30-eng-b04.doc
Tel. (Ph.). +39 0424 382605 - Fax +39 0424 382733 - http:// www.wisycom.com
- e-mail: sales@wisycom.com
MTP30 470 ÷ 870 MHz UHF HAND-HELD TRANSMITTER
T
T
E
E
C
C
H
H
N
N
I
I
C
C
A
A
L
L
S
S
P
P
E
E
C
C
I
I
F
F
I
I
C
C
A
A
T
T
I
I
O
O
N
N
S
S
1
Switchable channels 320 allocated by 8 groups of 40 channels (in the 470 ÷ 870 MHz range), quickly selectable with dedicated buttons
2
Switching window 70 to 100 MHz, depending on band (see below code table):
1 470-550 MHz 2 520-590 MHz 3 560-660 MHz 4 630-730 MHz 5 700-800 MHz 6 770-870 MHz
3
Frequencies Quartz PLL frequency synthesizer circuit (25 kHz step)
Frequency stability
▪ ± 2,5 ppm (in the rated temperature range)
▪ ± 2.5 kHz (in the rated temperature range)
Temperature range -10 ÷ +55 °C
Max RF power
▪ 50 mW (ERP) when high power selected
▪ 10 mW (ERP) when low power selected
Spurious emissions < 2 nW
Modulation wideband FM, with 50 µs pre-emphasis
Nominal deviation ±40 kHz (Peak deviation = ±56 kHz)
Telemetry feature MTP30 transmits also a digitally modulated sub-carrier, suitable for:
▪ tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation
AF input connector Configurable on ‘mic’ display menu in 3 options:
▪ ’2 wires’: Æ gain selectable -40 ÷ +40, no bias voltage
▪ ‘2 wires + bias’: Æ gain selectable -20 ÷ +40, 5.5 V bias voltage (4k7 internal resistance)
▪ ‘3 wires + bias’: Æ gain selectable -20 ÷ +40, 5.5 V bias voltage (4k7 internal resistance)
AF input level 80 dB adjustable range from -60 dBu (775 uV) to 20 dBu (7.75 V) at nominal deviation (1 kHz), adjustable in 2 dB steps
Max. input level +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
Noise-Reduction ENR (Wisycom Extended-NR), with independent Attack-time and Recovery-time
AF bandwidth
▪ 45 Hz ÷ 21 KHz (3dB)
▪ 55 Hz ÷ 20 KHz (1dB)
Distortion < 0.3 % (0.15 % typ.)
Signal-to-noise ratio
▪ typ. 115 dB (A)
rms
with 40 kHz deviation
▪ typ. 121 dB (A)
rms
with 56 kHz deviation
Led Led indication with bicolor led (red & green) on wireless power switch:
▪ Wireless transmission status: GREEN on/off ▪ Battery lifetime status: GREEN -
UsteadyU (> 25%)
-
Uslowly blinkingU (< 25%) - Uquickly blinkingU (<12%)
▪ Modulation peek (if activated): RED ▪ Ptt status: RED if active
Display High contrast OLED (Organic light-emitting diode) display (96 x 36 pixels)
8 step battery lifetime indication: 7
UbarsU (100%-87%-75%-63-50%-38%-25%) and “Uempty barU” quickly blinking (12%
remaining
)
PTT function Pin 3 of the AF connector can be setup to an external push button
Power supply 2 AA size batteries (Alkaline, rechargeable NiMH)
orking
Battery life
(2 AA alkaline)
▪ approx. 10 hours @ 50mW continuous working
▪ approx. 14 hours @ 10mW continuous w

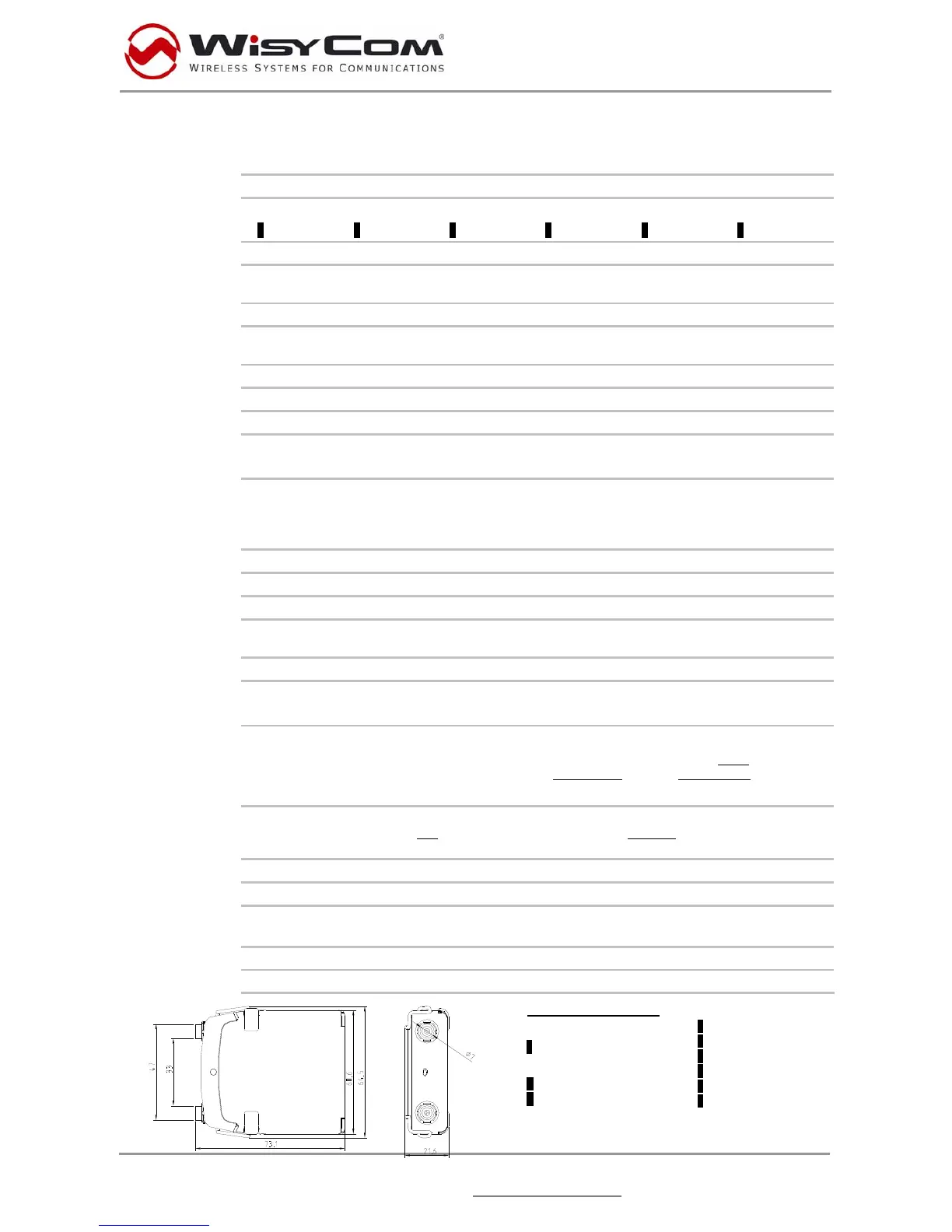

Dimensions th-Depth) 73 x 61 x 17.5 mm (Height-Wid
Weight Approx 80 g. without batteries
UOPTION CODE MTP3
