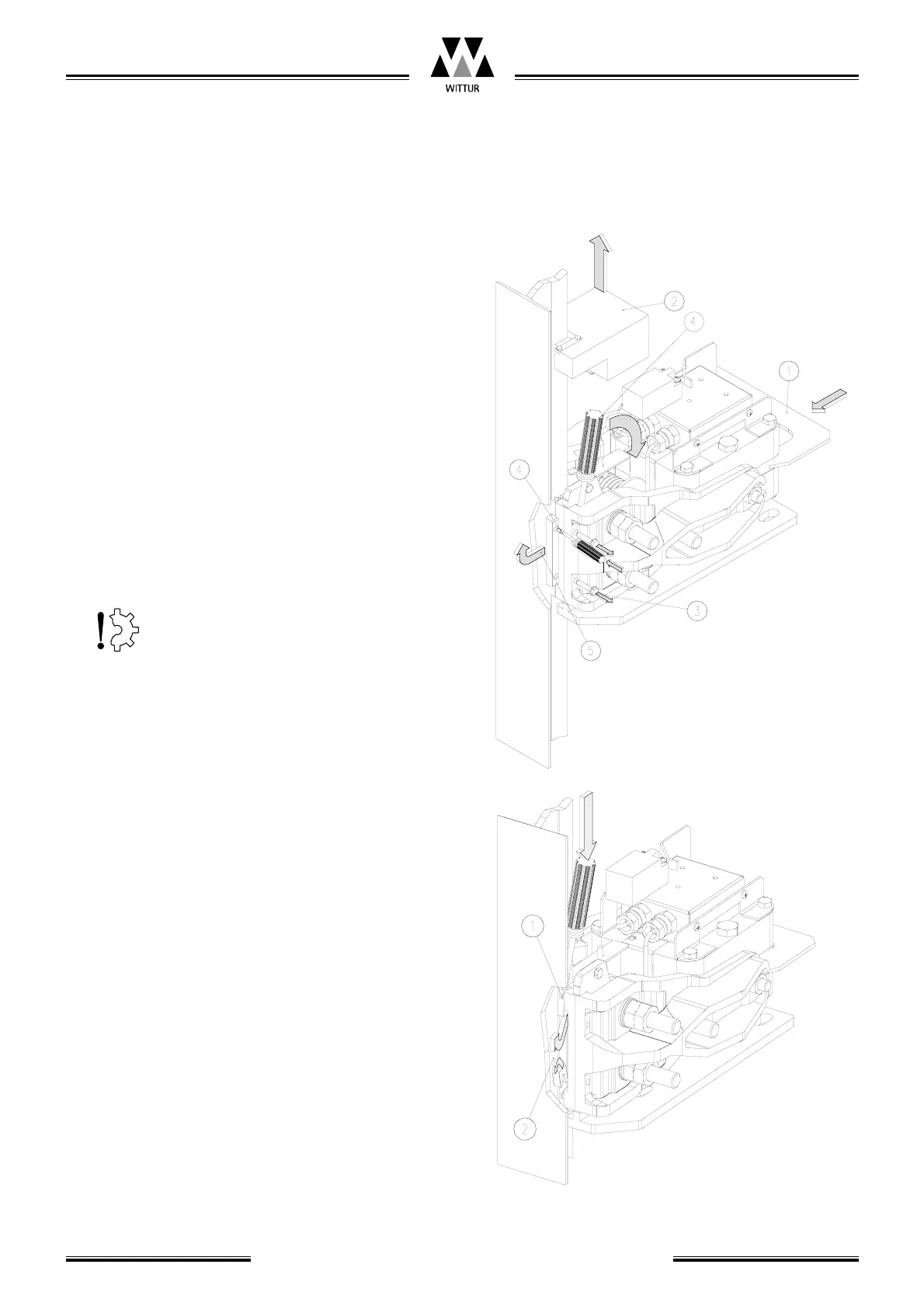

6.2.1 Checking and changing the brake shoe
(1) Put a clamp to the brake magnet to ensure
that the brake magnet will not release during
the brake shoe changing process
(2) Remove the Lubricator cup
(3) Open the M5 screws which are used to fix the
brake shoes
(4) Turn the brake shoes carefully out so that a
M5 hole comes visible and put some assisting
pin to the hole
DO NOT DROP the brake shoes to the shaft
as they are frag-ile hardened steel and may
be broken if dropped.
(5) Take the brake shoe out from the cutting it is
positioned in and check its condition. Change
if needed
6.2.2 Checking and changing the brake fork
sliding elements
(1) Push the upper sliding element downwards
along the guide rail and the lower one
upwards
(2) Take the parts out for examination by fingers
(3) Change if needed
Blatt/
sheet
D7AJMGB.015
Datum/
date
23.05.2002
Stand/
version
23.05.2002
Geprüft/
approved
WAT/MZE
THE LMC LIFTCOMPONENTS MANUFACTURING AND COMMERCE COMPANY
Änderungen vorbehalten! Subject to change without notice!
Braking System EBRA20
Operating instruction
