Wixey WR25 User Manual

Using the Gauge
1. Set the base of the Height Gauge on a flat reference surface and lower the scale until
it lightly touches the surface. Set the display to 0.000

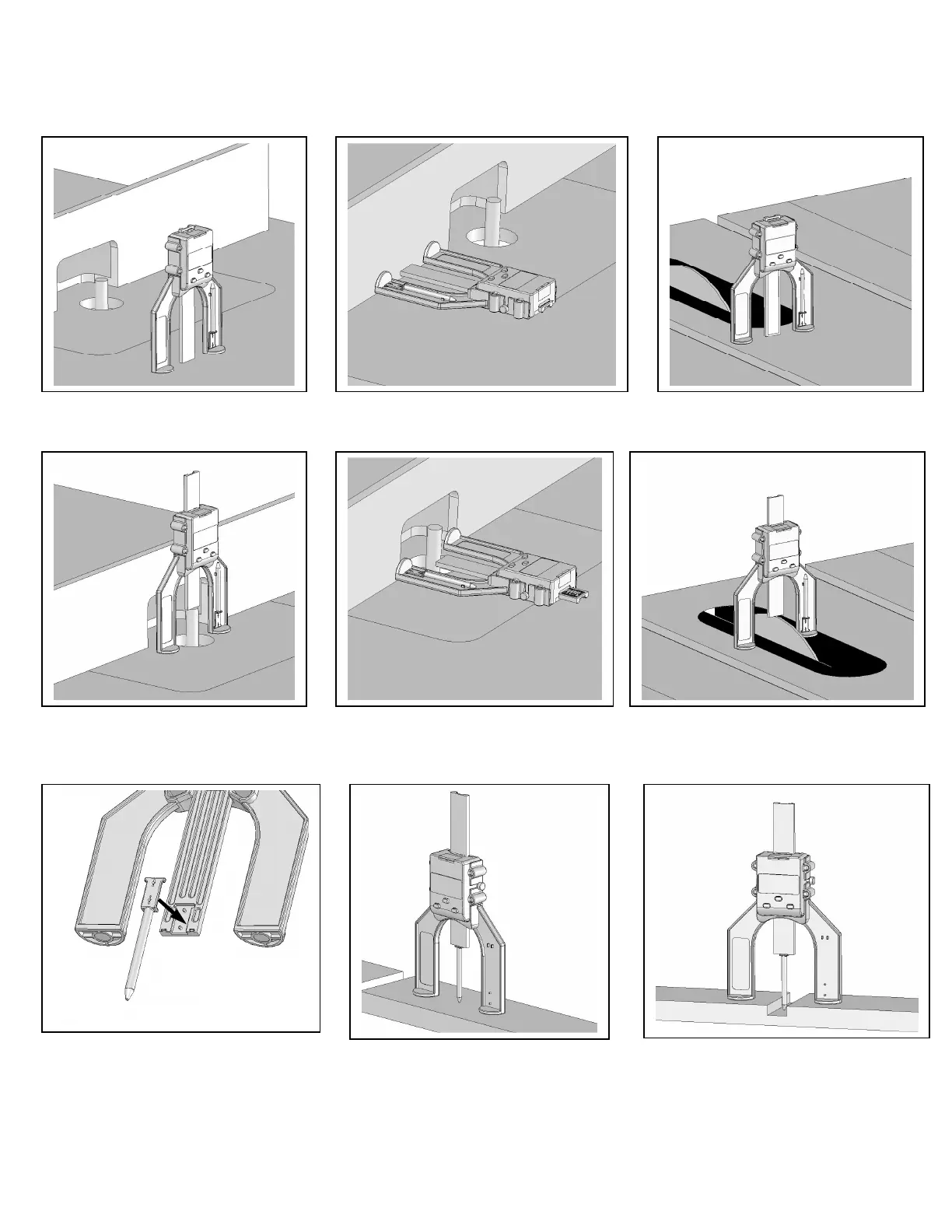

2. Set your or router bit or saw blades to the desired position as shown.
3. Install the plunger and zero the gauge for measuring depths as shown below
Barry Wixey Development
5306 Umbrella Pool Road
Sanibel, FL 33957
For more info on this and other Wixey products visit: www.wixey.com

Wixey WR25 Specifications

General

Brand	Wixey
Model	WR25
Category	Measuring Instruments
Language	English
