Wixey WR700 - Assemble Mounting Brackets and Slide Readout; Slide Readout onto Track; Select Readout and Track Mounting Location; Left Side Mount for Biesemeyer Fences

8 pages

To Next Page

To Previous Page

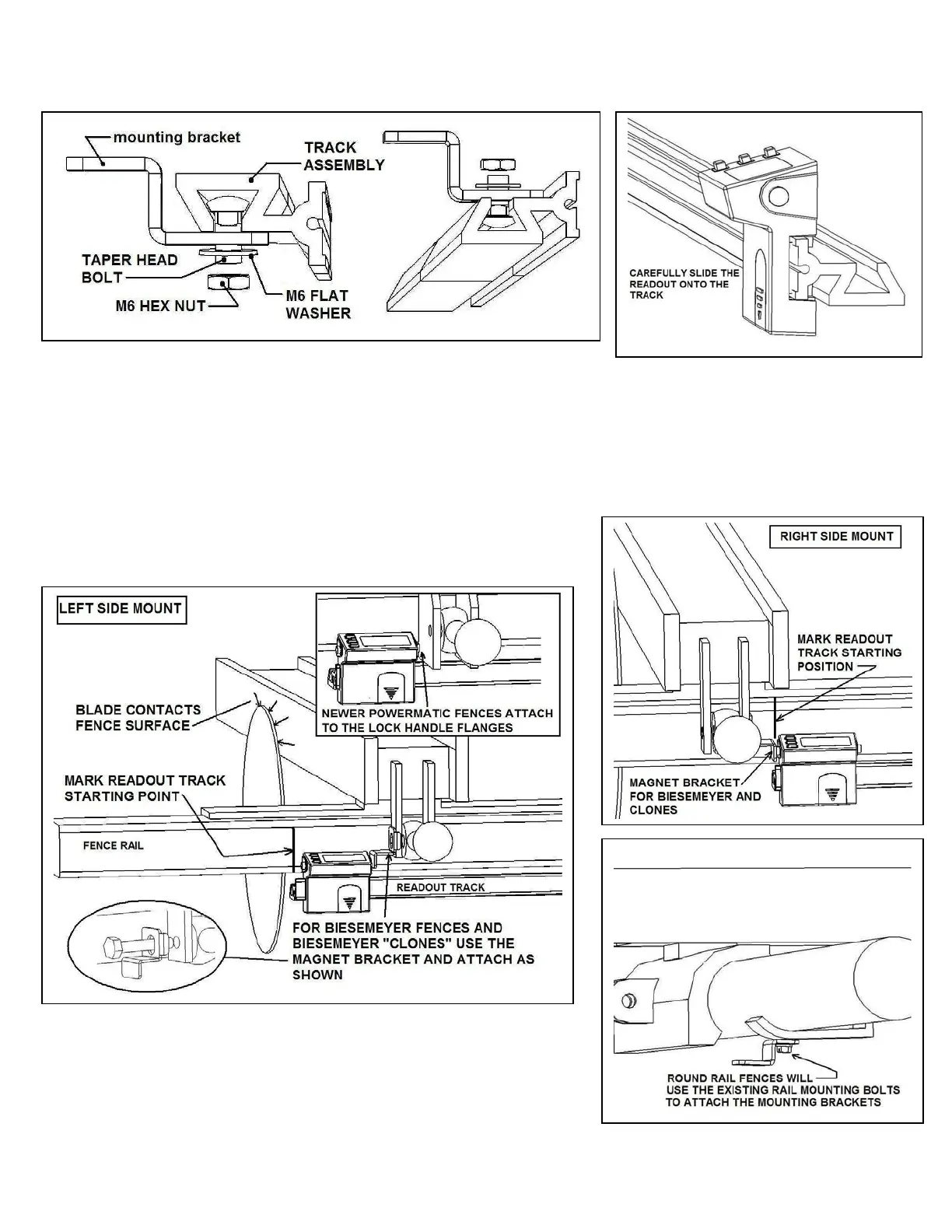

3- Loosely assemble the 4 mounting brackets to the track assembly and slide on

the readout

4- Select the readout and readout track mounting location

For measuring a full 60” to the right of the blade align the readout track as shown here:
