3

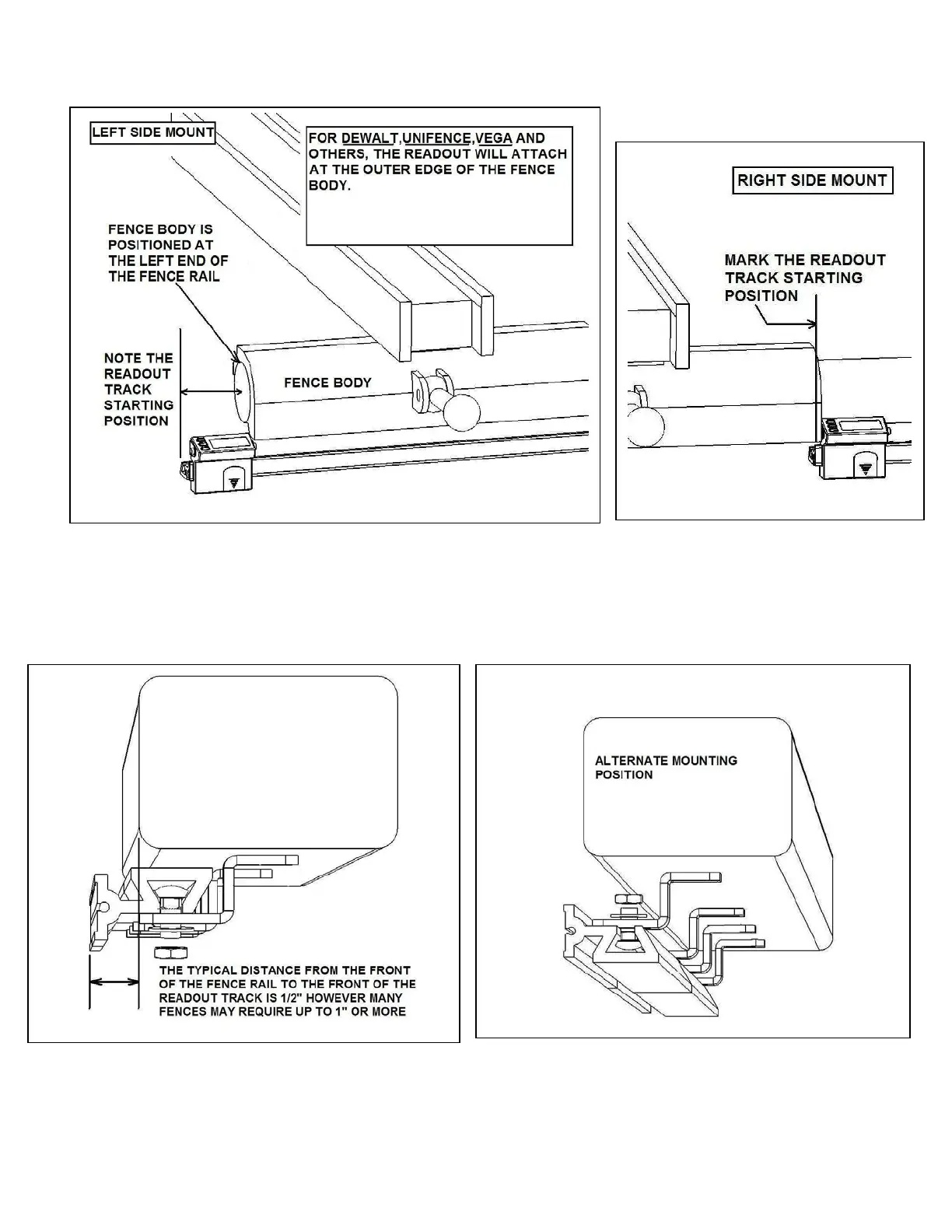

For shorter fences or measuring full left of blade and maximum to the right of blade,
align the readout track as shown here:
Note: If the readout track is too long it can be cut to length using a hack saw.
5- Position the mounting brackets on the bottom of the fence rail
Once positioned, properly mark the bottom of the fence rail where holes should be
drilled for attaching the mounting brackets. The bracket spacing along the bottom of the
fence rail is not critical but should be as evenly space as possible
