Wixey WR700 - Attach Mounting Brackets to Fence Rail; Drilling and Screw Installation; Thread Forming Screw Installation; Apply Sensor Strips to Track

4

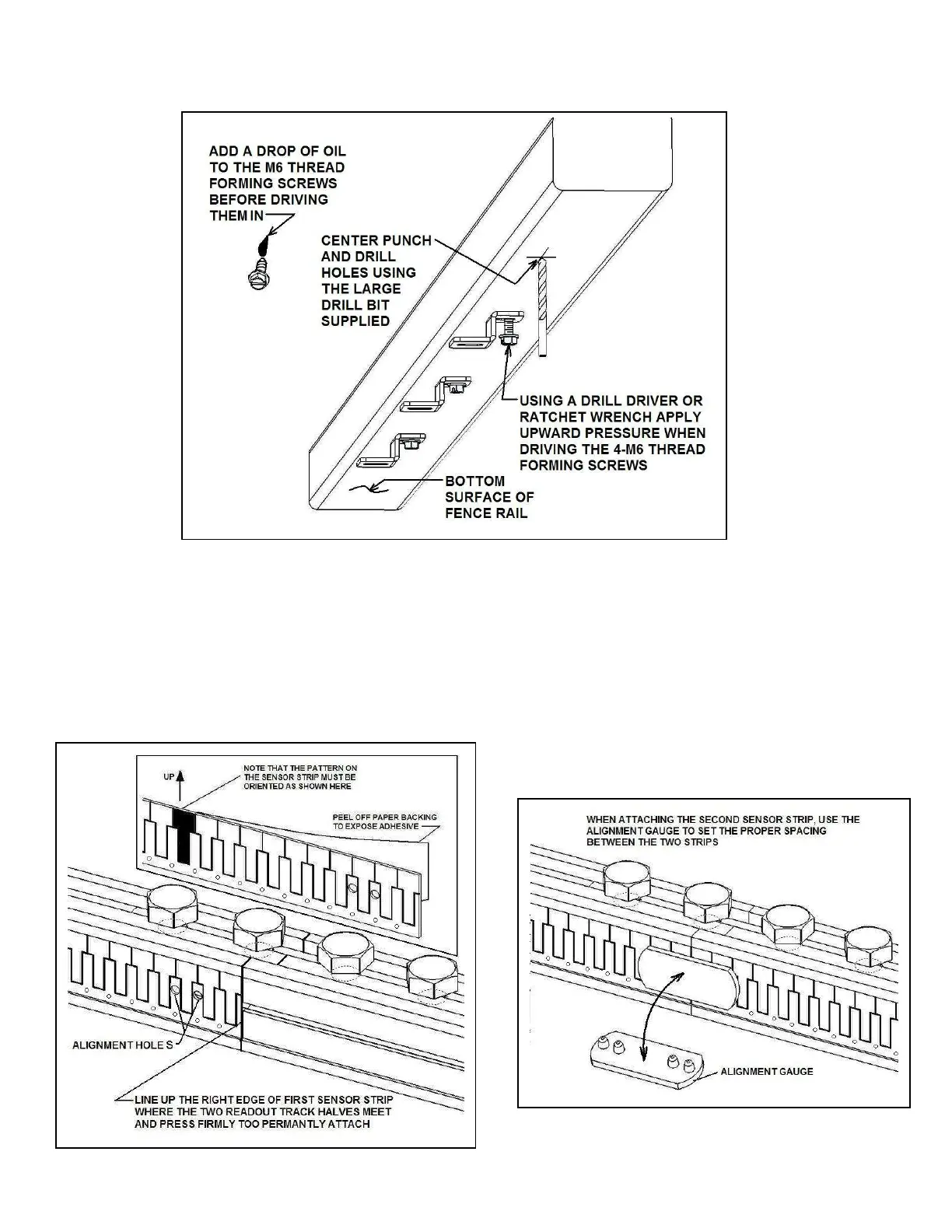

6- Attach the mounting brackets to the fence rail
7- Apply the sensor strips to the track as shown
Critical note: the arrow pointing “UP” in the diagram below means up toward the sky.
Regardless of the mounting position of the track onto your fence rail, the pattern must
be oriented “UP” as shown
