Wizard WAR500A - Page 23

23
5
10
7
8
9
11
12
13
15
2
10
16
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
2 73970500 Nut, Lock Hex Flange
5 102332X Bracket, Reinforcement
7 102173X Counter Weight, R.H.
8 10040600 Washer, Lock 3/8
9 73220600 Nut, Hex 3/8-16
10 74760524 Bolt, Hex 5/16-18 x 1-1/2
11 4497H Clip, Hairpin
12 126875X Rivet, Drilled
13 102190X Tire
150750 Rim
795R Tire Valve
15 - - - - - - - Engine, Briggs Model 120402
(Order parts from engine manufac-
turer)
16 7192J Tie Cable

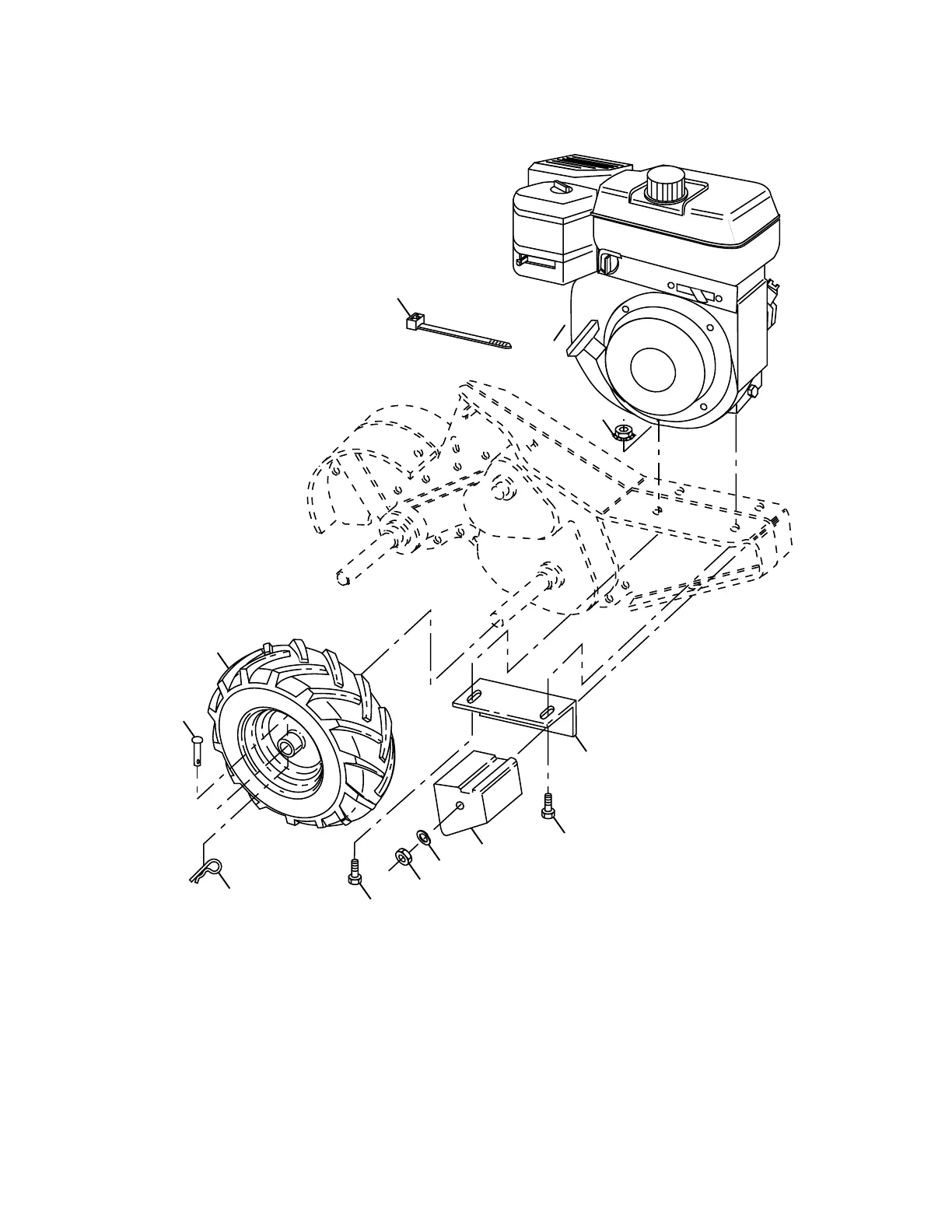

REPAIR PARTS
TILLER - - MODEL NUMBER WAR500A
MAINFRAME, RIGHT SIDE
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
For Parts Call K&T 606-678-9623 or 606-561-4983
www.mymowerparts.com
