WNC M14Q2F User Manual

12 / 33
□ Normal □ Internal Use  Confidential □ Restricted Confidential
User Manual
MDM_PS_HOLD
PS_HOLD
I
Force_USB_BOOT
Force_USB_BOOT_CONFIG
Force USB BOOT CONFIG
I

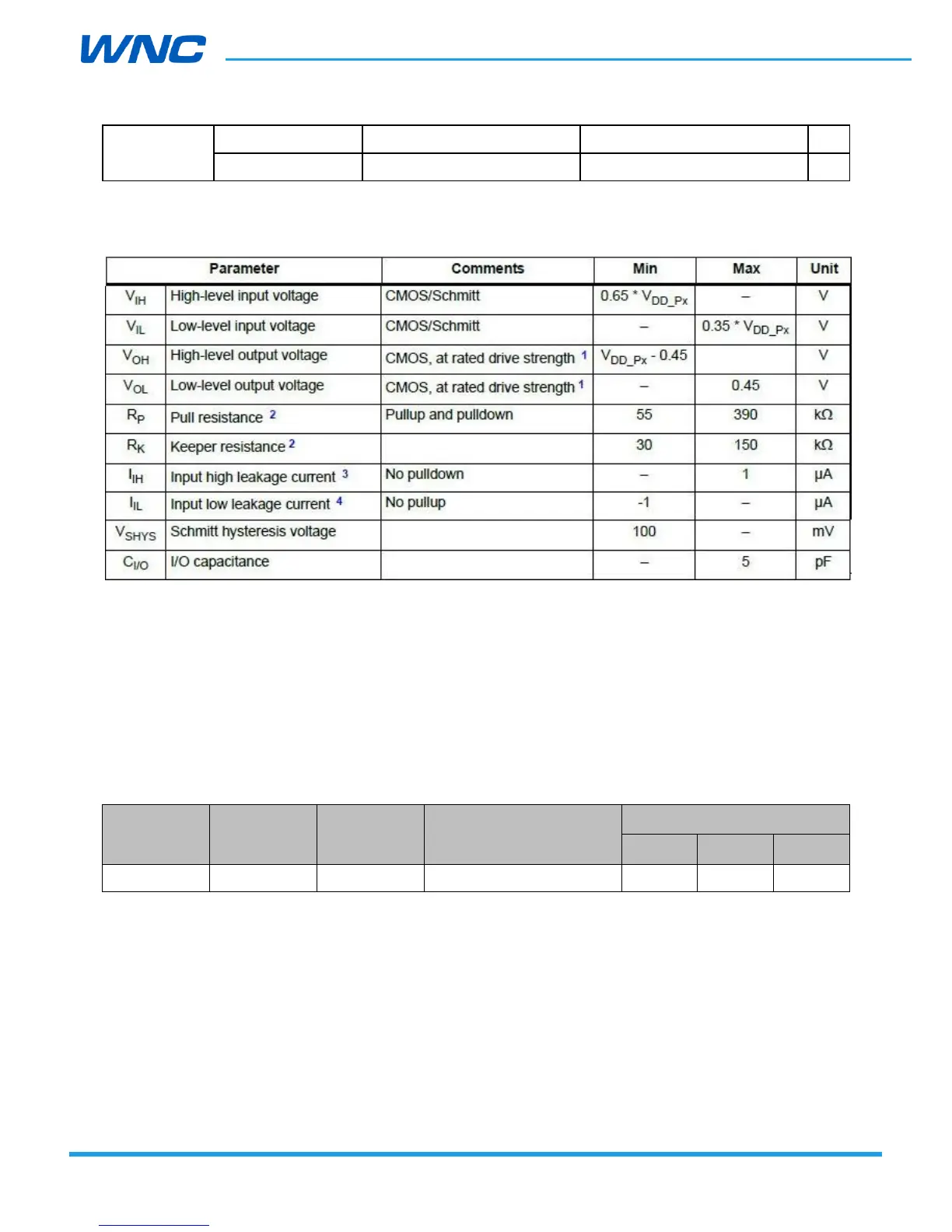

Table 2. Digital I/O characteristics
Note: This is preliminary data for reference and will be updated according to the final version of the
MDM9207 datasheet.
2.2. Power supply
LTE module power input is VCC. The internal power chipset will transfer VCC to other power level.
Table 3. Power supply specifications
Power
Pin Name
Pads
Description
Voltage Level (V)
Min.
Typ.
Max.
VCC
VCC1 to VCC6
Nos. 37 to 42
Main Power Supply
3.3
3.8
4.2
The M14Q2F includes an integrated power manager enabling single and direct voltage supply from the
battery, reducing the overall bill of materials.

WNC M14Q2F Specifications

General

Brand	WNC
Model	M14Q2F
Category	Control Unit
Language	English
