5. Mechanical and Environmental Certifications
5.1. PCBA Form Factor

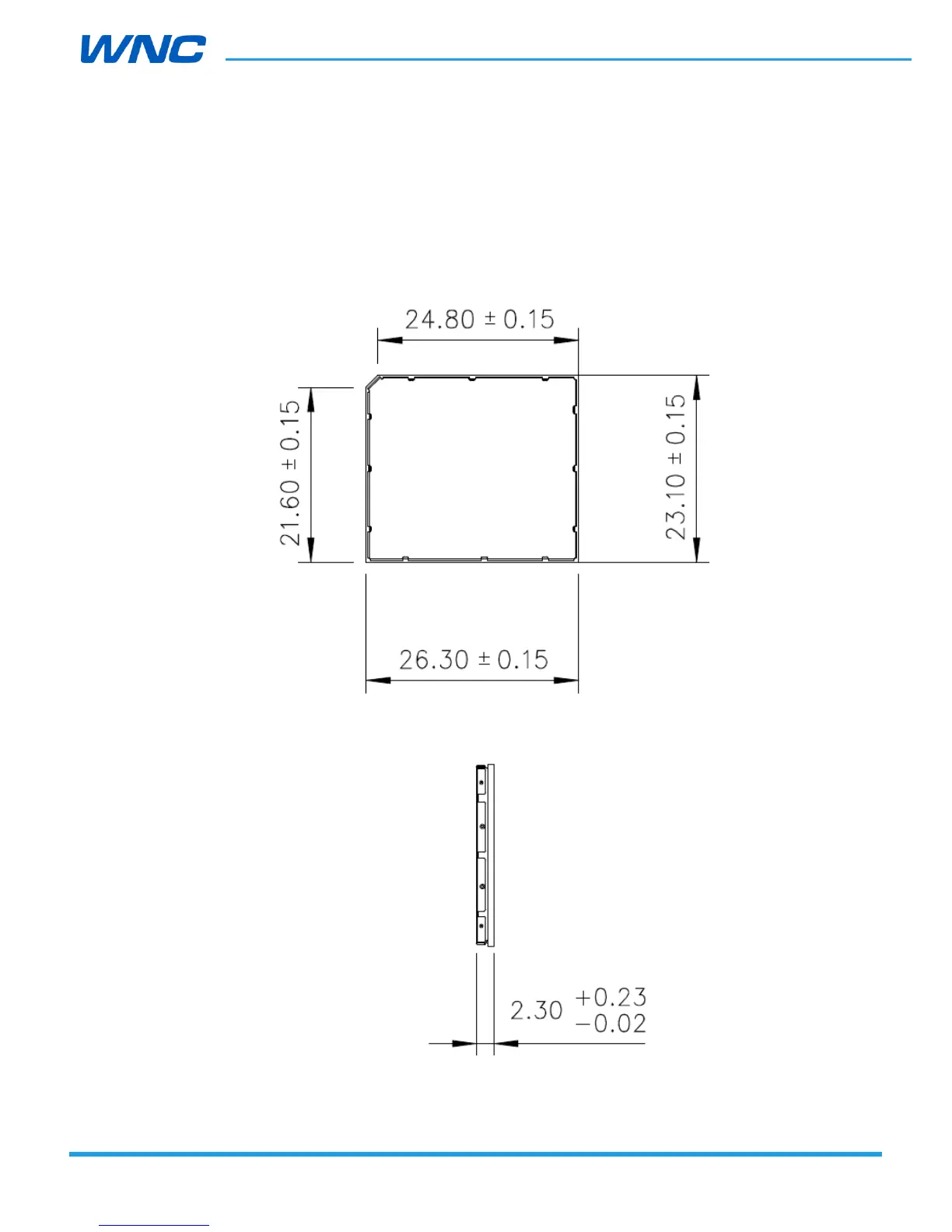

Dimensions 26.3 mm (typ.) × 23.1 mm (typ.) × 2.3 mm (typ.), tolerance: ± 0.15 mm
Top view
Right view
