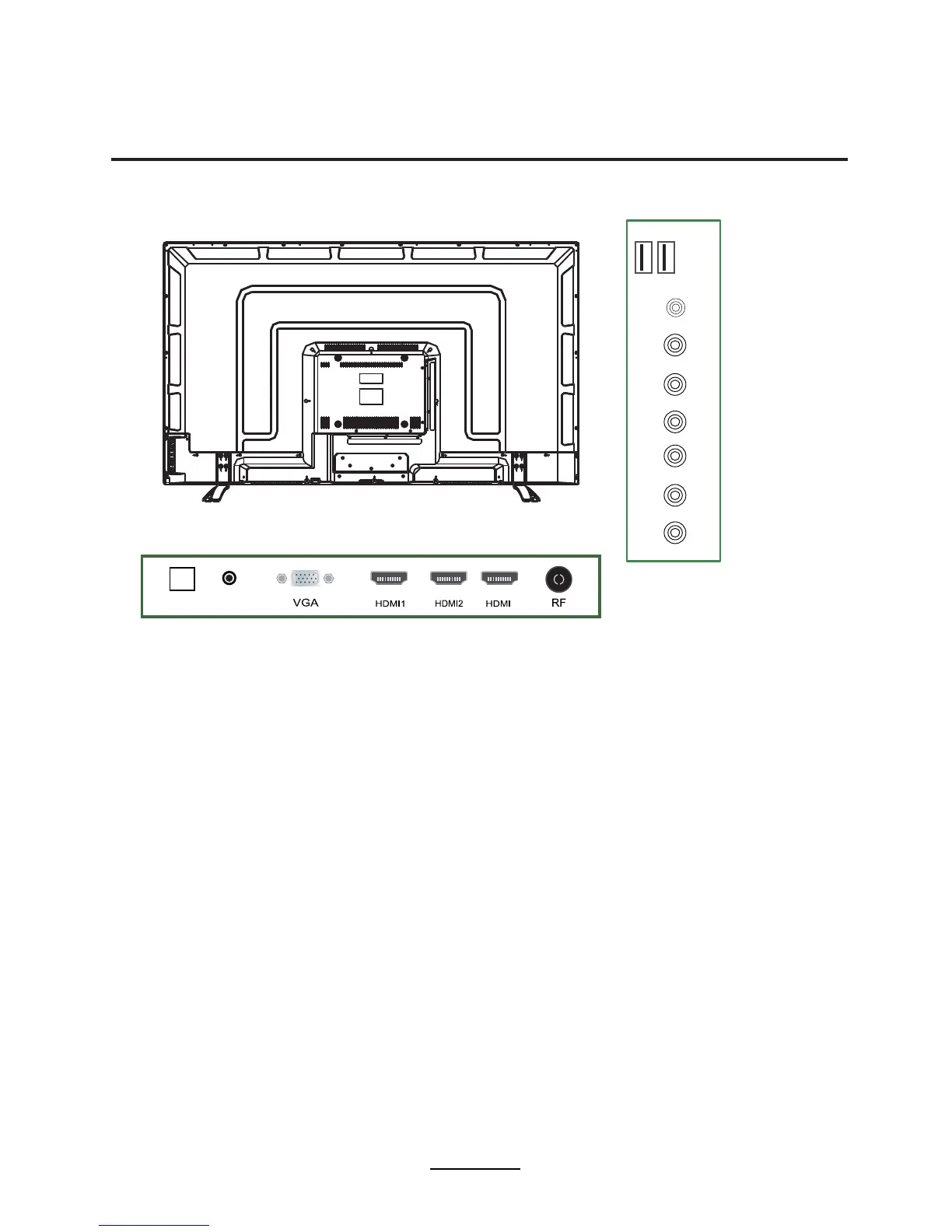

AC POWER IN: Connect to power.
HDMI1/2/3: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
Coax: Digital output to AV receiver.
RJ45: Connect the interface of the network card.
RF:Connect the antenna.
USB1/2:Connect to portable USB device.
YPbPr: Connect theYPbPr output jack of DVD or VCR.
Video: Connect to video intput terminal of external devices.
R/L: Connect to the audio intput terminal of external devices.(shared with YPbPr)
:
Connections
3
Video L in R in
PCRJ45 - in
USB2
USB1
COAX
YPbPr
